molex 207129 Series Calibration

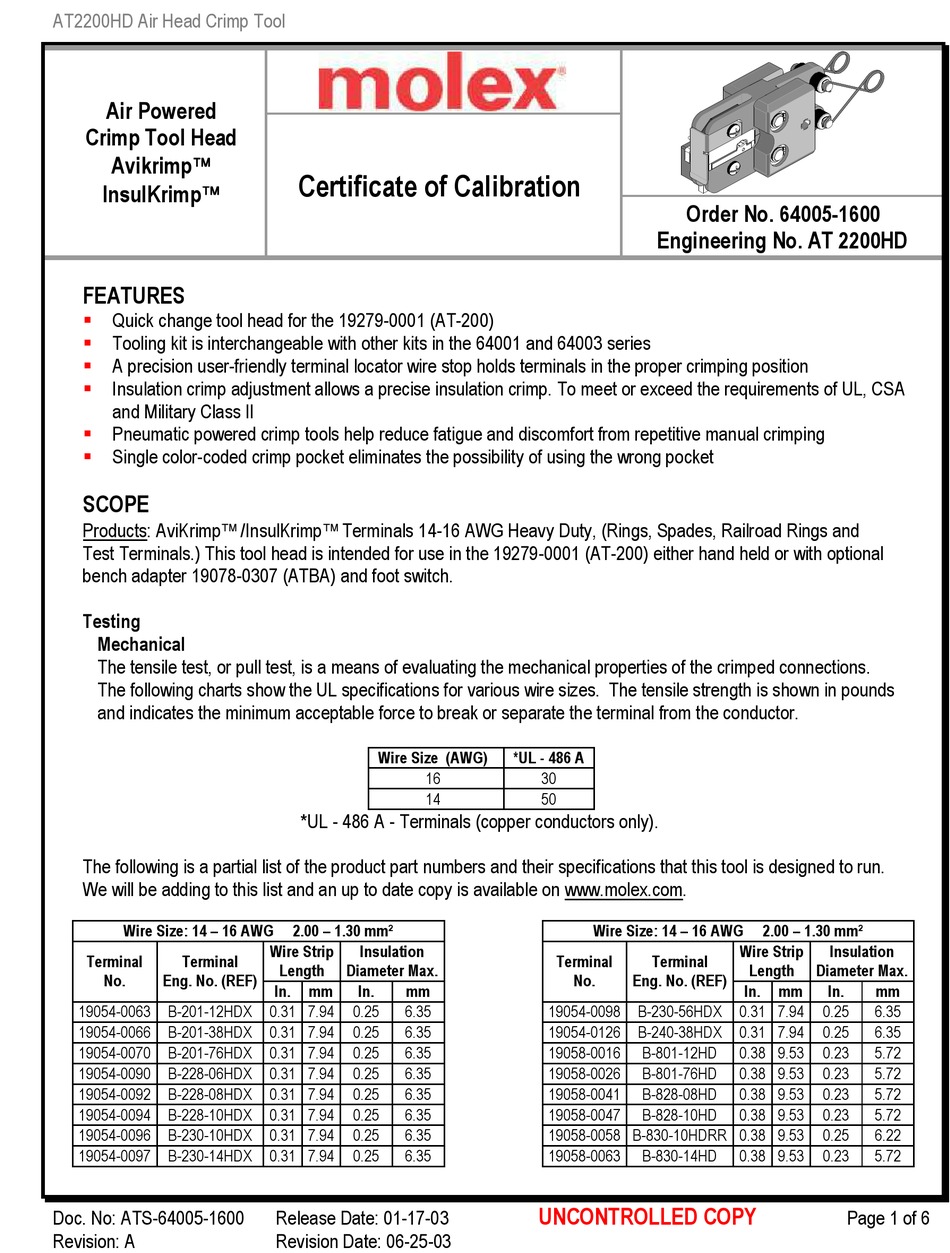

AT2200HD Air Head Crimp Tool
Air Powered
Crimp Tool Head
Avikrimp   
InsulKrimp   

FEATURES

Quick change tool head for the 19279-0001 (AT-200)
Tooling kit is interchangeable with other kits in the 64001 and 64003 series
A precision user-friendly terminal locator wire stop holds terminals in the proper crimping position
Insulation crimp adjustment allows a precise insulation crimp. To meet or exceed the requirements of UL, CSA
and Military Class II
Pneumatic powered crimp tools help reduce fatigue and discomfort from repetitive manual crimping
Single color-coded crimp pocket eliminates the possibility of using the wrong pocket

SCOPE

Products: AviKrimp /InsulKrimp Terminals 14-16 AWG Heavy Duty, (Rings, Spades, Railroad Rings and
Test Terminals.) This tool head is intended for use in the 19279-0001 (AT-200) either hand held or with optional
bench adapter 19078-0307 (ATBA) and foot switch.

Testing

Mechanical
The tensile test, or pull test, is a means of evaluating the mechanical properties of the crimped connections.
The following charts show the UL specifications for various wire sizes. The tensile strength is shown in pounds
and indicates the minimum acceptable force to break or separate the terminal from the conductor.
The following is a partial list of the product part numbers and their specifications that this tool is designed to run.
We will be adding to this list and an up to date copy is available on www.molex.com.
Wire Size: 14 – 16 AWG
Terminal Terminal
No. Eng. No. (REF)
19054-0063 B-201-12HDX
19054-0066 B-201-38HDX
19054-0070 B-201-76HDX
19054-0090 B-228-06HDX
19054-0092 B-228-08HDX
19054-0094 B-228-10HDX
19054-0096 B-230-10HDX
19054-0097 B-230-14HDX
Doc. No: ATS-64005-1600
Revision: A
Certificate Of Calibration
Wire Size (AWG)
16
14
*UL - 486 A - Terminals (copper conductors only).
2.00 – 1.30 mm²
Wire Strip Insulation
Length Diameter Max.
In. mm In. mm
0.31 7.94 0.25 6.35
0.31 7.94 0.25 6.35
0.31 7.94 0.25 6.35
0.31 7.94 0.25 6.35
0.31 7.94 0.25 6.35
0.31 7.94 0.25 6.35
0.31 7.94 0.25 6.35
0.31 7.94 0.25 6.35
Release Date: 01-17-03
Revision Date: 06-25-03
Order No. 64005-1600
Engineering No. AT 2200HD
*UL - 486 A
30
50
Wire Size: 14 – 16 AWG
Terminal Terminal
No. Eng. No. (REF)
19054-0098 B-230-56HDX
19054-0126 B-240-38HDX
19058-0016 B-801-12HD
19058-0026 B-801-76HD
19058-0041 B-828-08HD
19058-0047 B-828-10HD
19058-0058 B-830-10HDRR 0.38 9.53
19058-0063 B-830-14HD
