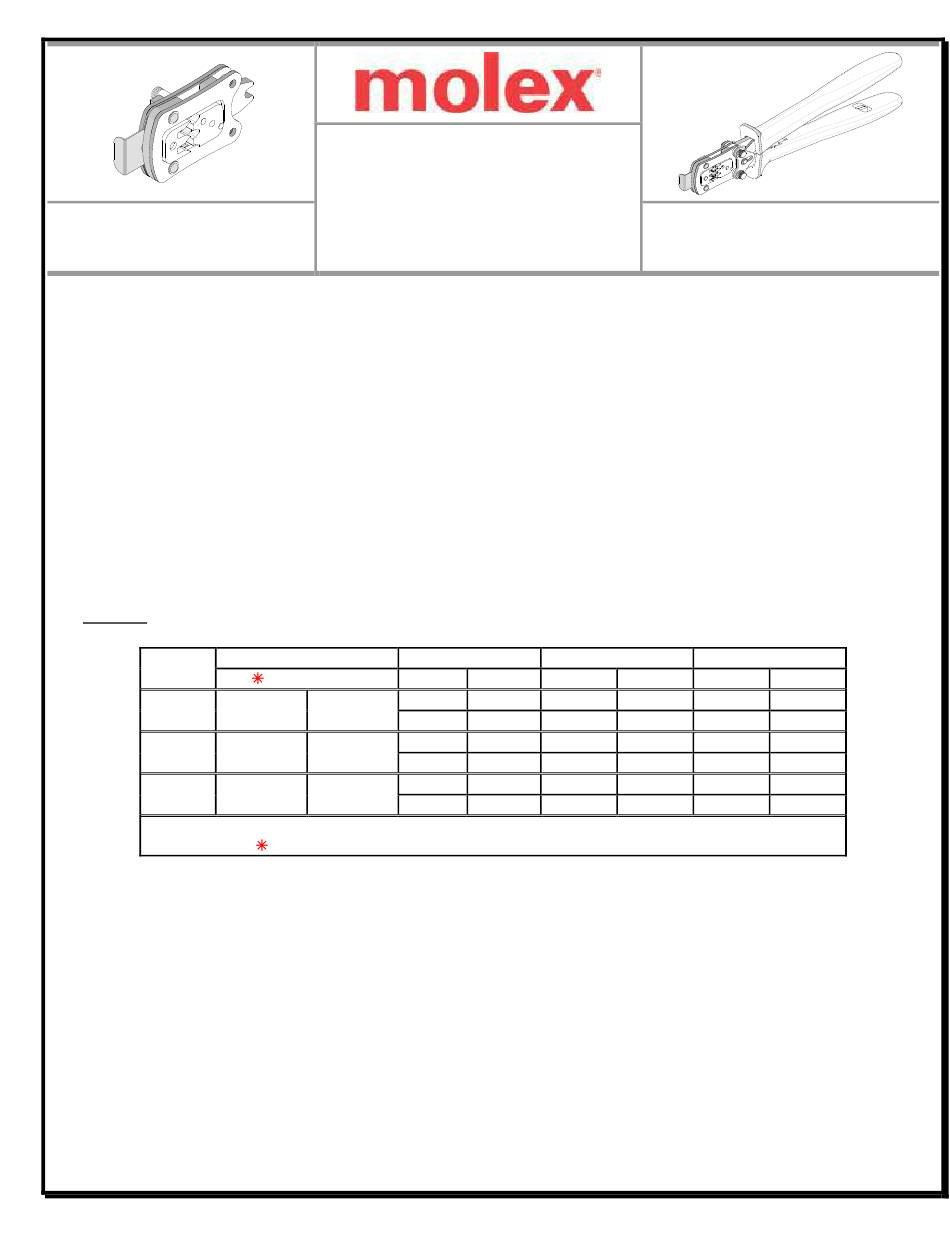

Hand Crimp Tool for MX150 ISO (M3) Blade Terminals
Modular Crimp Head
Order No. 63823-3670

FEATURES

A full cycle ratcheting hand tool ensures complete crimps
%
Ergonomically designed soft handles
%
Precisely designed crimping profiles with simple contact positioning
%
Easy handling due to outstanding force ratio
%
Modular Crimp Head is removable and can be use in the Air Powered Tool Order No.63816-0100,
%
accompanied by Air Powered Crimp Adapter (Order No. 63816-0700).
Can also be used in the Battery Powered Tool Order No.63816-0200 (110 V) or 63816-0250 (220 V),
%
accompanied by Battery Powered Crimp Adapter (Order No. 63816-0600).

SCOPE

Products: MX150 ISO (M3) Blade Terminals for 0.35mm
Terminal
Series
33000
33000-0004
33011-0008
33011
33011-1008
34781
34781-0004
Doc No: ATS-6382336HM
Revision: A
Application Tooling
Specification Sheet
Terminal Order No.
Wire Size and Type
Reel Form only
mm²
0.35
33000-1004
0.50
0.35
33011-2004
33011-3004
0.50
0.35
34781-1004
0.50
Terminals were validated per USCAR-21 using the ISO 6722 wire specifications.
Customer to cut off terminal from reel: 0.50mm (.020") maximum Cut-off Tab.
Release Date: 08-05-11
Revision Date: 08-05-11
2
and 0.50mm2 ISO wires.
Insulation Diameter
Type
mm
In.
ISO
1.20-1.40
.047-.055
ISO
1.40-1.70
.055-.067
ISO
1.20-1.40
.047-.055
ISO
1.40-1.70
.055-.067
ISO
1.20-1.40
.047-.055
ISO
1.40-1.70
.055-.067
UNCONTROLLED COPY
TYPE 4A
Hand Crimp Tool
Order No. 63823-3600
Strip Length
mm
In.
4.70-5.60
.185-.220
4.70-5.60
.185-.220
4.70-5.60
.185-.220
4.70-5.60
.185-.220
4.70-5.60
.185-.220
4.70-5.60
.185-.220
Page 1 of 6
