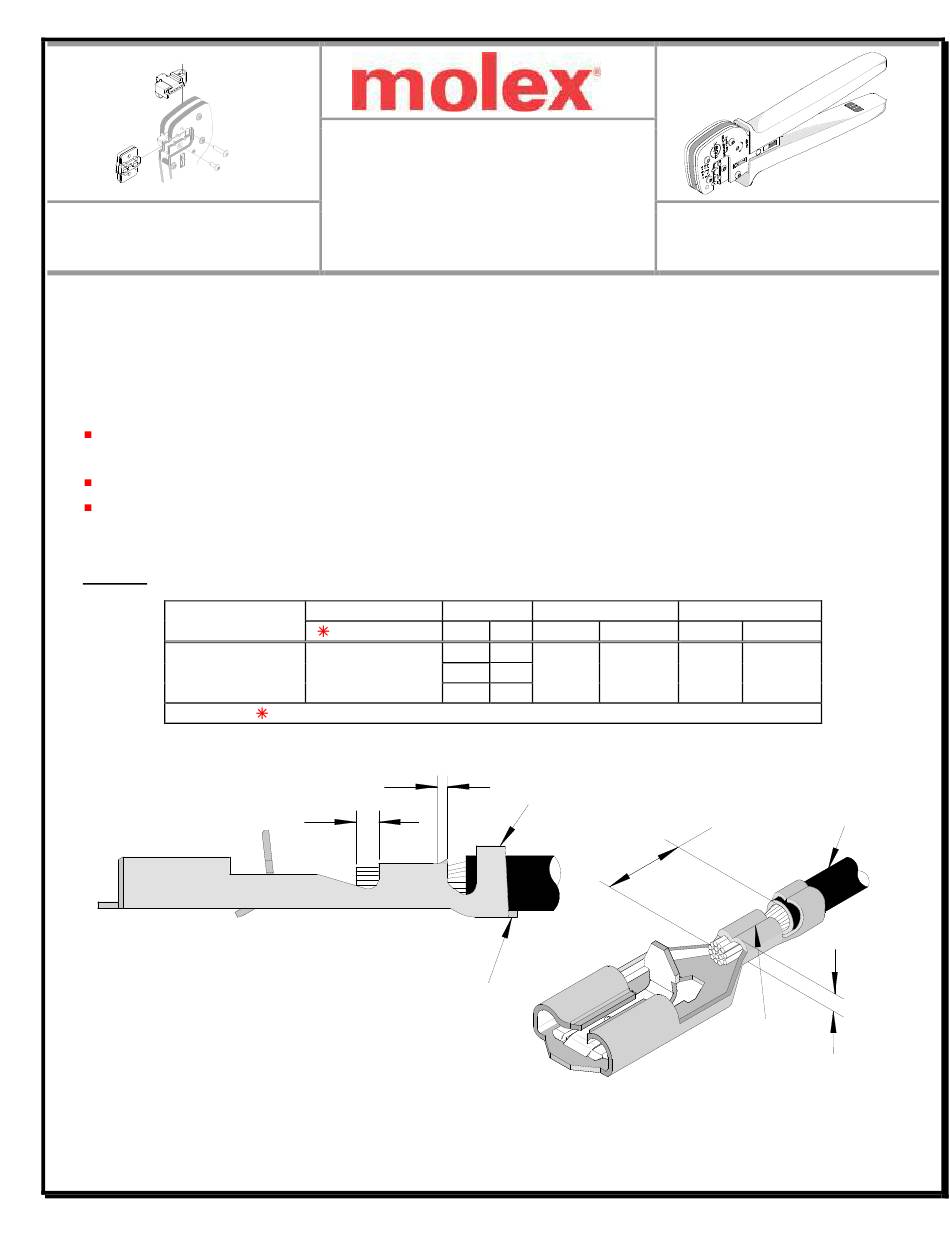

Tool Kit for 250 MP-Lock Terminal
Tool Kit
Order No. 63819-6470
FEATURES
A full cycle ratcheting hand tool ensures complete crimps
%
Ergonomically designed soft handles
%
Precisely designed crimping profiles with simple contact positioning
%
Easy handling due to outstanding force ratio
%
Tool kits are easily installed into the Hand Crimp Tool or the 63816-0300 Power Crimp Head which is installed
into the 63816-0200 (110 V) or the 63816-0250 (220 V) Battery Powered Tool.
Many different Tool kits can be used with a single Battery Powered Tool.
This tool is IPC/WHMA-A-620 Class 2 and RoHS compliant.
SCOPE
Products: .250 MP-Lock Terminals for 14 – 18 AWG Wire.
Terminal Series No.
35072
DEFINITION OF TERMS
The above terminal drawing is a generic terminal representation. It is not an image of a terminal listed in the
scope.
Doc No: ATS-6381964HM Release Date: 09-20-10
Revision: B
Application Tooling
Specification Sheet
Terminal Order No.
Reel Form Only
35072-9802
Customer to cut off terminal from reel: 0.50mm (.020") maximum Cut-off Tab.
BELL MOUTH
BRUSH
Revision Date: 09-20-10
Wire Size
Insulation Diameter
AWG mm²
mm
14
2.21
16
1.31
2.2 – 3.4 .086 - .133 5.0 - 5.6 .197 - .220
18
0.81
INSULATION
CRIMP
CUT-OFF
TAB
UNCONTROLLED COPY
Hand Crimp Tool
Order No. 63819-6400
Strip Length
In.
mm
In.
STRIP
LENGTH
SEAM
CONDUCTOR
CRIMP HEIGHT
TYPE 4C
WIRE
Page 1 of 8

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 207129 Series and is the answer not in the manual?

Questions and answers

Related Manuals for molex 207129 Series

Summary of Contents for molex 207129 Series

  • Page 1 Tool Kit for 250 MP-Lock Terminal TYPE 4C Application Tooling Specification Sheet Tool Kit Hand Crimp Tool Order No. 63819-6470 Order No. 63819-6400 FEATURES A full cycle ratcheting hand tool ensures complete crimps Ergonomically designed soft handles Precisely designed crimping profiles with simple contact positioning Easy handling due to outstanding force ratio Tool kits are easily installed into the Hand Crimp Tool or the 63816-0300 Power Crimp Head which is installed into the 63816-0200 (110 V) or the 63816-0250 (220 V) Battery Powered Tool.

  • Page 2: Installation

    Pull Force value must exceed the minimum pull force specifications listed. CAUTION: Install only Molex terminals listed above with this tool. Do not crimp hardened objects as damage can occur to the tool or die.

  • Page 3: Operation

    Tool Kit for 250 MP-Lock Terminal Locator Installation and Removal Follow the steps below to install or replace the locator. See Figure 2. To install the locator 1. Position the locator with the hole over the brass pivot shaft and snap it into place. To remove the locator 1.

  • Page 4: Maintenance

    Tool Kit for 250 MP-Lock Terminal 9. Compress the terminal by squeezing the tool handles until the ratchet mechanism cycle has been completed. Release handles to open the jaws. 10. Remove the crimped terminal from the terminal locator by pressing down on the wire stop and gently pulling on the wire.

  • Page 5: Warranty

    12.7mm (1/2”) long, so there is no crimping of the insulation. Pull the terminal and wire at a rate no faster than 25mm (1.00”) per minute. See the Molex web site for the Quality Crimp Handbook for more information on pull testing.
  • Page 6 Tool Kit for 250 MP-Lock Terminal The chart below shows all applications for this Tool Kit. Tool Kit Tool Tool Power Head Adapter Figure Order No. Order no. Description Order No. Description 63810-1050 Hand Crimp Frame (Short) 63810-1000 Hand Crimp Frame (Long) 63819-6470 63816-0200 Battery Power Tool (110 V) 63816-0300 Power Crimp Head 63816-0250 Battery Power Tool (220 V) 63816-0300 Power Crimp Head...

  • Page 7: Hand Tool Parts List

    Tool Kit for 250 MP-Lock Terminal HAND TOOL PARTS LIST Item Number Order Number Description Quantity 63810-1000 Hand Crimp Frame (Long) 63819-6470 Tool Kit with Locator 63811-4773 Locator Base 63819-6475 Locator (only) M4 X 8mm LONG BHCS RATCHET RELEASE SCREW WITH TOOL KIT LOCATOR ONLY M4 X 10mm...

  • Page 8: Power Head Parts List

    Power Crimp Head 63819-6470 63819-6470 Tool Kit M4 by 8 Long BHCS M4 by 18 Long BHCS M4 by 10 Long BHCS Figure 12 http://www.molex.com UNCONTROLLED COPY Doc No: ATS-6381964HM Release Date: 09-20-10 Page 8 of 8 Revision: B Revision Date: 09-20-10...
