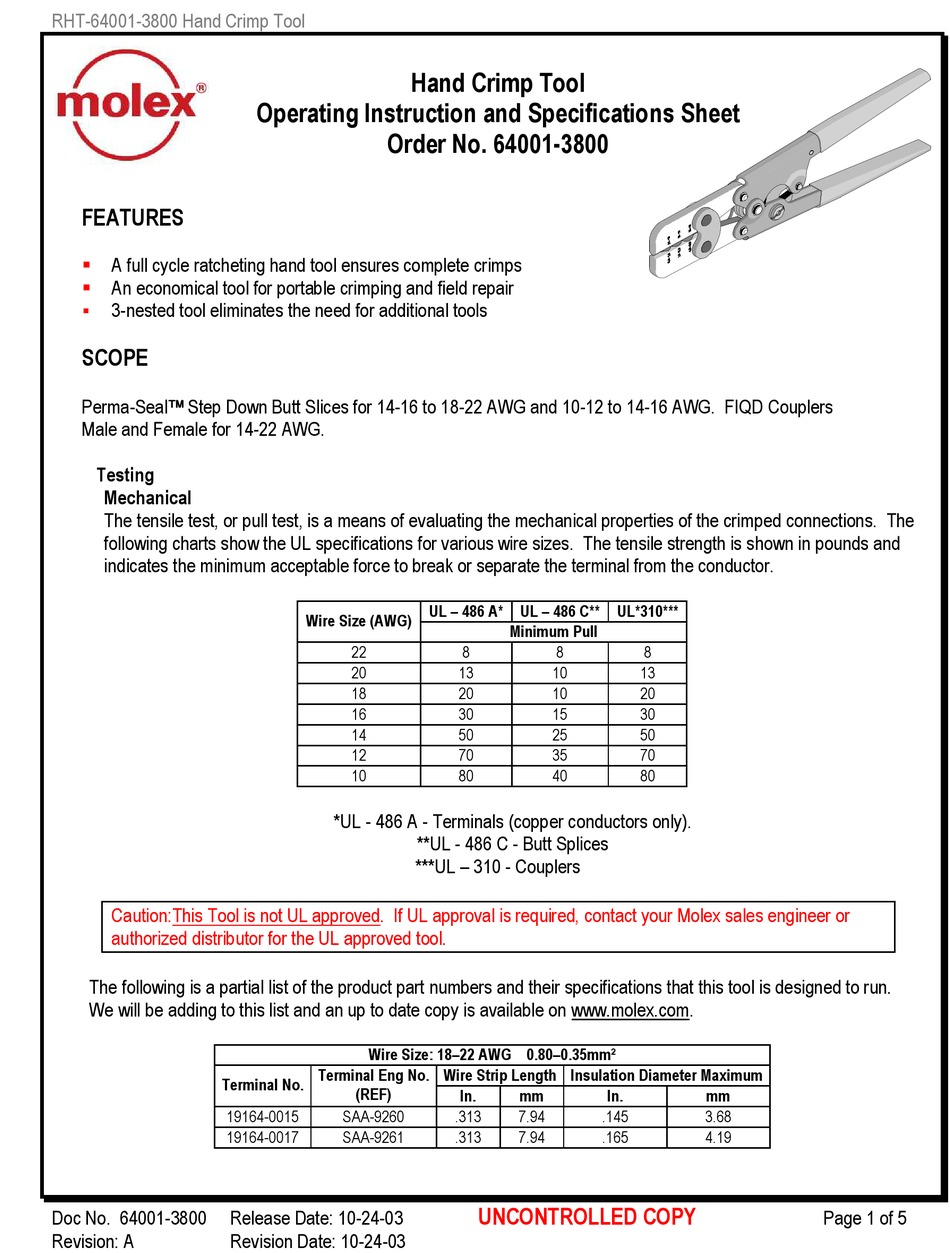

molex 207129 Series Operating Instruction And Specifications Sheet

RHT-64001-3800 Hand Crimp Tool
FEATURES
A full cycle ratcheting hand tool ensures complete crimps
An economical tool for portable crimping and field repair
3-nested tool eliminates the need for additional tools
SCOPE
Perma-Seal    Step Down Butt Slices for 14-16 to 18-22 AWG and 10-12 to 14-16 AWG. FIQD Couplers
Male and Female for 14-22 AWG.
Testing
Mechanical
The tensile test, or pull test, is a means of evaluating the mechanical properties of the crimped connections. The
following charts show the UL specifications for various wire sizes. The tensile strength is shown in pounds and
indicates the minimum acceptable force to break or separate the terminal from the conductor.
Caution:This Tool is not UL approved. If UL approval is required, contact your Molex sales engineer or
authorized distributor for the UL approved tool.
The following is a partial list of the product part numbers and their specifications that this tool is designed to run.
We will be adding to this list and an up to date copy is available on www.molex.com.
Terminal No.
19164-0015
19164-0017
Doc No. 64001-3800 Release Date: 10-24-03
Revision: A Revision Date: 10-24-03
Hand Crimp Tool
Operating Instruction and Specifications Sheet
Order No. 64001-3800
UL – 486 A* UL – 486 C** UL*310***
Wire Size (AWG)
22
20
18
16
14
12
10
*UL - 486 A - Terminals (copper conductors only).
**UL - 486 C - Butt Splices
***UL – 310 - Couplers
Wire Size: 18–22 AWG 0.80–0.35mm²
Terminal Eng No.
(REF)
SAA-9260
SAA-9261
Minimum Pull
8 8
13 10
20 10
30 15
50 25
70 35
80 40
Wire Strip Length Insulation Diameter Maximum
In. mm In.
.313 7.94 .145
.313 7.94 .165
UNCONTROLLED COPY
8
13
20
30
50
70
80
mm
3.68
4.19
Page 1 of 5
