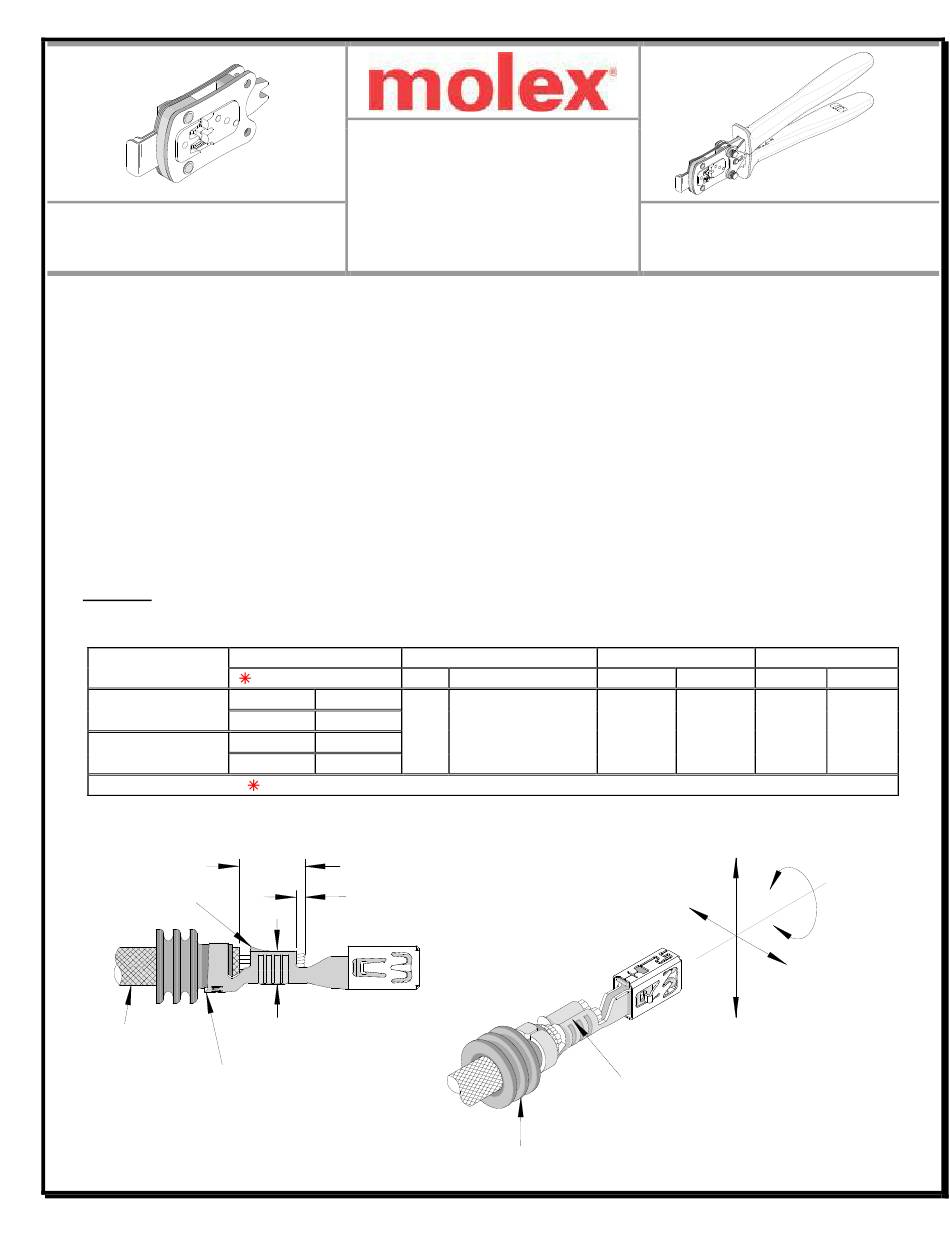

Hand Crimp Tool for CP 2.8 Receptacle Crimp Terminals
Modular Crimp Head
Order No. 63811-9870
FEATURES
A full cycle ratcheting hand tool ensures complete crimps
%
Ergonomically designed soft handles
%
Precisely designed crimping profiles with simple contact positioning
%
Easy handling due to outstanding force ratio
%
Modular Crimp Head is removable and can be use in the Air Powered Tool Order No.63816-0100,
%
accompanied by Air Powered Crimp Adapter (Order No. 63816-0700).
Can also be used in the Battery Powered Tool Order No.63816-0200 (110 V) or 63816-0250 (220 V),
%
accompanied by Battery Powered Crimp Adapter (Order No. 63816-0600).
SCOPE
Products: CP 2.8 receptacle for 2.5 – 3.0 mm
CMC Wire Seal Grey Receptacle.
Terminal Series No.
98910
64324
DEFINITION OF TERMS
BELL MOUTH
WIRE
CUT-OFF
TAB
Doc No: ATS-6381198HM
Revision: C
Application Tooling
Specification Sheet
2
Terminal Order No.
Available in Reel only AWG
98910-1029 98910-1129
98910-2029 98910-2129
64324-1029 64324-1129
64324-2029 64324-2129
Customer to cut off terminal from reel: 0.30mm (.012") maximum Cut-off Tab.
STRIP LENGTH
CONDUCTOR
BRUSH
CONDUCTOR
CRIMP
Release Date: 07-25-08
Revision Date: 11-22-10
type ID and IR wire with 2.80mm (.110"),
Wire Size and Type
mm²
---
2.5 – 3.0 Type ID & IR 2.65 - 3.45 .104 - .136 4.90-5.10 .193-.201
SEAL
UNCONTROLLED COPY
Hand Crimp Tool
Order No. 63811-9800
Insulation Diameter
mm
In.
mm
BEND UP
TWISTING
BEND
DOWN
SEAM
TYPE 4A
Strip Length
In.
ROLLING
Page 1 of 6
