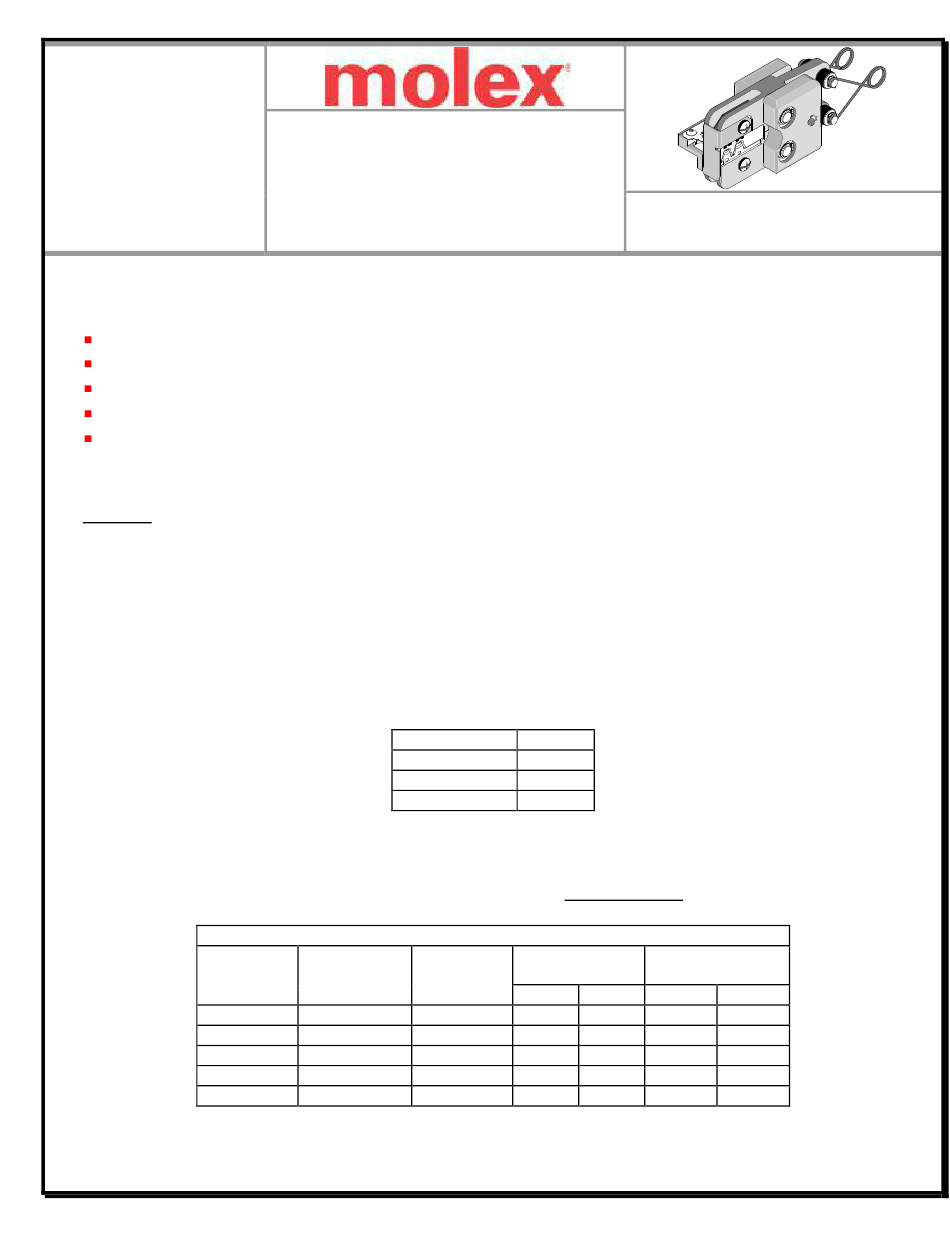

AT 4755 Air Crimp Tool Head
Air Powered
Crimp Tool Head
VibraKrimp   

FEATURES

Quick change tool head for the 19279-0001 (AT-200)
Tooling kit is interchangeable with other kits in the 64001 and 64003 Series
A precision user-friendly terminal locator wire stop holds terminals in the proper crimping position.
Insulation crimp adjustment allows a precise insulation crimp.
Pneumatic powered crimp tools help reduce fatigue and discomfort from repetitive manual crimping.

SCOPE

Products: Vibrakrimp™ Female Non-Insulated Standard Quick Disconnects, 12-16 AWG. This tool head is
intended for use in the 19279-0001 (AT-200) either hand held or with optional bench adapter 19078-0307 (ATBA)
and foot switch.

Testing

Mechanical
The tensile test, or pull test, is a means of evaluating the mechanical properties of the crimped connections.
The following charts show the UL specifications for various wire sizes. The tensile strength is shown in
pounds and indicates the minimum acceptable force to break or separate the terminal from the conductor.
The following is a partial list of the product part numbers and their specifications that this tool is designed to run.
We will be adding to this list and an up to date copy is available on www.molex.com.
Terminal No.
190180011
190180012
190180014
190180016
190180017
Doc. No: ATS-640077300
Revision: C
Application Tooling
Specification Sheet
Wire Size (AWG)
*UL – 310 – Quick Disconnects
Wire Size: 14-16 AWG 2.00 –1.30mm
Terminal
Terminal No.
Eng. No. (REF)
Mylar Tape
BB-4174
190180013
BB-4174-032
BB-4177
190180015
BB-4181
BB-4181-032
190180018
Release Date: 02-13-07
Revision Date: 06-11-07
*UL - 310
16
30
14
50
12
70
2
Wire Strip Length
In.
mm
.220
5.56
.220
5.56
.220
5.56
.220
5.56
.220
5.56
UNCONTROLLED COPY
Order No. 64007-7300
Engineering No. AT 4755
Insulation Diameter
Maximum
In.
mm
.145
3.68
.145
3.68
.145
3.68
.145
3.68
.145
3.68
Page 1 of 6
