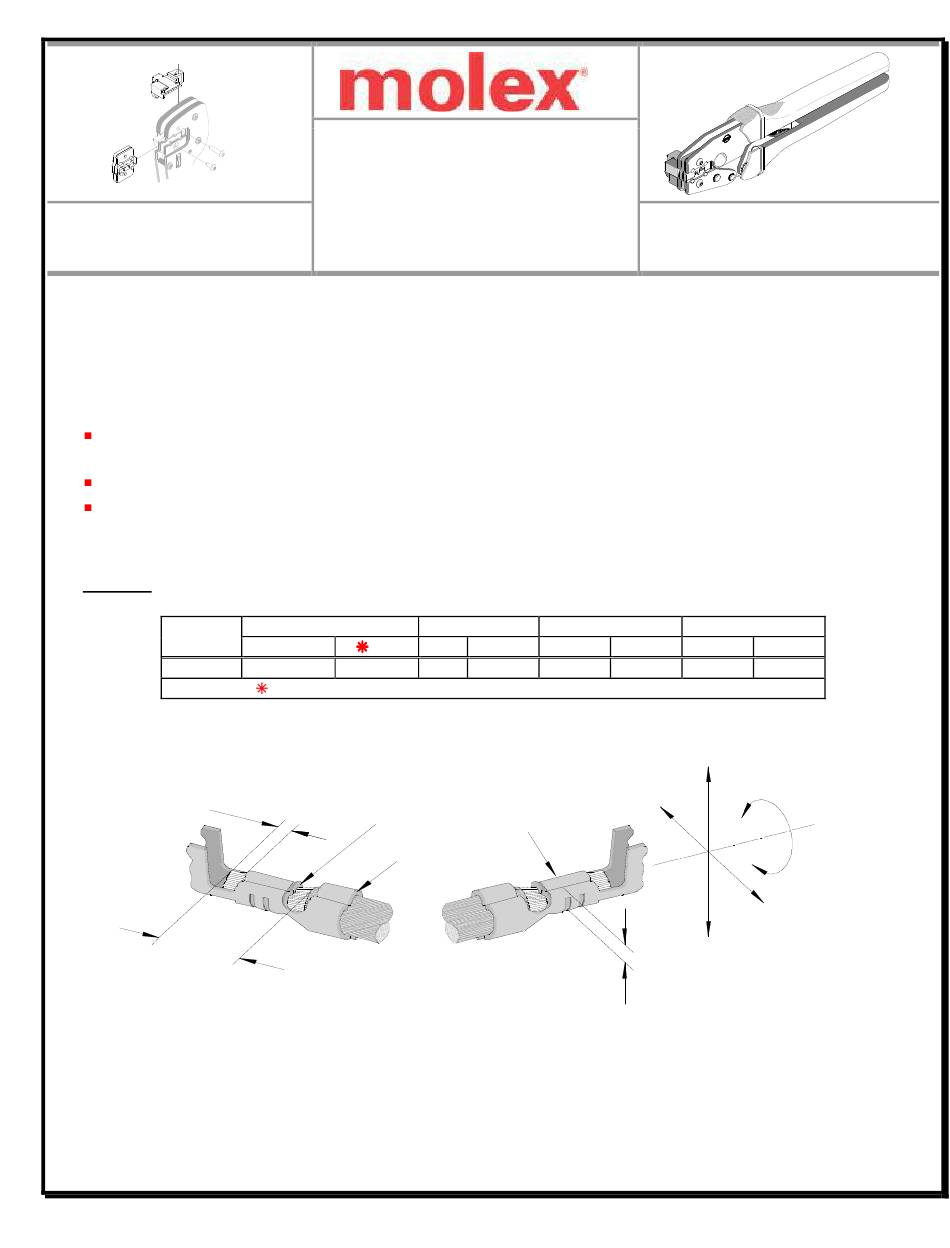

molex 207129 Series Specification Sheet

Tool kit for , micro spox crimp terminals
Hide thumbs Also See for 207129 Series:
Table of Contents

Advertisement

Quick Links

Download this manual
Tool Kit for , Micro SPOX™ Crimp Terminals
Tool Kit
Order No. 63811-6770
FEATURES
A full cycle ratcheting hand tool ensures complete crimps
%
Ergonomically designed soft handles
%
Precisely designed crimping profiles with simple contact positioning
%
Easy handling due to outstanding force ratio
%
Tool kits are easily installed into the Hand Crimp Tool or the 63816-0300 Power Crimp Head which is installed
into the 63816-0200 (110 V) or the 63816-0250 (220 V) Battery Powered Tool.
Many different Tool kits can be used with a single Battery Powered Tool.
This tool is IPC/WHMA-A-620 Class 2 and RoHS compliant.
SCOPE
Products: 2.00mm (.079") Pitch, Micro SPOX™ Crimp Terminals, 22-30 AWG.
Terminal
Series No.
5230
DEFINITION OF TERMS
BRUSH
STRIP
LENGTH
The above terminal drawing is a generic terminal representation. It is not an image of a terminal listed in the
scope.
Doc No: ATS-6381167HM Release Date: 08-02-06
Revision: C
Application Tooling
Specification Sheet
Terminal Order No.
Loose Piece
Reel
AWG
08-70-0073
08-70-0072 22-30 0.35-0.05 1.10-1.50 .043-.060 2.54-3.17 .100-.125
Customer to cut off terminal from reel: 0.40mm (.016") maximum Cut-off Tab.
BELL MOUTH
INSULATION
CRIMP
▲SEE NOTE
Revision Date: 10-04-10
Wire Size
Insulation Diameter
mm²
mm
CONDUCTOR
CRIMP
CRIMP HEIGHT
UNCONTROLLED COPY
TYPE 2C
Hand Crimp Tool
Order No. 63811-6700
Strip Length
In.
mm
In.
BEND UP
ROLLING
TWISTING
BEND
DOWN
Page 1 of 9

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 207129 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for molex 207129 Series

Summary of Contents for molex 207129 Series

  • Page 1 Tool Kit for , Micro SPOX™ Crimp Terminals TYPE 2C Application Tooling Specification Sheet Tool Kit Hand Crimp Tool Order No. 63811-6770 Order No. 63811-6700 FEATURES A full cycle ratcheting hand tool ensures complete crimps Ergonomically designed soft handles Precisely designed crimping profiles with simple contact positioning Easy handling due to outstanding force ratio Tool kits are easily installed into the Hand Crimp Tool or the 63816-0300 Power Crimp Head which is installed into the 63816-0200 (110 V) or the 63816-0250 (220 V) Battery Powered Tool.

  • Page 2: Installation

    Pull Force value must exceed the minimum pull force specifications listed. CAUTION: Install only Molex terminals listed above with this tool. Do not crimp hardened objects as damage can occur to the tool or die.

  • Page 3: Operation

    Tool Kit for , Micro SPOX™ Crimp Terminals Locator Installation and Removal Follow the steps below to install or replace the locator. See Figure 2. POWER CRIMP HEAD LIFT UP ON PUNCHES THE LOCATOR M4 X 18 LONG BHCS PRESS DOWN M4 X 10 LONG ON THE BRASS BHCS...
  • Page 4 Tool Kit for , Micro SPOX™ Crimp Terminals 7. Remove the crimped TERMINAL terminal from the terminal locator by pressing down on the wire stop and gently pulling on the wire. The terminal locator can SWING OPEN be in either position. 8.

  • Page 5: Maintenance

    Tool Kit for , Micro SPOX™ Crimp Terminals 3. Firmly press down on the brass pivot shaft with your thumb, while pulling the locator up. Slip the locator off the top of the Figure 7B brass pivot shaft. See Figure 6. 4.

  • Page 6: Warranty

    12.7mm (1/2”) long, so there is no crimping of the insulation. Pull the terminal and wire at a rate no faster than 25mm (1.00”) per minute. See the Molex web site for the Quality Crimp Handbook for more information on pull testing.
  • Page 7 Tool Kit for , Micro SPOX™ Crimp Terminals The chart below shows all applications for this Tool Kit. Tool Kit Tool Tool Power Head Adapter Figure Order No. Order no. Description Order No. Description 63810-0100 Hand Crimp Frame (Short) 63810-0400 Hand Crimp Frame (Long) 63811-6770 63816-0200 Battery Power Tool (110 V) 63816-0300 Power Crimp Head 63816-0250 Battery Power Tool (220 V) 63816-0300 Power Crimp Head...

  • Page 8: Hand Tool Parts List

    Tool Kit for , Micro SPOX™ Crimp Terminals HAND TOOL PARTS LIST Item Number Order Number Description Quantity 63810-0100 Hand Crimp Frame (Short) 63810-0101 Wrench Set (Not included) 63810-0102 Locator Base 63810-0103 Repair Kit (Not included) 63811-6770 Tool Kit with Locator 63811-6775 Locator (only) LOCATOR ONLY...

  • Page 9: Power Head Parts List

    Power Crimp Head 63811-6770 63811-6770 Tool Kit M4 by 8 Long BHCS M4 by 18 Long BHCS M4 by 10 Long BHCS Figure 12 http://www.molex.com UNCONTROLLED COPY Doc No: ATS-6381167HM Release Date: 08-02-06 Page 9 of 9 Revision: C Revision Date: 10-04-10...
