CHAPTER 21 • CLICK 230
180
Note
The Click 230 is designed for use with 120 VAC. A 220 VAC version is available for
installations using that voltage. See your Wavetronix dealer for details.
Protection is achieved through the use of tightly coordinated hybrid circuits consisting of
fast-responding surge-arresting diodes (SAD), high-powered current-handling gas dis-
charge tubes (GDT) and series decoupling elements.
Physical Features
The Click 230 has eight active screw terminal connections. The module is wired in through
terminals 1, 3 and 5, and out through terminals 2, 4 and 6. Terminals 11 and 12, also on the
OUT side, are for testing.
Installation
1
Connect the black (line) wire from the Click 210 circuit breaker to the rightmost screw
terminal (terminal 5) on the IN side of the Click 230.

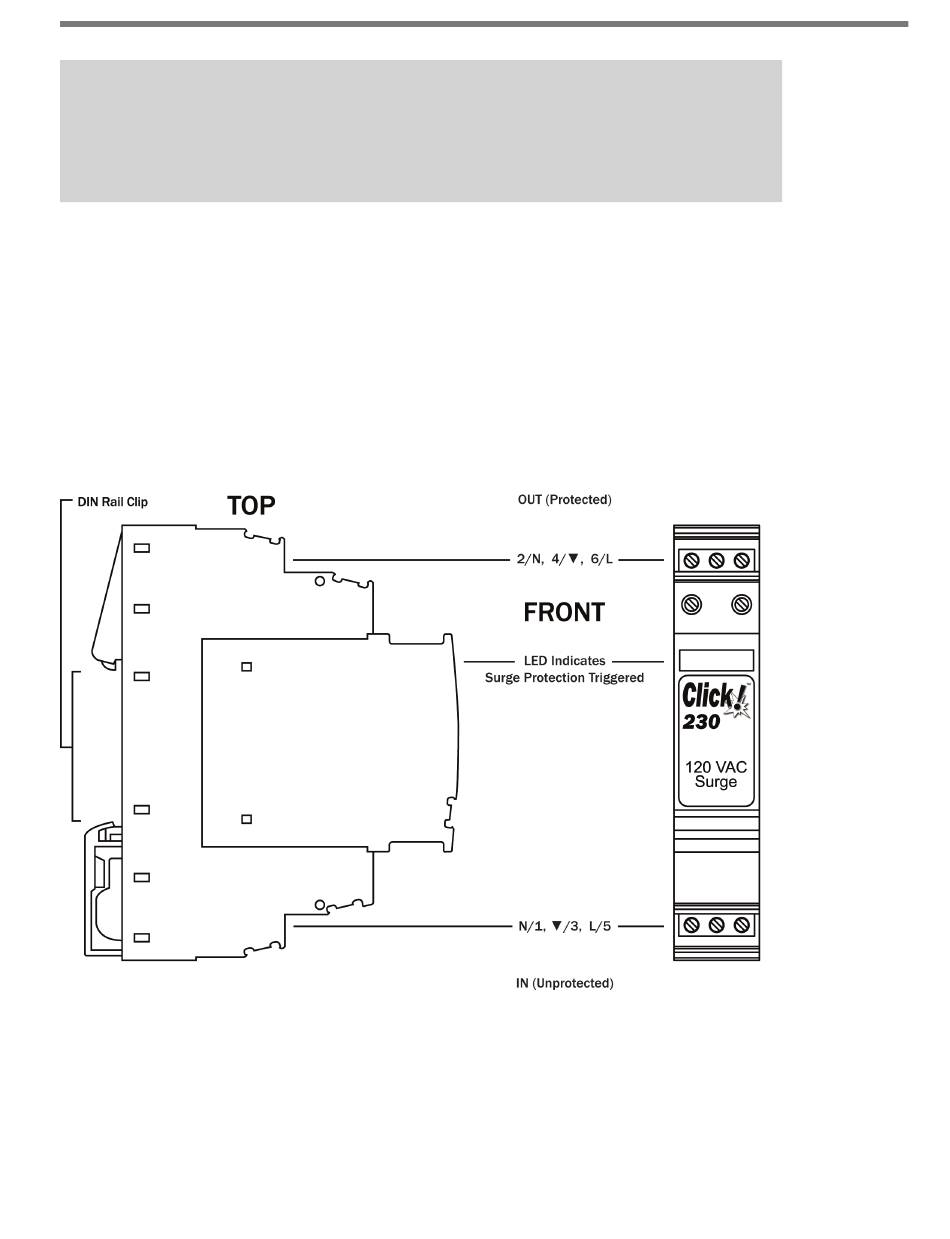

Figure 21.2 – Diagram of the Click 230
