Using the Click 223
The Click 223 dual-485 surge protector device is designed to prevent electrical surges from damaging connected
equipment. It protects one DC power and two RS-485 serial connections from these incoming surges, which
are usually caused by lightning strikes and carried along underground cables. The Click 223 can be used with a
number of devices, including the SmartSensor Advance.

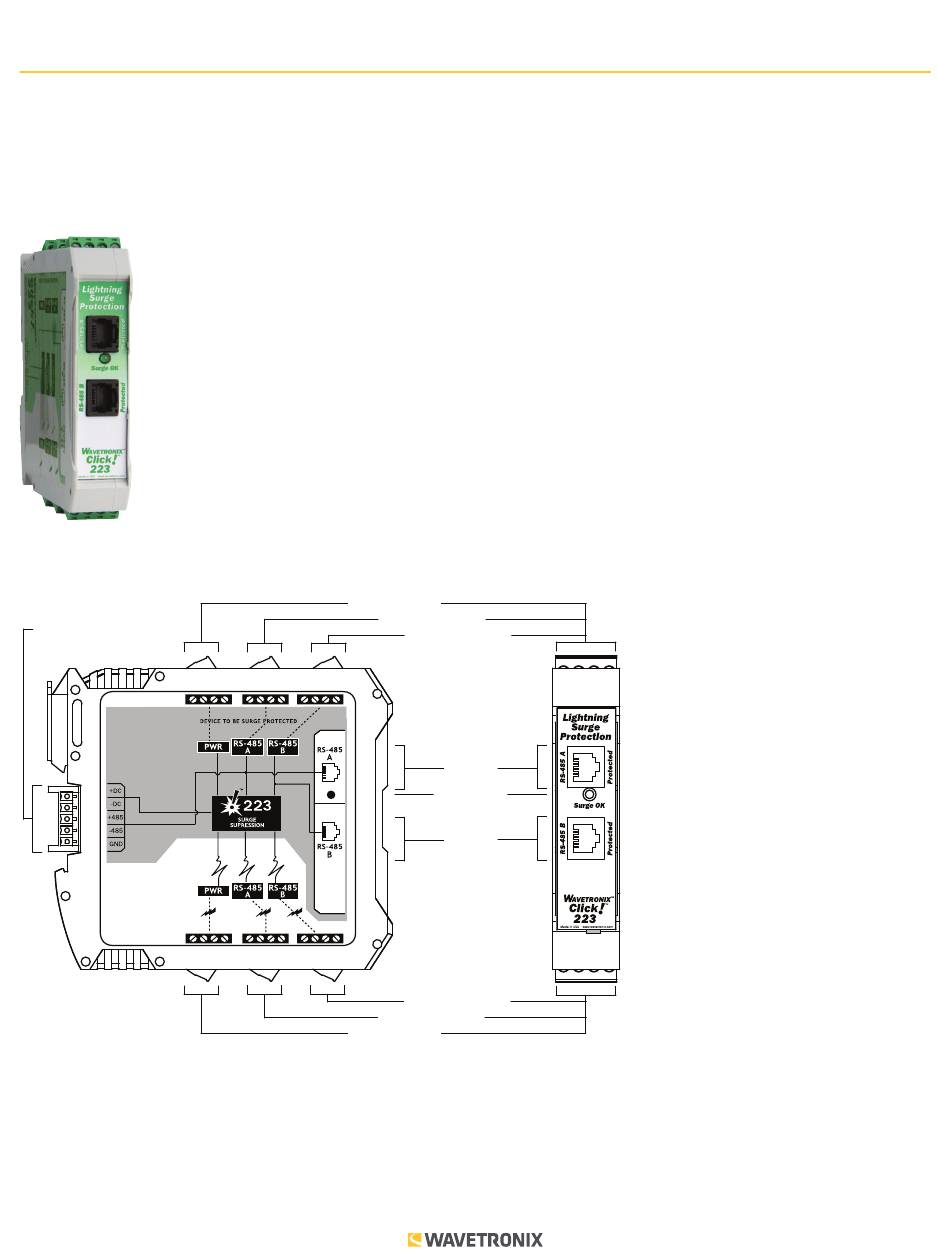

Physical Features
T-Bus
TOP
Connector
The faceplate of the Click 223 has two RJ-11 jacks, which provide two independent serial connections:
RS-485A (upper jack) – passes RS-485 between the jack, the 485A screw terminals on the top and bottom of
■
the device, and the T-bus 5-position connector.
RS-485B (lower jack) – passes RS-485 between the jack and the 485B screw terminals on the top and bottom
■
of the device.
WX-501-0528 • 05.22
Power Connector
RS-485 A Connector
RS-485 B Connector
FRONT
RS-485 A
Connector
Surge OK LED
RS-485 B
Connector
RS-485 B Connector
RS-485 A Connector
Power Connector
0528
1 of 3
Advertisement
Table of Contents
Related Manuals for Wavetronix Click 223
Summary of Contents for Wavetronix Click 223
- Page 1 It protects one DC power and two RS-485 serial connections from these incoming surges, which are usually caused by lightning strikes and carried along underground cables. The Click 223 can be used with a number of devices, including the SmartSensor Advance.
- Page 2 ■ The front of the Click 223 has an LED that lights up to indicate the device has power and the surge protection is working properly. If the LED is not lit, either the device has no power or the surge protection is not working.
- Page 3 © 2022 Wavetronix LLC. All rights reserved. Protected in the US by patents viewable at www.wavetronix.com/en/legal. Protected by Canadian Patent Nos. 2461411; 2434756; 2512689; and European Patent Nos. 1435036; 1438702; 1611458. Other US and international patents pending. Wavetronix, SmartSensor, Click, Command and all associated logos are trademarks of Wavetronix LLC. All other product or brand names as they appear are trademarks or regis- tered trademarks of their respective holders.
