Using the Click 204

0521

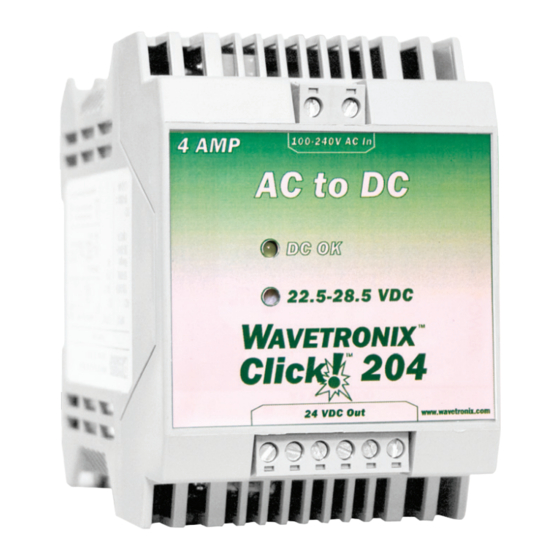

Click 204 modules are 120–240 VAC to 24 VDC power supplies. One of these modules should be used as part of
the power plant, providing reliable DC power to the rest of the cabinet, unless a Click 203 is used.
A Click 204 provides 4 A of power and is capable of powering four Wavetronix SmartSensors.

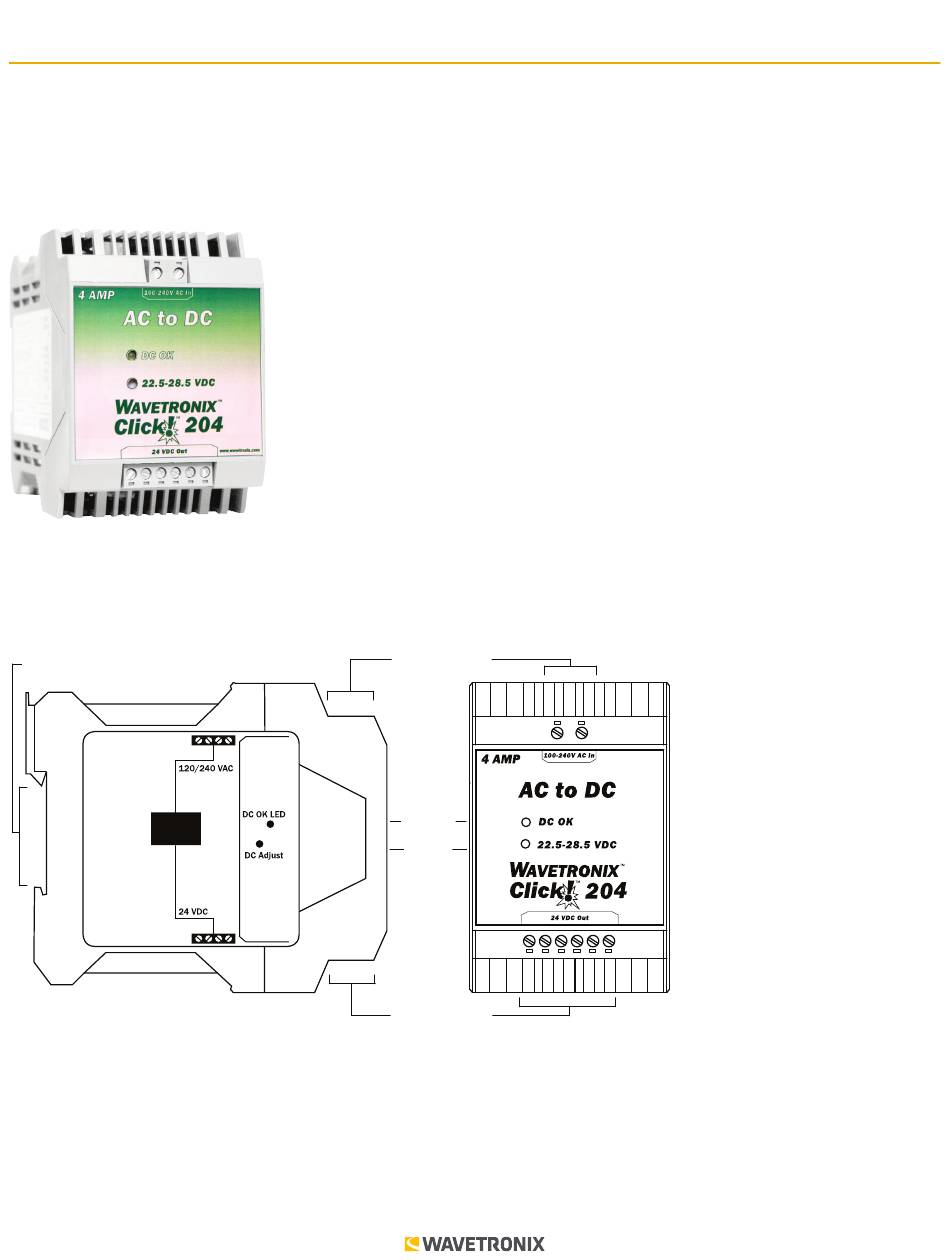

Physical Features

Click 204 modules have the following physical features.
TOP
AC Power Connector
DIN Rail Clip
FRONT
Click
DC OK LED
204
DC Adjust
DC Power Connector
Click 204 modules are wired through the pluggable screw terminal blocks on the top and bottom of each module.
The top block has two screw terminal connections for wiring AC in. DC out is wired through the bottom of the
module. The Click 204 also has one screw terminal block on the bottom of the module. The screw terminal blocks
are red-keyed, allowing them to plug only into their proper slots.
WX-501-0521 • 05.22
1 of 3

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Click 204 and is the answer not in the manual?

Questions and answers

Related Manuals for Wavetronix Click 204

Summary of Contents for Wavetronix Click 204

  • Page 1 0521 Click 204 modules are 120–240 VAC to 24 VDC power supplies. One of these modules should be used as part of the power plant, providing reliable DC power to the rest of the cabinet, unless a Click 203 is used.
  • Page 2 Click 204 modules also have a green activity indicator light marked DC OK on the faceplate. This light glows steadily when the module is working properly, but will go out if the power supply is interrupted or if the DC connection is shorted.
  • Page 3 © 2022 Wavetronix LLC. All rights reserved. Protected in the US by patents viewable at www.wavetronix.com/en/legal. Protected by Canadian Patent Nos. 2461411; 2434756; 2512689; and European Patent Nos. 1435036; 1438702; 1611458. Other US and international patents pending. Wavetronix, SmartSensor, Click, Command and all associated logos are trademarks of Wavetronix LLC. All other product or brand names as they appear are trademarks or regis- tered trademarks of their respective holders.
