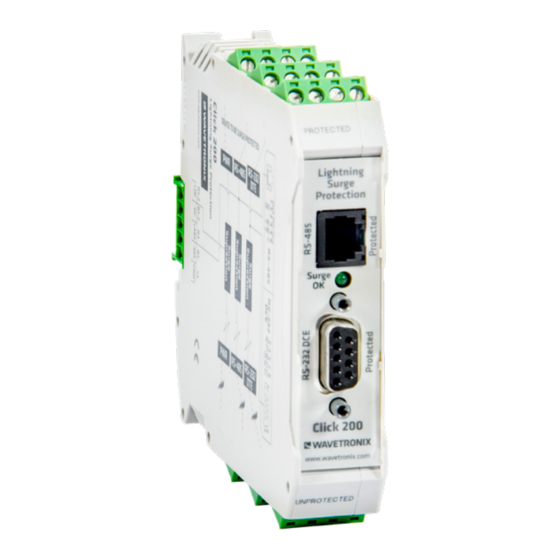

Using the Click 200

The Click 200 module is designed to protect SmartSensors from surges on all power and communication
connections, suppressing power surges for DC power, half-duplex RS-485 communication, and full-duplex RS-232
communication with CTS and RTS.
The Click 200 can also be used to protect any device from surges from the SmartSensor or any other device with
9–28 VDC power or RS-485 or RS-232 communication.

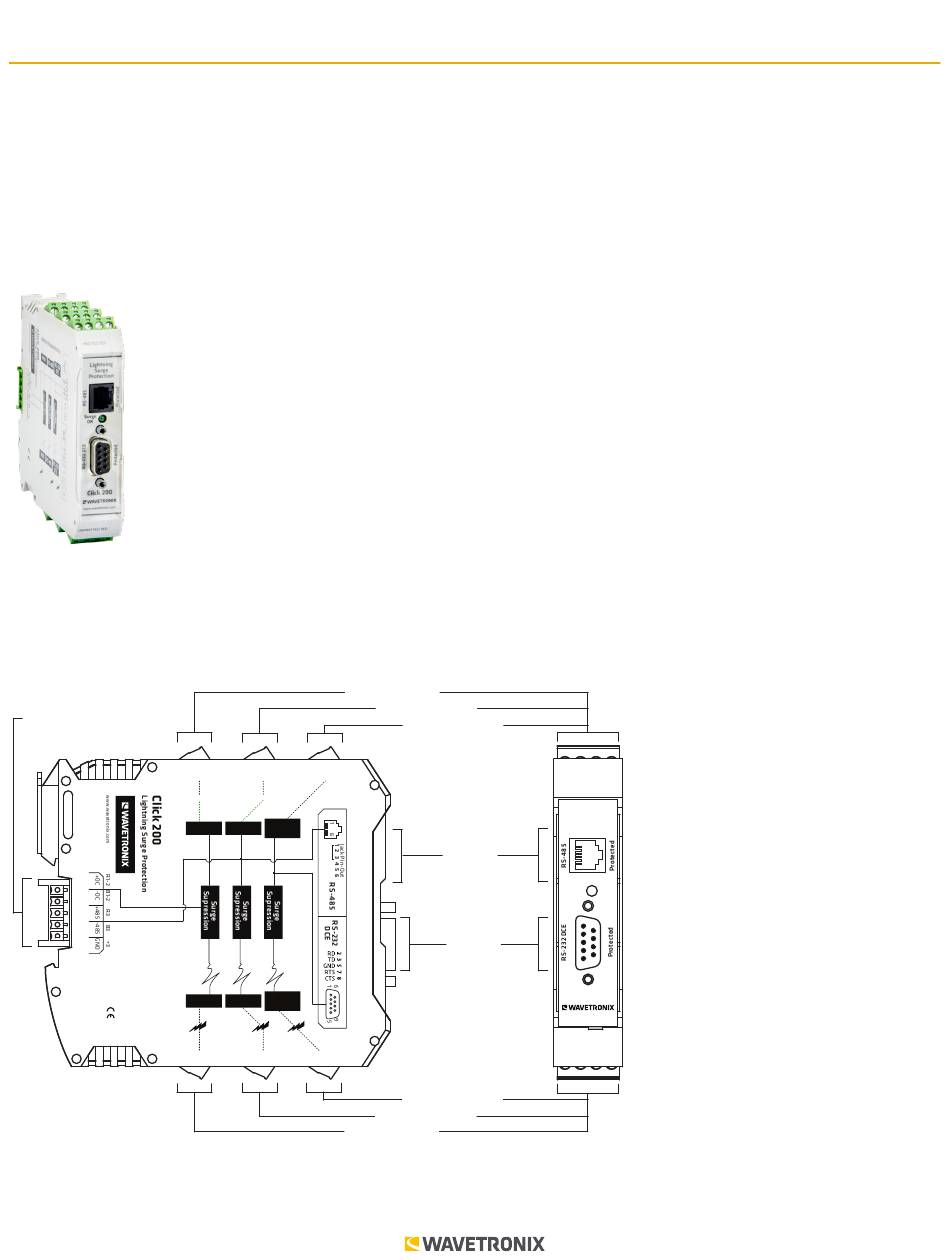

Physical Features

The physical features of the Click 200 include communication and power connections.
T-Bus
TOP
Connector
WX-501-0520 • 01.22
Power Connector
DEVICE TO BE SURGE PROTECTED
RS-232
PWR
RS-485
DTE
GND
-485
+485
+5
RS-232
PWR
RS-485
DTE
Power Connector
RS-485 Connector
RS-232 Connector
FRONT
RS-485
Connector
RS-232
Connector
RS-232 Connector
RS-485 Connector
Lightning
Surge
Protection
Surge
OK
Click 200
www.wavetronix.com
0520
1 of 4

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Click 200 and is the answer not in the manual?

Questions and answers

Related Manuals for Wavetronix Click 200

Summary of Contents for Wavetronix Click 200

  • Page 1 DC power, half-duplex RS-485 communication, and full-duplex RS-232 communication with CTS and RTS. The Click 200 can also be used to protect any device from surges from the SmartSensor or any other device with 9–28 VDC power or RS-485 or RS-232 communication.
  • Page 2 Installation To install the Click 200 in a pole-mount cabinet, simply mount it on the DIN rail and wire the service end of the sensor cable into the PROTECTED side (see the section on wiring for how to do this).
  • Page 3 Wiring the Cable The figure below shows how to wire the two sides of the Click 200. The UNPROTECTED side of the Click 200 is not surge protected and is designed to be connected to the source(s) from which power surges may come.
  • Page 4 © 2022 Wavetronix LLC. All rights reserved. Protected in the US by patents viewable at www.wavetronix.com/en/legal. Protected by Canadian Patent Nos. 2461411; 2434756; 2512689; and European Patent Nos. 1435036; 1438702; 1611458. Other US and international patents pending. Wavetronix, SmartSensor, Click, Command and all associated logos are trademarks of Wavetronix LLC. All other product or brand names as they appear are trademarks or registered trademarks of their respective holders.
