rectly wire the Click 201/202/204.
Note
Ensure power to AC mains is disconnected while wiring the AC input.
Wiring AC Power Into the Click 201/202/204
Line (black)
Neutral (white)
Table 14.1 – Wiring AC+ Power In

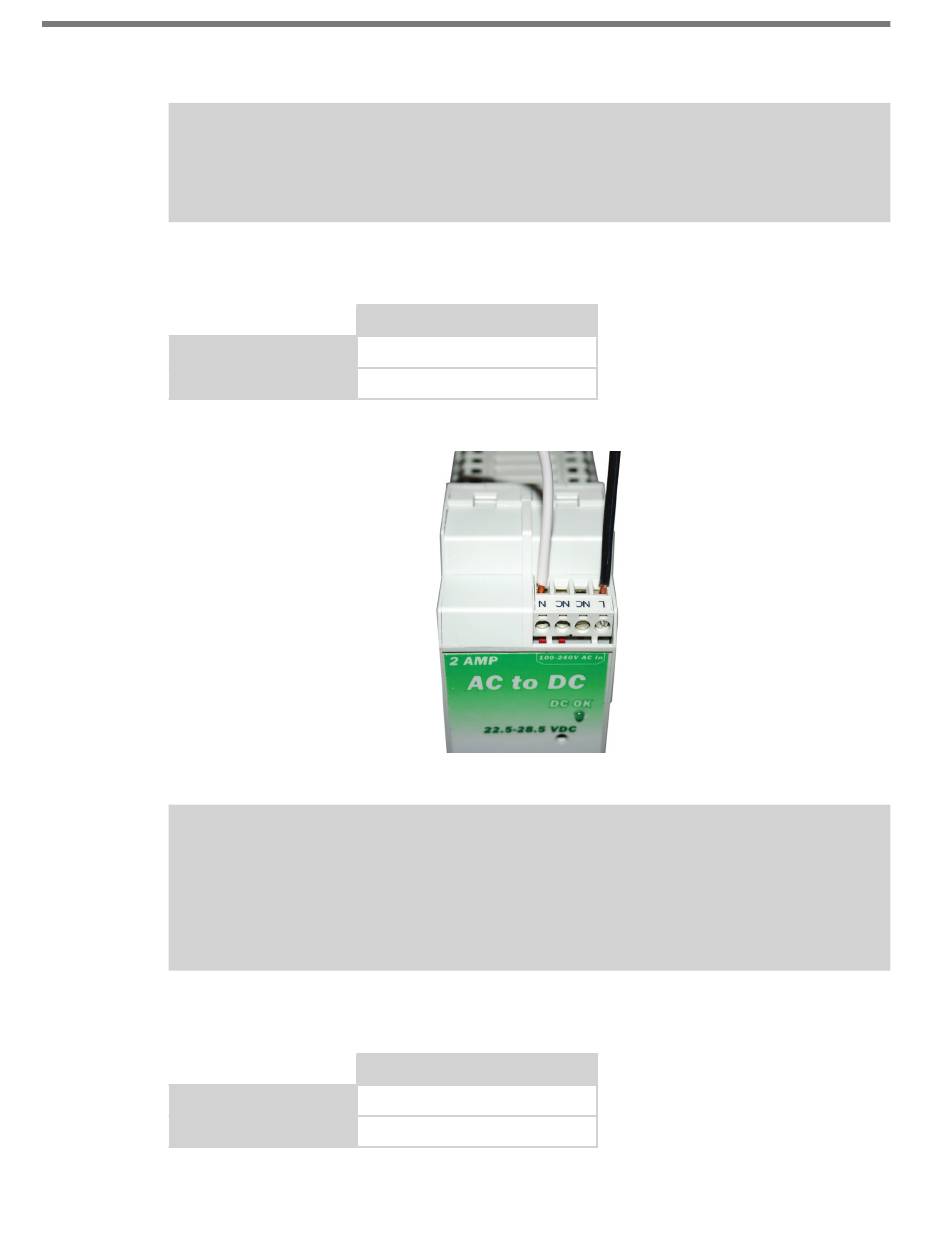

Figure 14.3 – Wiring AC Power into the Click 201/202/204
Note
The NC screw terminals found in the Click 201 and 202 are not connected internally.
Connecting a wire to a no connect (NC) terminal simply gives it a convenient termina-
tion point.
Wiring DC Power out of the Click 201/202/204
+DC (red)
-DC (black)
Table 14.2 – Wiring AC Power Out
Click 201/202/204 AC In
L
N
Click 201/202/204 DC Out
L
N
