The System > Settings tab lets you configure and view many of the parameters that are also
available elsewhere on the device (see Table 9.1 earlier in this chapter for more informa-
tion). The tab has the following parameters (see Figure 9.11 and Table 9.16):
Note
These parameters can also be configured using the DIP switches or the front panel
menu; if in the DIP switches they are set to Hardware mode, the parameters will ap-
pear grayed out on this screen.
Setting
Baud Rate for Bus 1
Baud Rate for Bus 2
Input Mapping
Channel Enable
Fault Latch

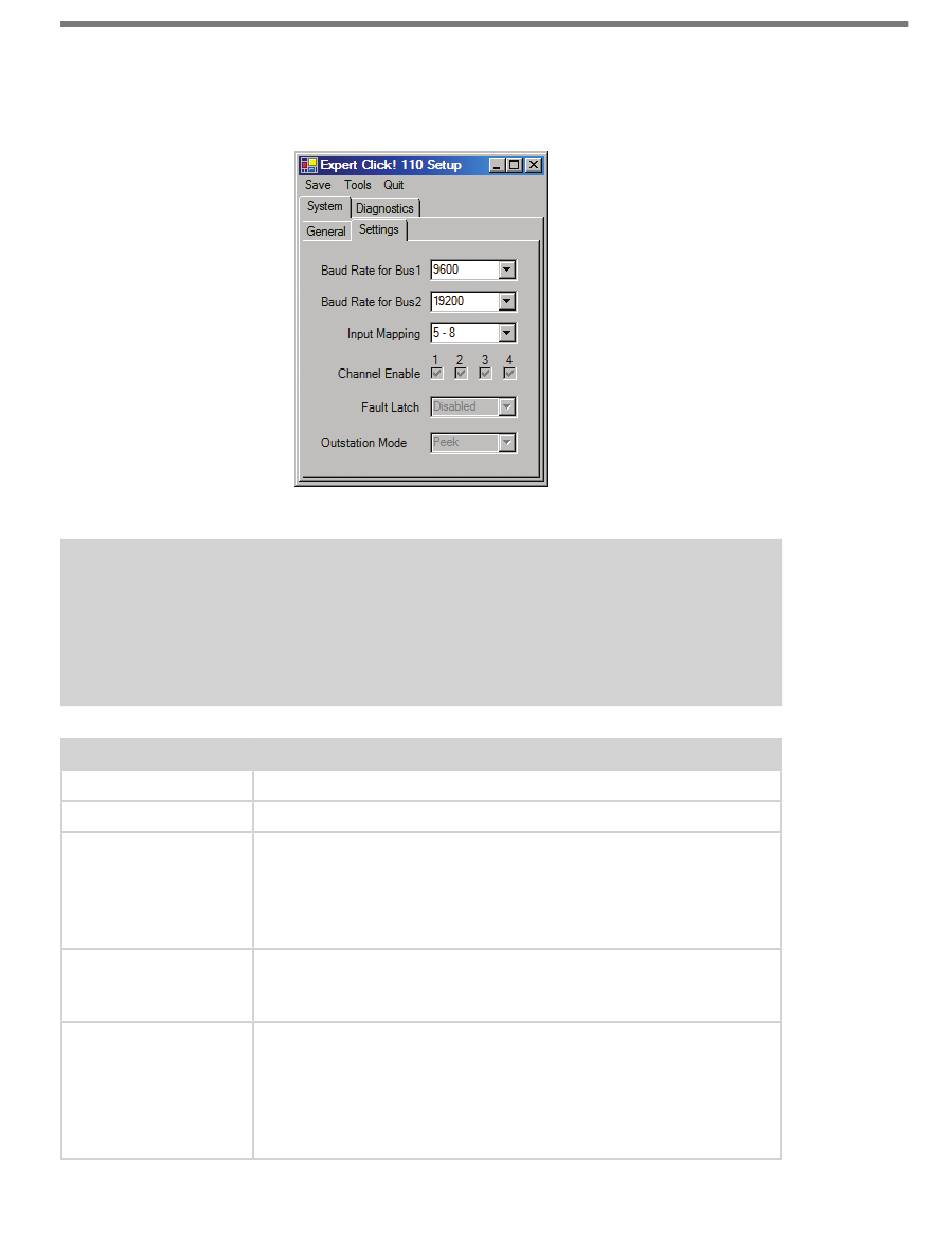

Figure 9.11 – Expert Driver Settings Tab
Description
Lets you change the baud rate, in bps, of bus 1.
Lets you change the baud rate, in bps, of bus 2.
Lets you assign input datagram channels received from the sensor to
the device's four output channels. The outputs are mapped sequen-
tially—that is, they can only be mapped in numerically ordered groups
of four (1–4, 5–8, etc.). See Input Mapping in either the DIP Switches
or Front Panel Menu sections in this chapter for more information.
Lets you choose which of the output channels are enabled. Any com-
bination of outputs can be enabled. A disabled output will never enter
the detection state, and will never indicate a fault condition.
Lets you view if Fault Latch is enabled. See Fault Latch in the DIP
Switches section of this chapter for more information.
Fault latching can only be configured using the DIP switches, so this
parameter will always be grayed out, allowing you to view but not
change the configuration of this parameter.
