Wavetronix Click 112 Quick Start Manual

Click 112/114 Contact Closure
QUICK START GUIDE
1
Mount and connect the device

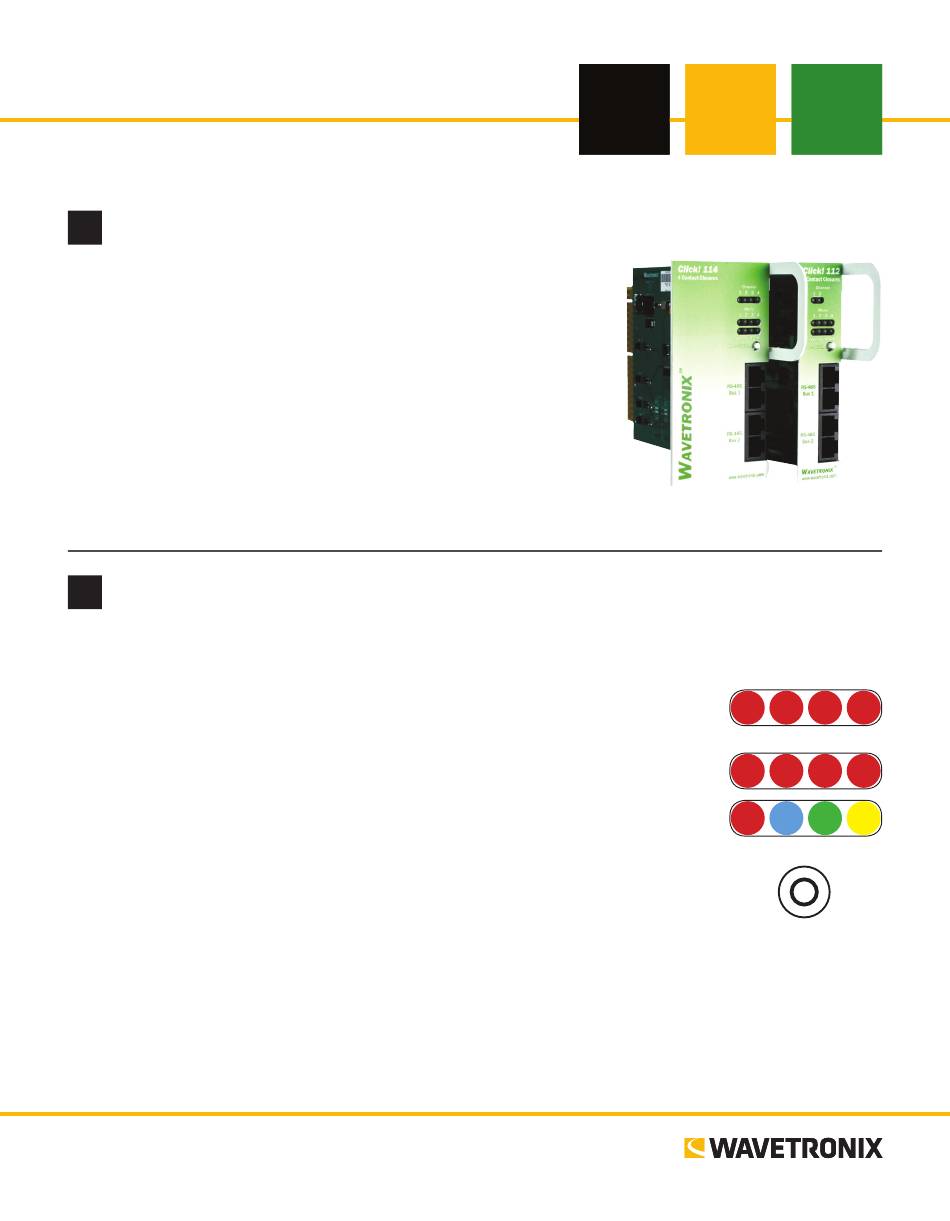

Use the following steps to install the Click 112/114 rack cards:
1
If you're using hardware configuration, set all DIP switches before
installing Click 112/114 devices (this will be covered in Part 4 of
this document).
2
Insert the cards into the rack.
3
Daisy-chain together all the cards in your installation, using short
RJ-11 jumper cables.
4
Connect the first Click 112/114 card to the SmartSensor via a Click
200 or Click 222 surge protector and a 60" RJ-11 patch cord.
Note. Bus 1 should be used to connect to the sensor, and bus 2 for configuration.
2
Understand the device's configuration features
The following physical features allow you to configure the Click 112/114:
˽ Mode Switch – Allows you to cycle through and select menu and configura-
tion options.
˽ Level 1 LEDs – Light up to indicate menu options while cycling through the
menu. They also have the following functions:
˿ Red – Lights up when the device has power
Blue – Currently has no function
˿
˿ Green – Lights up when the device is transmitting data
˿ Yellow – Lights up when the device is receiving data
Level 2 LEDs – Light up to indicate configuration options. When the de-
˽
vice is not in menu mode, these LEDs are off.
Channel LEDs – The topmost bank of LEDs. These light up to indicate
˽
vehicle detection.
DIP Switches – Located on the lower part of the circuit board (left face of the board, if you're looking at
˽
the faceplate). These switches allow you to configure the device. This will be covered in greater detail in
Part 4.
www.wavetronix.com www.wavetronix.com
801.734.7200 801.734.7200
Channel
1 2 3
Menu
Level 2
1 2 3
Level 1
PWR PU TD
Mode Switch
4
4
RD
