Outstation Mode
Table 9.16 – Expert Driver Settings Tab
Under the Diagnostics tab, you can run diagnostics on your device (see Figure 9.12).
Click the General button to run diagnostics on the items listed below the button. If a prob-
lem is detected, the program will display a red square next to the item in question. If no
problems are detected, a green circle will appear.
Click Fault Status to check whether any of the channels are indicating a fault condition. If
a fault status is detected, a red square will be displayed next to the channel with the fault, as
well as next to Master. If no problems are detected, a green circle will appear.
Once you have finished, use the menu bar at the top of the screen to save your settings,
return to the Select Driver screen, and more.
˽ The Save menu allows you to save your settings. Select Save to File to save your settings
to a file. Selecting this will open a directory box, allowing you to name your settings
file. This file will always be saved in the Wavetronix folder created when you installed
Click Supervisor, under Wavetronix > ClickHome > Drivers > 110 > User. You can also
select Save to Device to save your settings to your Click 110.
Lets you view which brand of outstation, Peek or Siemens, the
device is currently set to work with. See Outstation Mode in the DIP
Switches section of this chapter for more information.
Outstation mode can only be configured using the DIP switches, so
this parameter will always be grayed out, allowing you to view but not
change this parameter.

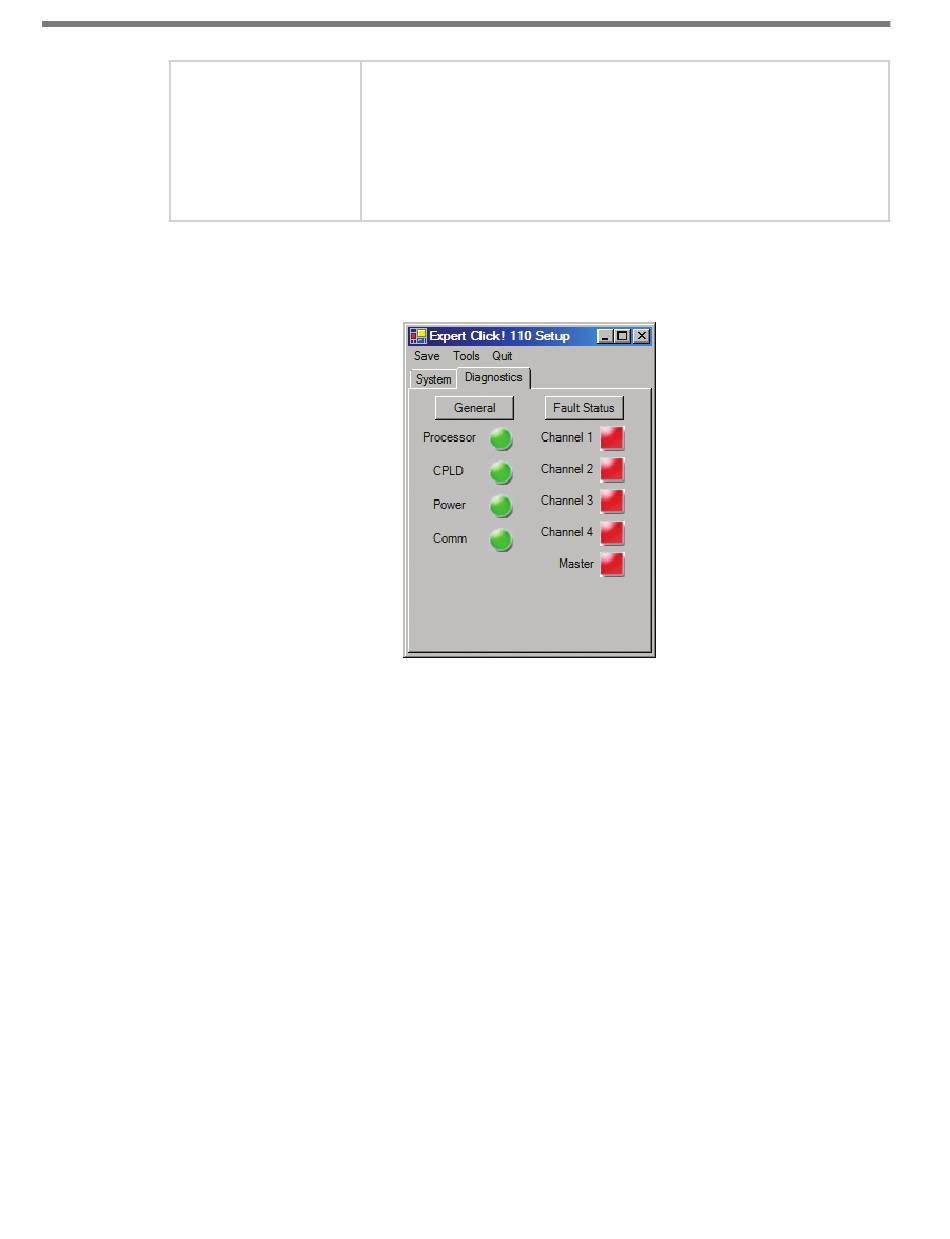

Figure 9.12 – Expert Driver Diagnostics Tab
