Wavetronix Click 100 Installation & Quick Start Manual

Click 100 Contact Closure
INSTALLATION QUICK START GUIDE
1

Mount the device

2

Wire power and communication

If you are a using a Click 200 surge protector with the Click
100, power and communication are provided to the Click 100
through the T-bus (see the Click 200 Quick Start Guide). If
you don't have a Click 200 surge protector, use the following
steps to wire power and communication into the Click 100.
Plug a T-bus 5-screw terminal block into the first T-bus
1
connector.
Wire DC power (10–30 V) from the power supply into the
2
first screw terminal on the 5-screw terminal block; wire
-DC into the second screw terminal/
3 Connect RS-485 communication (+485, -485 and GND) to
the remaining three screw terminals on the 5-screw terminal block.
3

Use on-device configuration features

Next, use the device's configuration features. The Click 100 has four LEDs that monitor device activity and help you select
operating modes, as well as a push-button, labeled Mode Switch, also used for operating modes.
Check LEDs to make sure the device has power.
1
Autobaud device to ensure it can talk to the sensor or other attached serial device (see table below).
2
Hold the push-button to cycle through modes, then release when the desired mode is reached.
www.wavetronix.com
801.734.7200

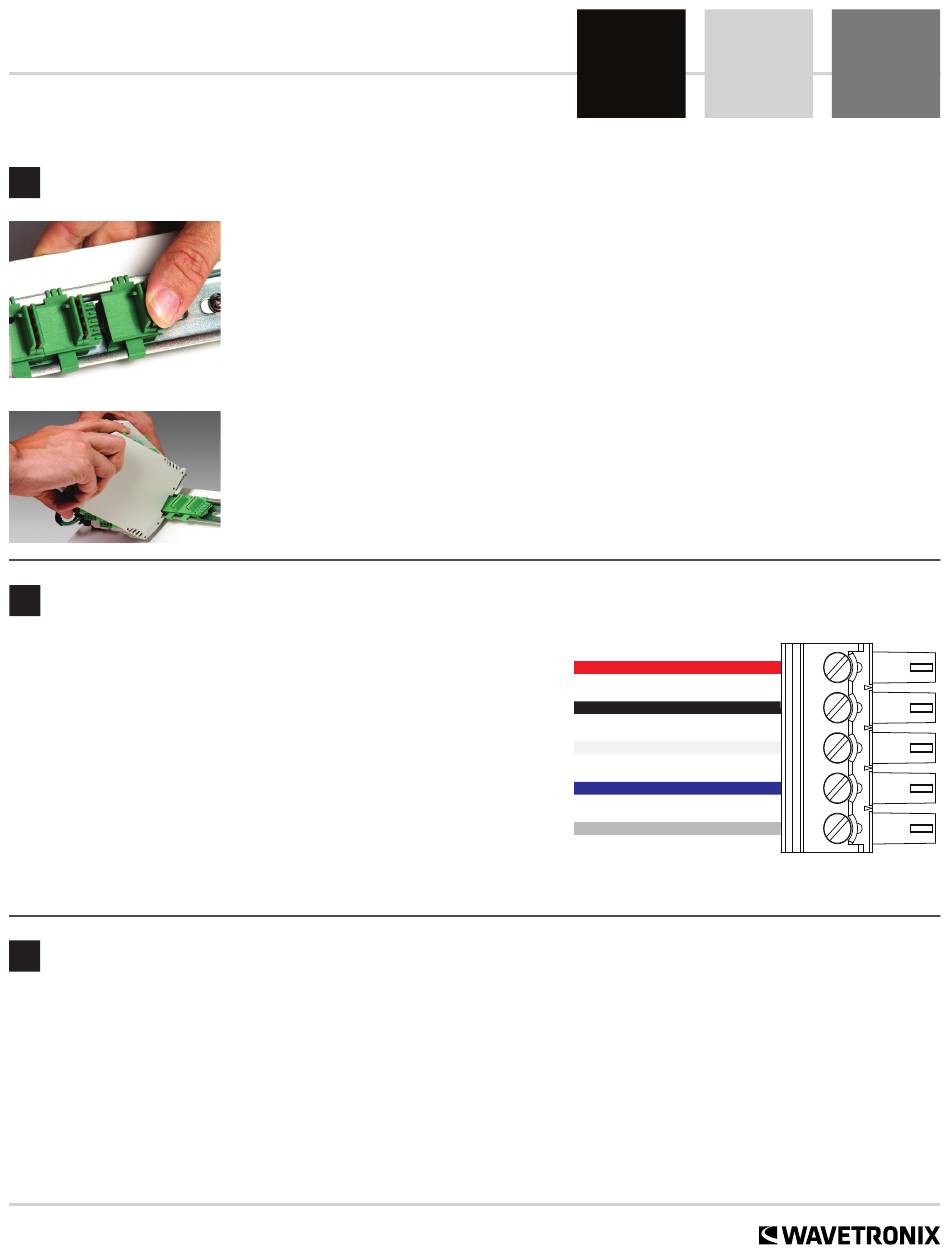

The Click 100 mounts over a T-bus for power and communication.
1 If the Click 100 was shipped with the T-bus connector attached, remove the connector
from the module.
2 Snap the connector onto the DIN rail by positioning it over the rail with the male connector
pointing to the right. Hook one arm over the edge of the DIN rail and press down on the
other arm until it snaps into place.
Connect the T-bus connector to the rest of the T-bus by sliding them together until you
3
hear them snap into place.
4 Mount the Click 100 onto the DIN rail: position it properly over the T-bus connector, hook
the lip over the lower edge of the DIN rail, and use a rocking motion to snap the module
into place.
Red (+DC)
Black (-DC)
White (+485)
Blue (-485)
Drain (GND)
