Using the Click 421
The Click 421 serial to Bluetooth radio converts half-duplex two-wire RS-232 and 485 communication to Bluetooth
and vice versa. Use this device in a cabinet to transfer data from a sensor to your computer via a wireless
Bluetooth connection.

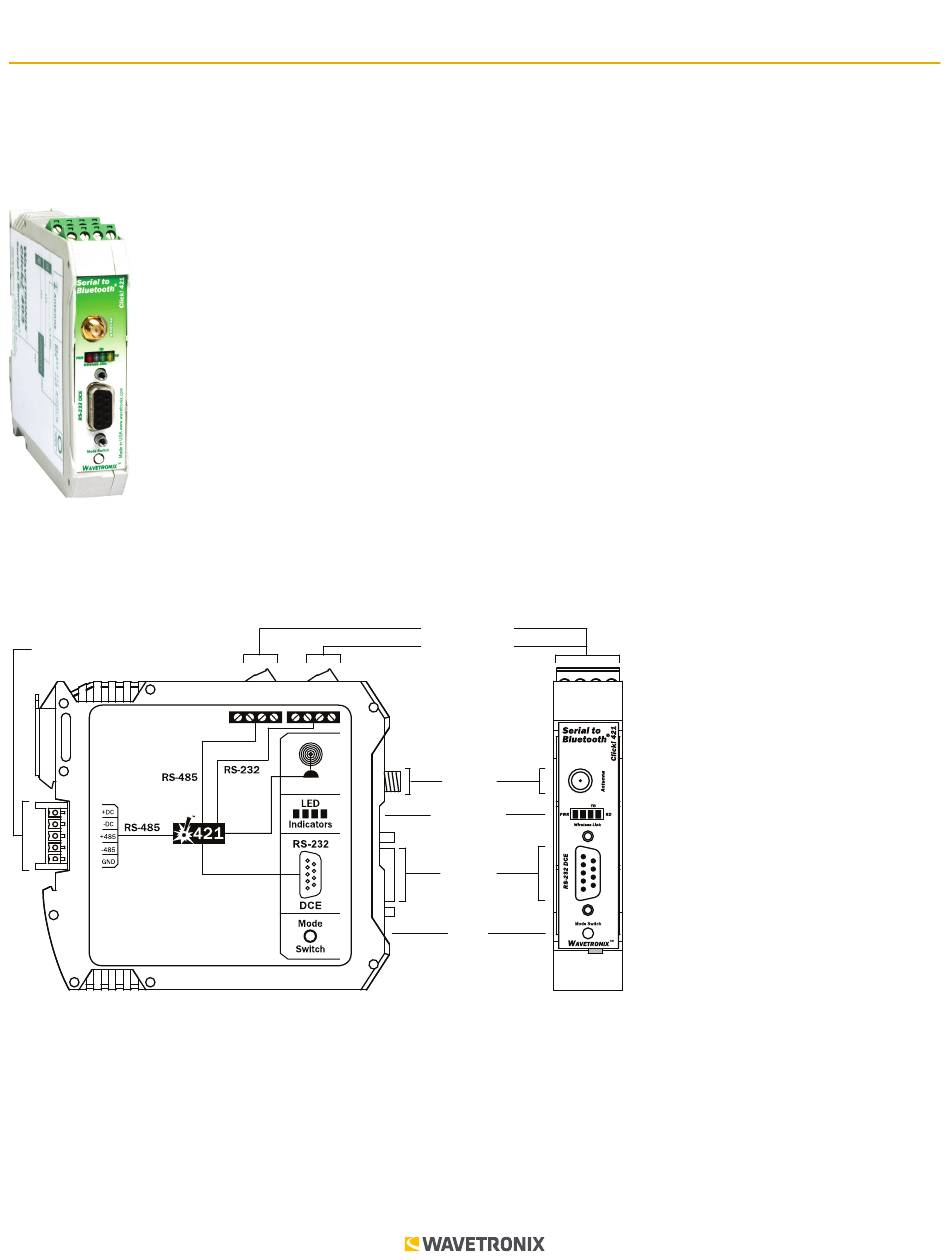

Physical Features
The Click 421 has several communication ports, plus features for configuration.
T-Bus
TOP
Connector
Communication Ports
The back of the Click 421 features a 5-position connector that plugs into a T-bus connector and provides power and
RS-485 communication to the device. It also passes that RS-485 communication to all other devices on the T-bus.
The top of the device has two pluggable screw terminal blocks. The first block features -485, +485 and two
ground screw terminals for wiring RS-485 communication. (It will not be necessary, however, to wire RS-485
through the screw terminal block if the device is connected to a T-bus with uninterrupted RS-485 communication.)
WX-501-0535 • 01.22
RS-485 Connector
RS-232 Connector
FRONT
Antenna
Bluetooth
Connector
LED Indicators
RS-232
Connector
Mode
Switch
0535
1 of 9

Advertisement

loading
Need help?

Need help?

Do you have a question about the Click 421 and is the answer not in the manual?

Questions and answers

Related Manuals for Wavetronix Click 421

Summary of Contents for Wavetronix Click 421

  • Page 1 Communication Ports The back of the Click 421 features a 5-position connector that plugs into a T-bus connector and provides power and RS-485 communication to the device. It also passes that RS-485 communication to all other devices on the T-bus.

  • Page 2: Configuration Features

    This will be discussed later in the On-device Configuration section. On-device Configuration The Click 421 can be configured using the push-button on the lower part of the faceplate. Press and hold the push-button to cycle through the different operation modes; release the button when the desired mode is reached.

  • Page 3: Computer Configuration

    To reset the Click 421 to factory defaults, release the push-button when the red LED begins flashing. The red LED should blink slowly, then the green and yellow LEDs will flicker. When the red LED glows solid, the module has the original factory configuration.
  • Page 4 If you intend to connect from your computer to the Click 421 to a sensor, use the SmartSensor driver. To see advanced settings, use the Expert driver. This driver, which exposes every available field for the Click 421, should only be used under the direction of Wavetronix Support.
  • Page 5 ID number. Baud Rate Allows you to change the baud rate at which the device connects to the sensor. Under the About tab, you can view information about your Click 421 (see the figure and table below). Setting Description Driver Names the driver you are currently working with.
  • Page 6 Save to Device to save your settings to your Click 421. Note. If you do not save your settings to your Click 421, they will be lost the next time you power the device down. The Tools menu contains five options for working with your device. Reset > System power cycles your device, ■...
  • Page 7 Command Allows you to set the command sent from the device during the autobaud process. Don’t change these values unless instructed to by Wavetronix Technical Services. Response Shows the response the device is expecting from the above command. Don’t change these values unless instructed to by Wavetronix Technical Services.
  • Page 8 Enables the use of a password on the signal. Note. If you decide to password protect your Click 421, be sure to keep a good record of the password you choose. Wavetronix is not able to recover passwords or remove password protection from a device, so if the password is ever forgotten or lost, it will render the module unusable.
  • Page 9 © 2022 Wavetronix LLC. All rights reserved. Protected in the US by patents viewable at www.wavetronix.com/en/legal. Protected by Canadian Patent Nos. 2461411; 2434756; 2512689; and European Patent Nos. 1435036; 1438702; 1611458. Other US and international patents pending. Wavetronix, SmartSensor, Click, Command and all associated logos are trademarks of Wavetronix LLC. All other product or brand names as they appear are trademarks or registered trademarks of their respective holders.
