Configuration Features
The front of the Click 222 has four LEDs that indicate device activity and status:
˽ PWR (red) lights up to indicate that the device has power.
˽ DC Surge OK (blue) lights up to indicate DC surge protection is working.
˽ TD (green) lights up to indicate when data is transmitted over the T-bus or over the
control bridge. This LED does not indicate data transmitted on the A or B ports.
˽ RD (yellow) lights up to indicate when data is received over the T-bus or over the con-
trol bridge. This LED does not indicate data received on the A or B ports.
Installation
The Click 222 is commonly used with the SmartSensor Matrix and SmartSensor 6-conduc-
tor cable; the steps that follow in this section are specific to this application. If you do not
plan on using the 6-conductor cable, you can skip the steps below and simply wire your
power and communications by following the labels on the screw terminals; in this case, be
aware that you should use the terminals marked 485A and 485B for detection calls.
+485A (Orange/White)
– 485A (Orange)
+485C (Blue/White)
Sensor 1
– 485C (Blue)
+DC (Red)
– DC (Black)
Drain
Earth ground

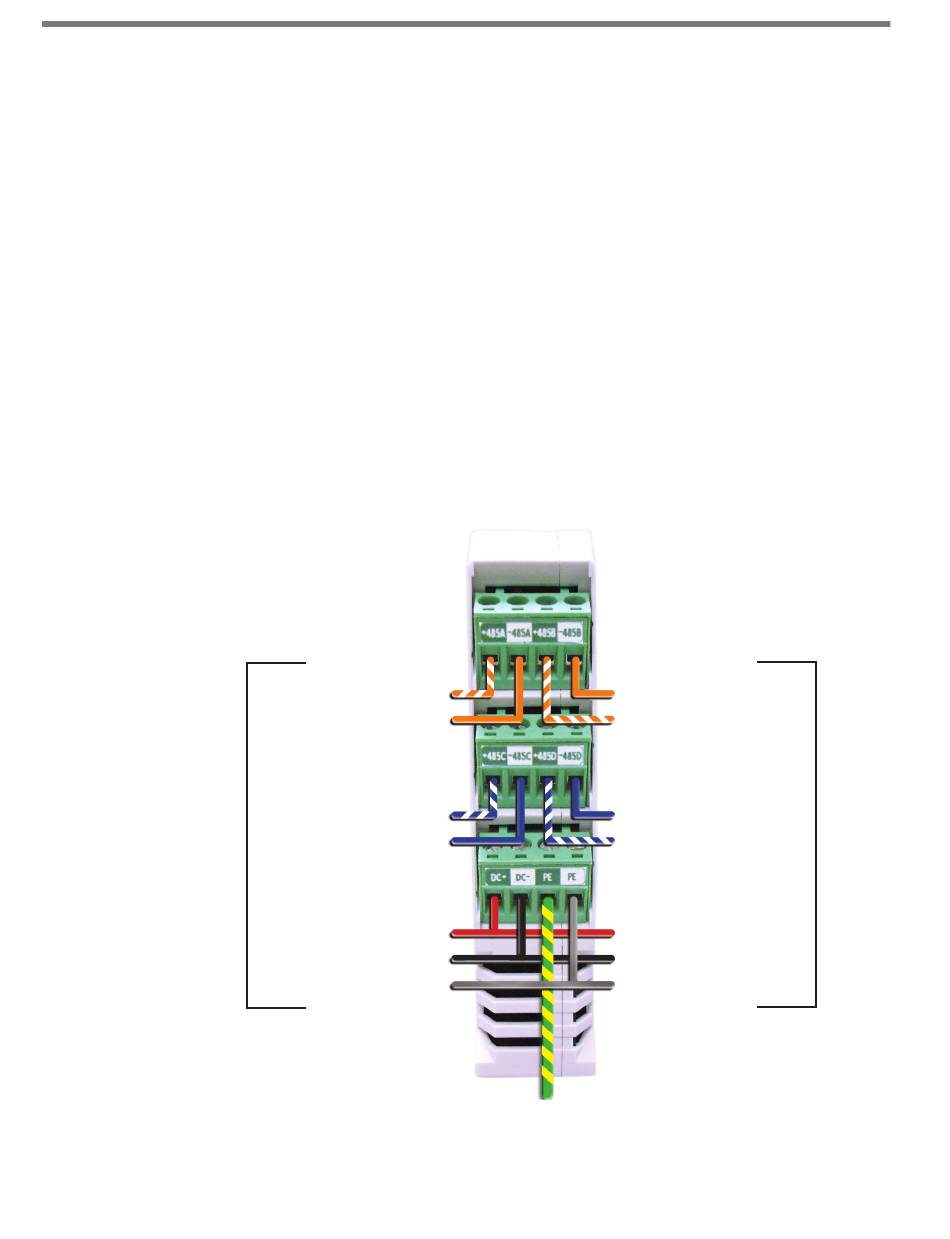

Figure 19.3 – Wiring the Click 222
CHAPTER 19 • CLICK 222
–485B (Orange)
+485B (Orange/White)
+485D (Blue)
–485D (Blue/White)
+DC (Red)
–DC (Black)
Drain
171
Sensor 2
