Solid Ceiling Installation

Introduction
You can mount the SpiroLock™ projector mount to any solid surface ceiling that has a minimum 6˝ thickness.
For concrete installation use concrete wedge anchors (¼˝ recommended) to secure the mounting hardware and
a masonry drill bit to drill the pilot holes. Wedge anchors and masonry drill bits are not supplied, but you can
purchase them at your local hardware store.
Step 1
­ ­
Place the SpiroLock™ Ceiling Plate into position
against the ceiling.
® ­
Use a pencil and mark four (4) mounting hole
locations through each of the mounting points (B) in
the SpiroLock™ Ceiling Plate.
The target arrow indicates the direction of the
projector screen relative to the projector mount.
Step 2
­ ­ Drill a hole at each mark using the appropriate
diameter masonry bit for your wedge anchor.
® ­
Remove the nut and washer from the wedge anchors.
¯ ­
Insert a wedge anchor into each hole.
If necessary, use a hammer to lightly tap each
wedge anchor into place.
Page 8

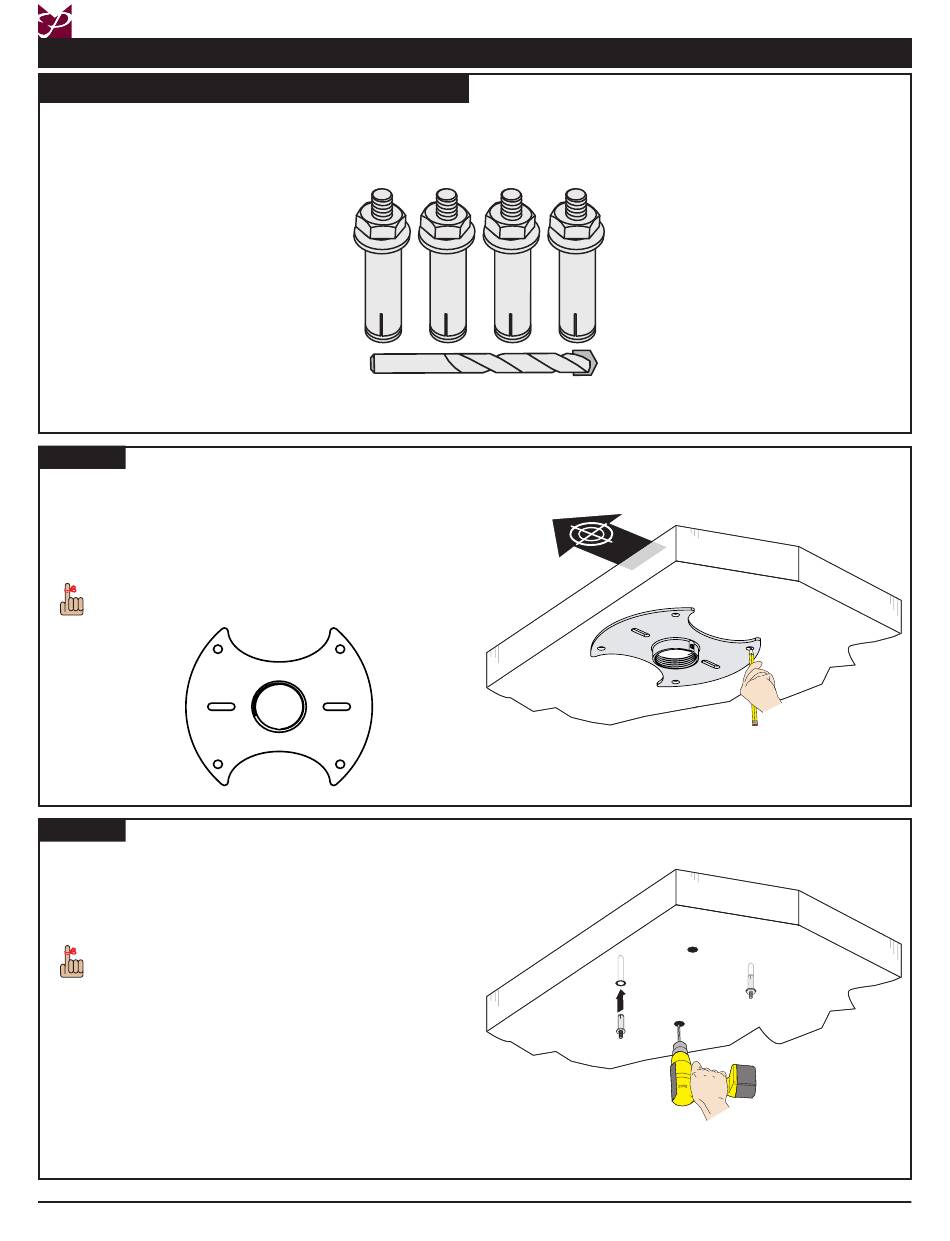

Example Wedge Anchors and Masonry Bit
B B
B
B
