SPI-PRO
Wood Stud Installation (cont'd)

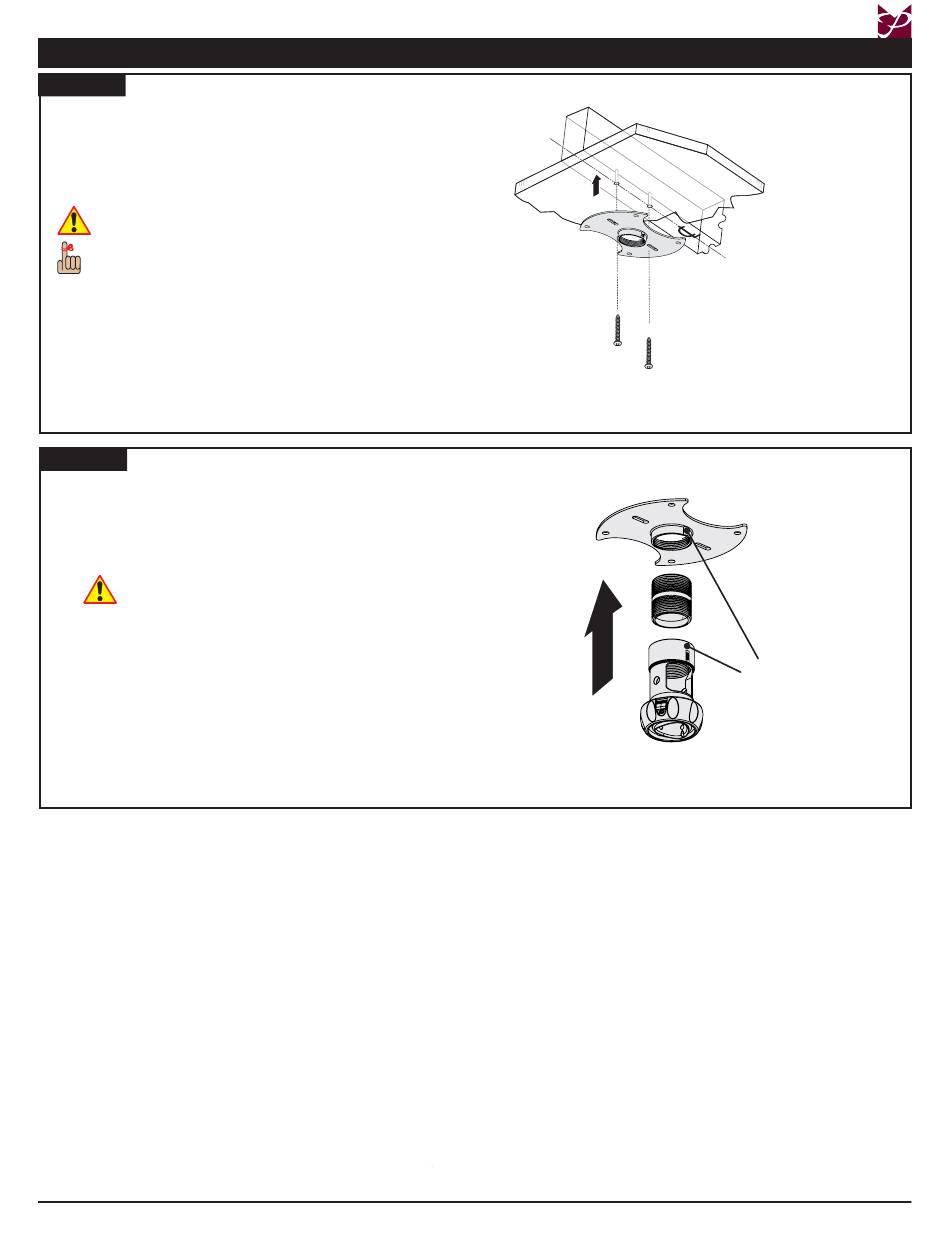

Step 4
­ ­ Insert one (1) #14 x 2˝ screw through each of the
mounting holes (A) on the bottom of the SpiroLock™
Ceiling Plate and into the pilot holes.
® ­
Tighten each screw until the SpiroLock™ Ceiling
Plate is secure against the ceiling.
Do not overtighten the #14 x 2˝ screws.
If applicable, drill a hole above the mounting hole for
wiring access.
Step 5
­ ­
Secure the SpiroLock™ and close nipple onto the
Ceiling Plate.
® ­
Use an M3 Allen wrench to tighten the M6 x 6mm
Lock-It™ screws in the Ceiling Plate and SpiroLock™
twist lock collar.
Do not overtighten the Lock-It™ screws.
¯ ­
Route any cables up through the SpiroLock™ and
into the ceiling structure.
Proceed to "Attaching the Projector Plate" on
page 11.
Installation Instructions
Visit the Premier Mounts website at http://www.mounts.com
A
A
M6 x 6mm Lock-It™
Screws
