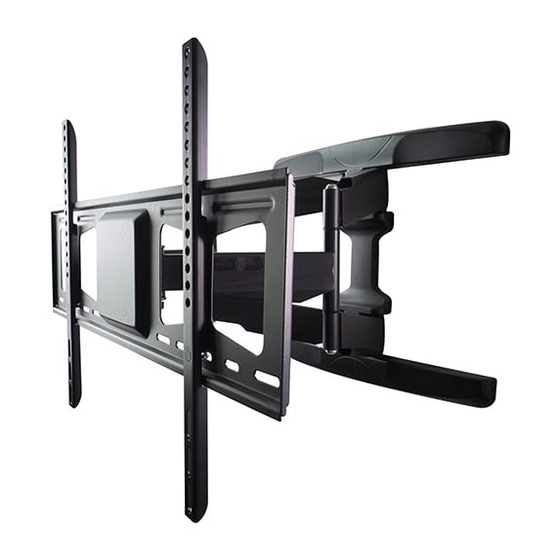

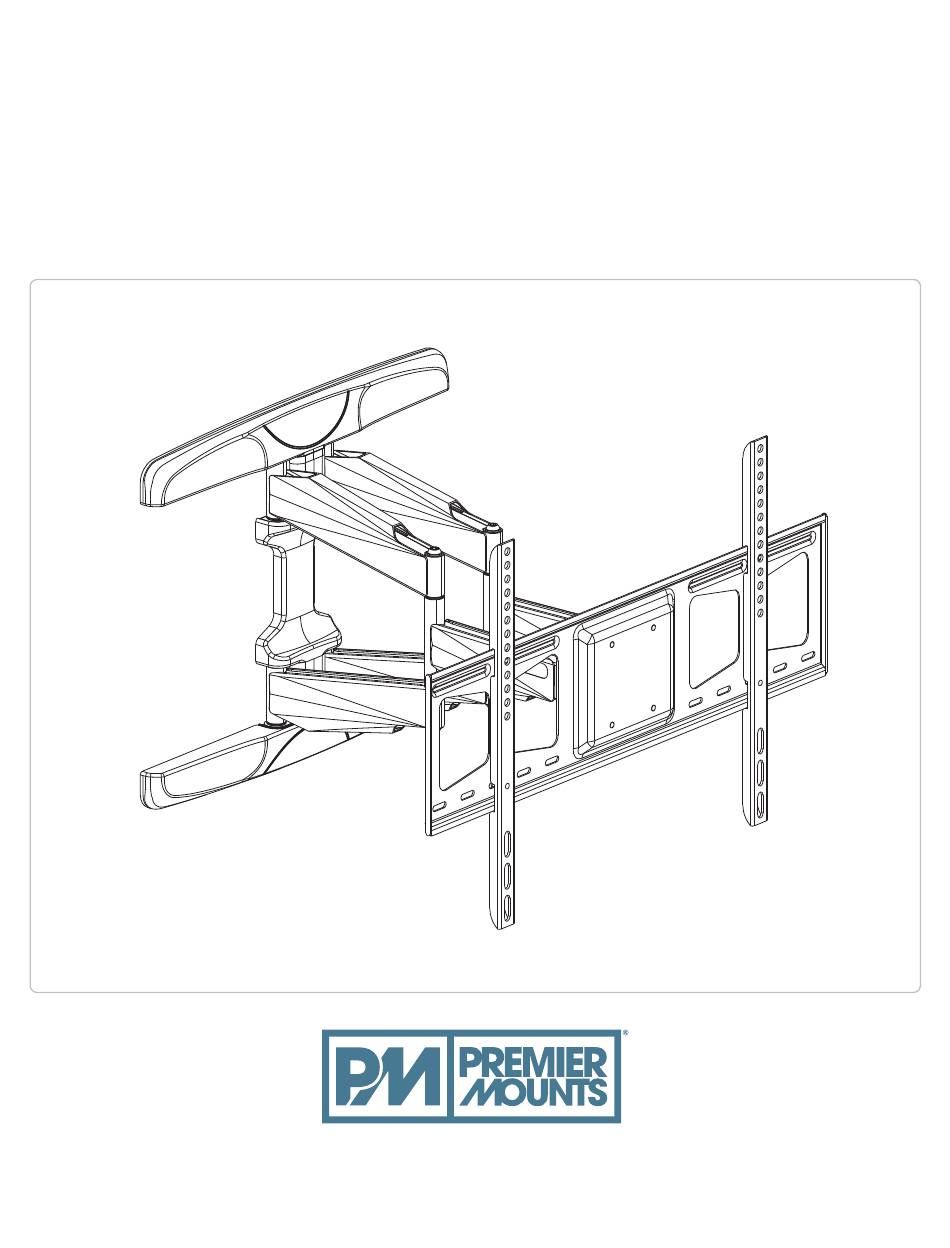

- Page 1 Maximum Flat Panel Weight: 95 lb. / 43.1 kg. AM95 INSTALLATION GUIDE Articulating Mount for Flat Panels up to 95 lb./43 kg. premiermounts.com | p. 800.368.9700 | e. orders@premiermounts.com 500 W Central Ave, Suite A, Brea, CA 92821 USA 9500159 v2.0...
- Page 2 AM95 Installation Guide INCLUDES: M5 x 25mm M8 x 25mm M4 x 25mm M6 x 25mm M8 x 45mm (Qty 4) (Qty 4) (Qty 4) (Qty 4) (Qty 4) Swivel Mount Universal 5/16” x 2.5” Hex M8 Washer Finned Anchors...
- Page 3 AM95 Installation Guide Solid Concrete Mounting Place the Mount on the wall and level. Mark the six (6) mounting locations using a pencil. Drill six (6) marking locations using the appropriate masonry drill bit and drill gun. LEVEL Lightly tap the six (6) concrete anchors into the holes.
- Page 4 AM95 Installation Guide Attaching the Display Brackets M5, M6 Install the display brackets to the display using four (4) universal washers and four (4) M4, M5, M6 or M8 screws depending on the display. Universal Washers x4 Use additional spacers for display with curved back or obstruction.
- Page 5 AM95 Installation Guide Cable Management Cable management clips Cable routing access points Cable Adjustments Use the supplied Allen key to tighten or loosen the tension screw. Swivel Tilt (Horizontal leveling) premiermounts.com | p. 800.368.9700 | e. orders@premiermounts.com Page 5...
- Page 6 How State Law Applies Premier Mounts intends to make this manual accurate and complete. However, Premier Mounts makes no claim that the information contained herein covers all details, conditions or variations, nor does it provide for every possible contingency in connection with the installation or use of this product. The information contained in this document is subject to change without notice or obligation of any kind.
