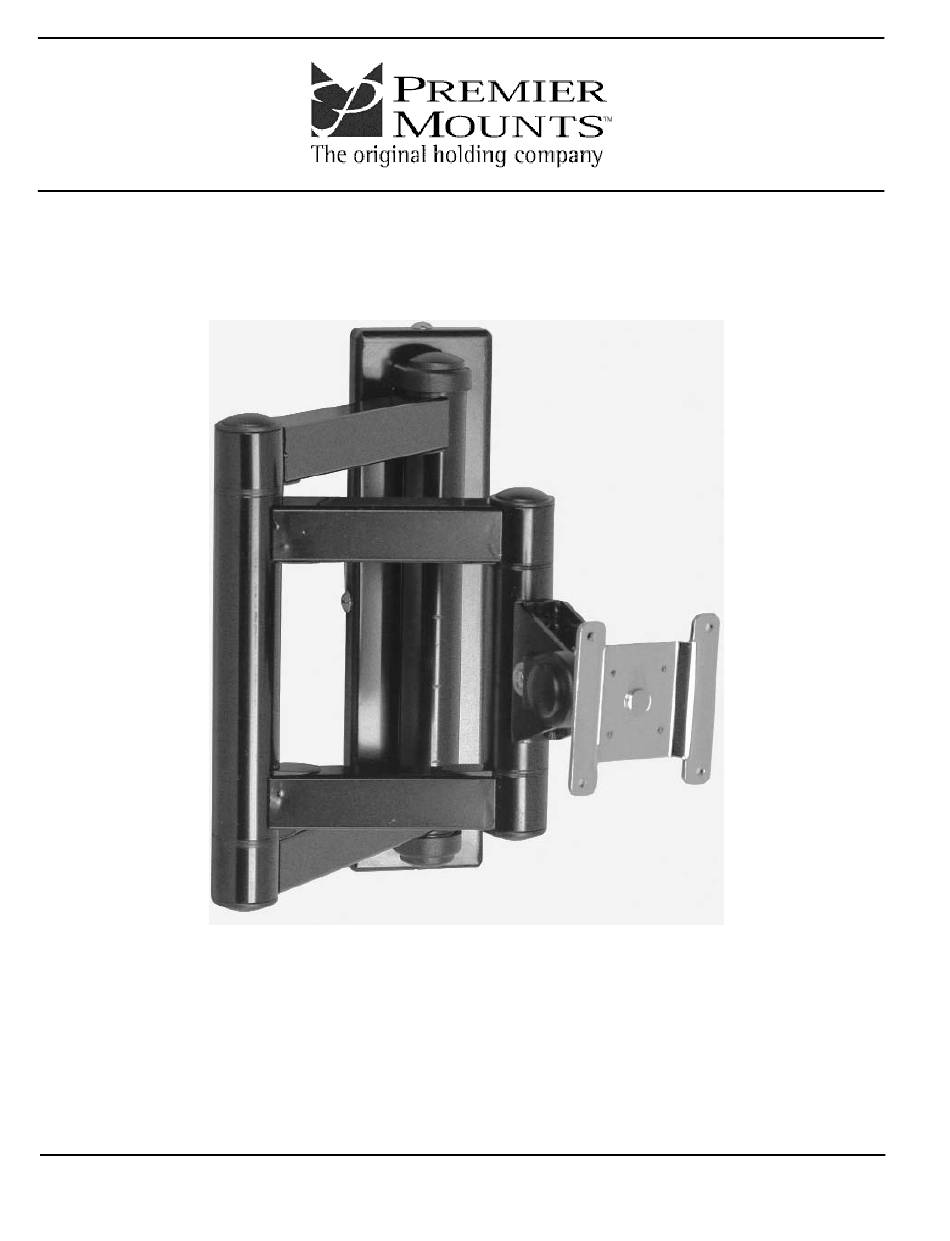

- Page 1 Installation Instructions SOAD Swing Out Arm Premier Mounts 3130 E. Miraloma Avenue Anaheim, CA 92806 Phone: (800) 368-9700 Fax: (800) 832-4888 techsupport@mounts.com www.mounts.com...
-
Page 2: Table Of Contents
SOAD TABLE OF CONTENTS Warning Statements Parts List Installation Tools SOAD Swingout Arm Tension Adjustments Technical Specifications Warranty Contact Premier Mounts Page 2 Installation Instructions... -
Page 3: Warning Statements
Recommended mounting surfaces: wooden studs and solid-flat concrete. If the mount is to be installed on any surface other than wooden studs, use suitable hardware (which is commercially available). Contact Premier Mounts with any technical/ installation questions. Installation Instructions Page 3... -
Page 4: Parts List
This mount is shipped with all intallation hardware and components. Make sure that none of these parts are missing and/ or damaged before beginning installation. If there are parts missing and/or damaged, please stop and contact Premier Mounts (800) 368-9700. #14 x 2”... -
Page 5: Soad Swingout Arm
(mm) Phillip screws (supplied). Raise the monitor with the arm attached and insert the SOAD plate to the secured back plate and secure one (1) of the M6 x 12 (mm) Phillip screws to the top of the back plate, then secure the remaining (3) M6 x 12 (mm) Phillip screws (supplied). - Page 6 SOAD (4) M6 x 12 (mm) phillip screws WOOD STUD BACK PLATE monitor WALL STRUCTURE FLAT WASHERS (4) M4 x 10 (mm) (4) #14 X 2" phillip screws LAG BOLTS SOAD SWING OUT Figure 1. Single Stud Installation (4) M6 x 12 (mm)
-
Page 7: Tension Adjustments
SOAD Tension Adjustments For tension adjustments remove the top plastic covers of the mount and adjust to your needs by using a 14 (mm) socket head wrench and a Phillips screwdriver. replace the plastic cover when you are done. tension... -
Page 8: Technical Specifications
SOAD Technical Specifications 4.95 20.00 5.60 3.14 8.10 10.25 Arm Collapsed 9.87 6.65 12.50 Arm Fully Extended Figure 11. Technical Specifications Page 8 Installation Instructions... -
Page 9: Warranty
Warranty Limited Lifetime Warranty All Premier Mounts products carry a limited lifetime warranty from ship date against defects in materials and workmanship. Premier Mounts is not liable for improper installation that results in damage to mounts, adapters, display equipment or personal injury.
