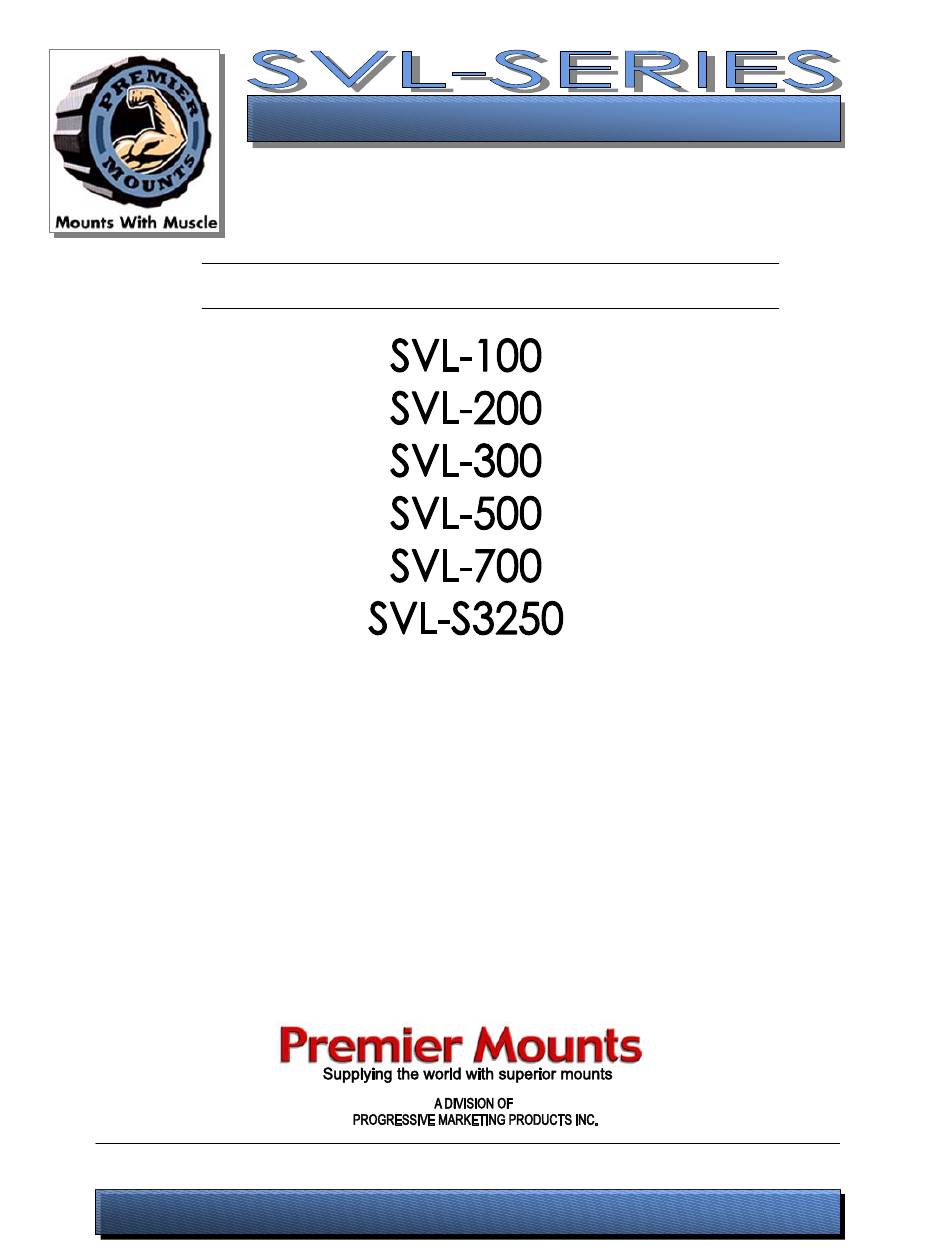

- Page 1 INSTALLATION MANUAL PLASMA DISPLAY MOUNT MODEL 3130 E. Miraloma Ave. Anaheim, CA 92806 Phone: 800 368-9700 Fax: 800 832-4888 VISIT US AT WWW.PREMIERMOUNTS.COM...
- Page 2 The installation instructions should be read, understood and followed to prevent personal injury or property damage. Keep these installation instructions in an easily accessible location for future reference. Indicates that the power plug is to be disconnected from Contact Premier Mounts for any questions the power outlet. Safety precautions must be taken at all times.
- Page 3 Stand diagrams 10.974 13.907 1.187 13.907 7.350 11.432 12.562 22.780 0.448 9.250 12.000 SPECS PART#: SVL Table-top stand COLOR: 5.750 Silver A. Bottom plate B. Covers 5.750 C. Front plate D. Center channel E. (1) Cable access hole F. (3) 5/16" Fixed tabletop mounting points G.
- Page 4 Parts List TOOLS & SUPPLY NEEDED HARDWARE Phillips screwdriver (4) M8 x 20 Phillip screws (4) 5/16"- 18 x 1" Hex head slotted ½" (4) M8 Flat washers (4) 5/16" - 18 x 1¼" Hex head slotted (4) 5/16" Flat washers (4) 5/16"...
- Page 5 Securing the mounting plate Step 3 Secure the mounting-bracket the SVL tabletop stand (8 height adjustable mounting points are found on the front plate, choose the one that will best fit your application). Secure the plate using the four (4) M8 x 20 Phillip head screws and flat washers (supplied). Do not over-tighten the M8 screws. See Fig 3. Front plate Mounting plate M8 Mounting points...
- Page 6 M8 Tension nut SVL Stand Mounting brackets Cable access Table top Thank you for choosing PREMIER MOUNTS INC. for your installation needs. If you have any questions please contact PREMIER MOUNTS INC. Information is shown on the front of this page.
