NORTH AMERICA
3130 East Miraloma Avenue
Anaheim, CA 92806 USA
USA and Canada –
Phone: 800-368-9700
Fax: 800-832-4888
Other Locations – Phone: (001)-714-632-7100; Fax: (001)-714-632-1044
©Premier Mounts 2008
9534-004-003-00

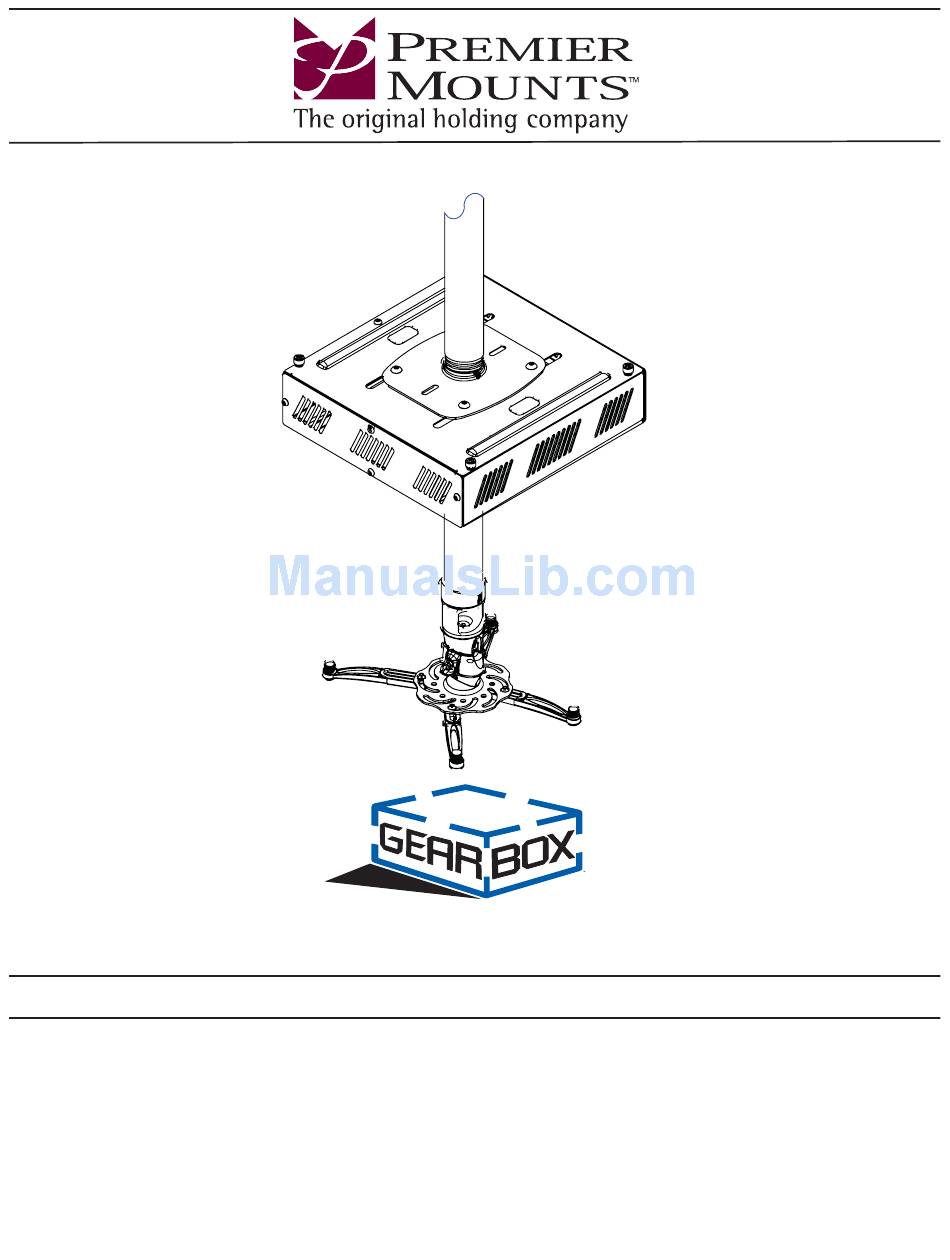

INSTALLATION INSTRUCTIONS
GB-PIPE1/GB-PIPE1B
Pipe-Mounted Equipment Enclosure
EUROPE
Swallow House,
Shilton Industrial Estate,
Shilton, Coventry, England CV79JY
Phone: +44 (0) 2476 614700
Fax: +44 (0) 2476 614710
AUSTRALIA, NEW ZEALAND, OCEANIA
(DISTRIBUTOR)
P.O. Box 295
Mordialloc Victoria 3195
Australia
Phone: 039586 6330
www.premiermounts.com.au
Advertisement
Table of Contents
Related Manuals for Premier Mounts GB-PIPE1
Summary of Contents for Premier Mounts GB-PIPE1
- Page 1 NORTH AMERICA 3130 East Miraloma Avenue Anaheim, CA 92806 USA USA and Canada – Phone: 800-368-9700 Fax: 800-832-4888 Other Locations – Phone: (001)-714-632-7100; Fax: (001)-714-632-1044 ©Premier Mounts 2008 9534-004-003-00 INSTALLATION INSTRUCTIONS GB-PIPE1/GB-PIPE1B Pipe-Mounted Equipment Enclosure EUROPE Swallow House, Shilton Industrial Estate,...
-
Page 2: Table Of Contents
PROPERTY DAMAGE. KEEP THESE INSTALLATION INSTRUCTIONS IN AN EASILY ACCESSIBLE LOCATION FOR FUTURE REFERENCE. PREMIER MOUNTS DOES NOT WARRANT AGAINST DAMAGE CAUSED BY THE USE OF ANY PREMIER MOUNTS PRODUCT FOR PURPOSES OTHER THAN THOSE FOR WHICH IT WAS DESIGNED OR DAMAGE CAUSED BY UNAUTHORIZED... -
Page 3: Parts List
This accessory is shipped with all proper installation hardware and components. Make sure that none of these parts are missing and/or damaged before beginning installation. If there are parts missing and/or damaged, please stop the installation and contact Premier Mounts (800-368-9700). Equipment Tray (Qty 1) -
Page 4: Gb-Pipe1 Installation
GB-PIPE1 Installation The GB-PIPE1 is designed for use with either a standard piece of 1-1/2” NPT pipe or any available ceiling mount adapter from Premier Mounts. Please refer to the ceiling mount adapter installation instructions when mounting. Unpack the Gear Box and review any WARNING statements that apply to the installation. Select the desired location for the GB-PIPE1. -
Page 5: 1-1/2" Npt Installation
GB-PIPE1 Step 6. Lift the equipment tray into position. 1-1/2” NPT Installation Before attaching the lower 1-1/2” NPT, it is strongly recommended that all connections in the equipment tray be made at this time. Once the connections are made, feed the cables through the plate hole and then through the 1-1/2” NPT. Please read instructions below to complete the installation. -
Page 6: Pds-Plus Installation Without Npt (Optional)
M5 Security Screw Wrench M5 Security Wrench M5 x 10mm Security Head Screw Step 4. Insert four (4) M5 x 10mm security screws GB-PIPE1 Mounting Slots base box bridge of the PDS-PLUS. and tighten using the M5 security wrench. Installation Instructions... -
Page 7: Cable Connections
GB-PIPE1 Cable Connections Please refer to the PDS-PLUS Installation Instructions before proceeding with the following steps. Step 1. Pull all cables down through the PDS-PLUS base box. Side Panel Installation Step 1. Attach the two side panels using eight (8) M4 x 8mm security screws. -
Page 8: Lateral Shift Adjustment
Step 2. Once the screws have been loosened, Step 3. When the desired position has been GB-PIPE1 slide the GB-PIPE1 laterally side to side (or front to back). determined, use the M5 security wrench to tighten the M8 x 12mm security screws. -
Page 9: Warranty
What Premier Mounts Will Do At the sole option of Premier Mounts, Premier Mounts will repair or replace any product or product part that is defective. If Premier Mounts chooses to replace a defective product or part, a replacement product or part will be shipped to you at no charge, but you must pay any labor costs.
