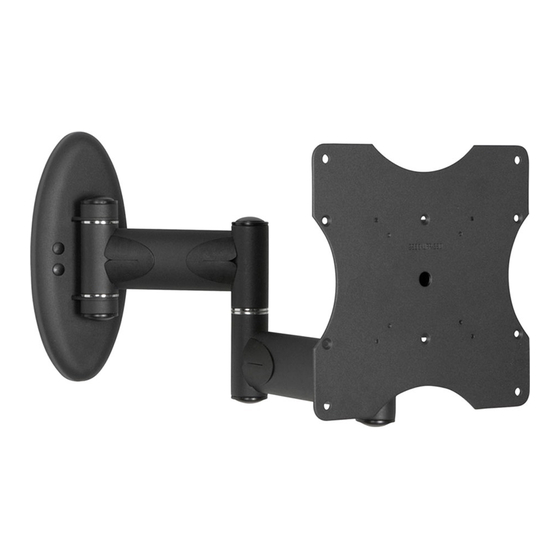

INSTALLATION INSTRUCTIONS
AM50 / AM50-B
Articulating Swingout Arm
NORTH AMERICA
EUROPE
AUSTRALIA AND OCEANIA
3130 East Miraloma Avenue
Swallow House,
Distributed by Amber Technology Limited
Anaheim, CA 92806 USA
Shilton Industrial Estate,
Unit B, 5 Skyline Place
USA and Canada
Shilton, Coventry, England CV79JY
Frenchs Forest NSW 2086
Phone: 1.800.368.9700
Phone: +44 (0) 2476 614700
Australia
Fax: 1.800.832.4888
Phone: +61 2 9452 8600 Sydney Offi ce
Fax: +44 (0) 2476 614710
Other Locations
Toll Free: 1-800-368-9700
Phone: (001).714.632.7100
Email: mounts@ambertech.com.au
Fax: (001).714.632.1044
9531-006-031-00
Advertisement
Table of Contents
Related Manuals for Premier Mounts AM50
Summary of Contents for Premier Mounts AM50

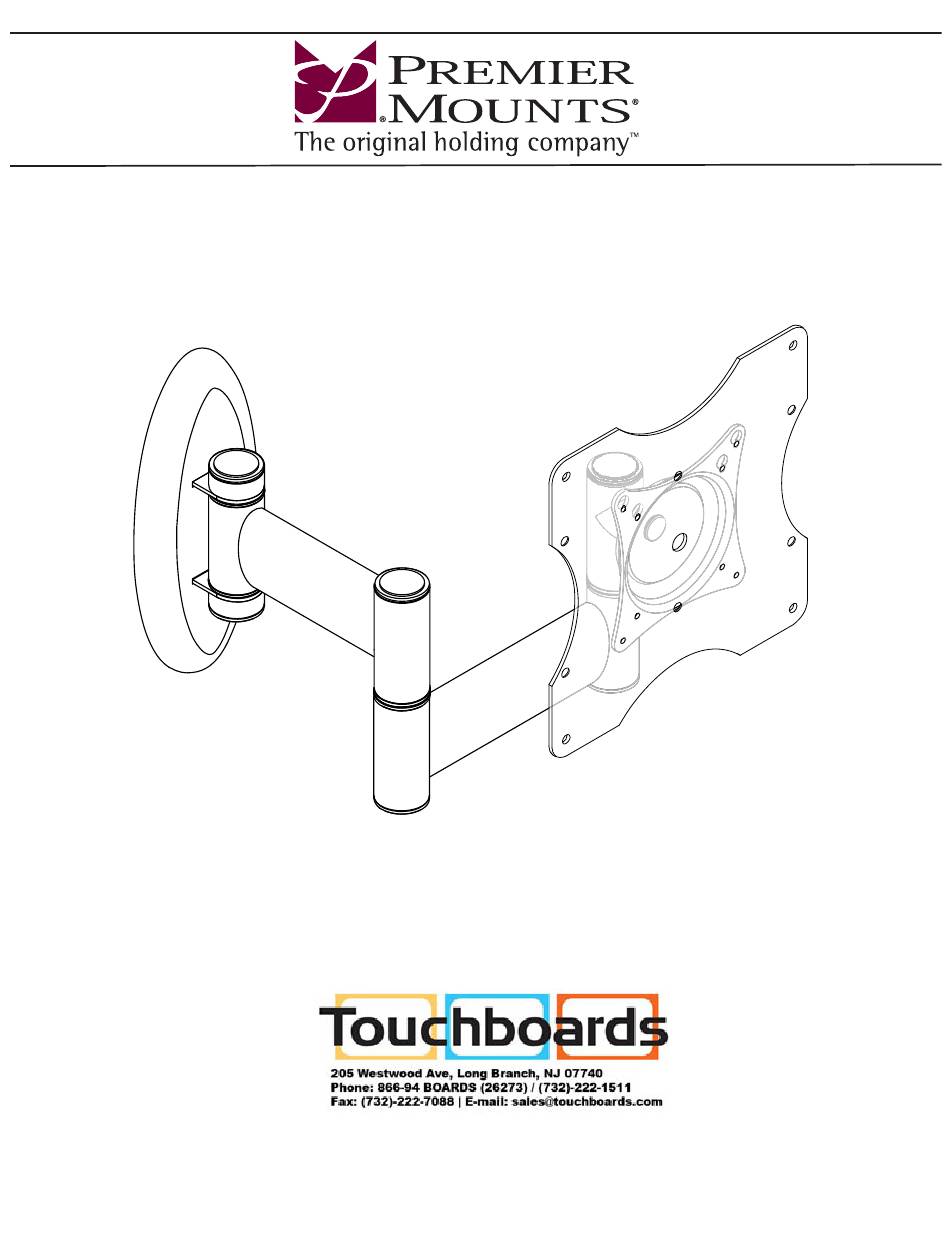

- Page 1 INSTALLATION INSTRUCTIONS AM50 / AM50-B Articulating Swingout Arm NORTH AMERICA EUROPE AUSTRALIA AND OCEANIA 3130 East Miraloma Avenue Swallow House, Distributed by Amber Technology Limited Anaheim, CA 92806 USA Shilton Industrial Estate, Unit B, 5 Skyline Place USA and Canada...
-
Page 2: Table Of Contents
PROPER SAFETY EQUIPMENT AND TOOLS FOR THE ASSEMBLY PROCEDURE TO PREVENT PERSONAL INJURY. PREMIER MOUNTS DOES NOT WARRANT AGAINST DAMAGE CAUSED BY THE USE OF ANY PREMIER MOUNTS PRODUCT FOR PURPOSES OTHER THAN THOSE FOR WHICH IT WAS DESIGNED OR DAMAGE CAUSED BY... -
Page 3: Installation Tools
** Optional tools for concrete installations. Parts List Your Premier Mounts product is shipped with all proper installation hardware and components. Make sure that none of these parts are missing and/or damaged before beginning installation. If there are parts missing and/or damaged, please stop the installation and contact Premier Mounts (800) 368-9700. -
Page 4: Mounting Hardware
M6 x 16mm Screw M4 x 10mm Screw (Qty 4) (Qty 4) M6 x 20mm Screw (Qty 4) M6 x 30mm Screw (Qty 4) M6 x 45mm Screw (Qty 4) Page 4 Installation Instructions Visit the Premier Mounts website at http://www.premiermounts.com... -
Page 5: Features
Universal Spacers Premier Mount’s uniquely designed spacers that fi t multiple screw sizes, and work with either the AM50 mount or the UFP-280 Adapter Plate. Adjustable Tension Your fl at panel stays at the angle you choose regardless of size or weight. -
Page 6: Installing The Wall Plate
Determining the Mounting Surface If you will be installing your AM50 mount to wood studs, proceed to the “Wood Stud Installation” section. If you will be installing your AM50 mount to a concrete wall, proceed to the “Concrete Installation” section. -
Page 7: Concrete Installation
You will need a ″ masonry drill bit, which is available at your closest hardware store. Concrete Wedge Anchors ″ Example of Masonry Drill Bit (Not Included) Installation Instructions Page 7 Visit the Premier Mounts website at http://www.premiermounts.com... - Page 8 1) Insert a concrete wedge anchor into each hole. If necessary, lightly tap each concrete wedge anchor into place with a hammer. 2) Remove the nuts and washers from all four (4) concrete wedge anchors. Page 8 Installation Instructions Visit the Premier Mounts website at http://www.premiermounts.com...
-
Page 9: Mounting Hardware
Any obstruction near the mount point? If Yes, you must install Universal Spacers. Proceed to the “Universal Spacer Installation” section. If No, skip to the “UFP-280 Adapter Plate Installation” section. Installation Instructions Page 9 Visit the Premier Mounts website at http://www.premiermounts.com... -
Page 10: Universal Spacer Installation
fl at washers..and you selected M5 screws from the “Selecting the Mounting Hardware” section, you must also use M5 fl at washers. Proceed to the “Attaching the AM50 Mount to the Wall Plate” section. Page 10 Installation Instructions Visit the Premier Mounts website at http://www.premiermounts.com... -
Page 11: Attaching The Am50 Mount To The Wall Plate
Attaching the AM50 Mount to the Wall Plate Your AM50 mount must be attached to the back plate that is secured to the wall. The back of your AM50 mount has a built-in bracket designed to “hang” on the wall plate. -
Page 12: Attaching The Flat Panel To The Am50 Mount
3) Insert two (2) M4 screws, of the proper length for your installation, into the bottom mounting points. 4) Tighten all M4 screws. Do not overtighten the mounting hardware. Proceed to the “Adjusting the AM50 Mount Tension” section. Flat Panel without UFP-280 Adapter Plate Flat Panel with UFP-280 Adapter Plate... -
Page 13: Adjusting The Am50 Mount Tension
AM50 Adjusting the AM50 Mount Tension Adjusting the Swingout Arm Tension Your AM50 Articulating Swingout Arm ships from the factory pre-tensioned. However, you can make fi ne-tune adjustments to how much pressure is required to move each section of the swingout arm by adjusting the three joint tension nuts. -
Page 14: Am50 Cable Management
1) Remove the four plastic covers. 2) Route power or signal cables as shown. 3) Replace the four plastic covers. The V-shape in the plastic covers allows power and signal cables to emerge from your AM50 while still maintaining a clean appearance. Page 14 Installation Instructions Visit the Premier Mounts website at http://www.premiermounts.com... -
Page 15: Technical Specifi Cations
D: 200mm x 200mm mounting points. (If M4 screws are used, M4 washers must be used as well) (If M5 screws are used, M5 washers must be used as well) Installation Instructions Page 15 Visit the Premier Mounts website at http://www.premiermounts.com... -
Page 16: Warranty
What Premier Mounts Will Do At the sole option of Premier Mounts, Premier Mounts will repair or replace any product or product part that is defective. If Premier Mounts chooses to replace a defective product or part, a replacement product or part will be shipped to you at no charge, but you must pay any labor costs.
