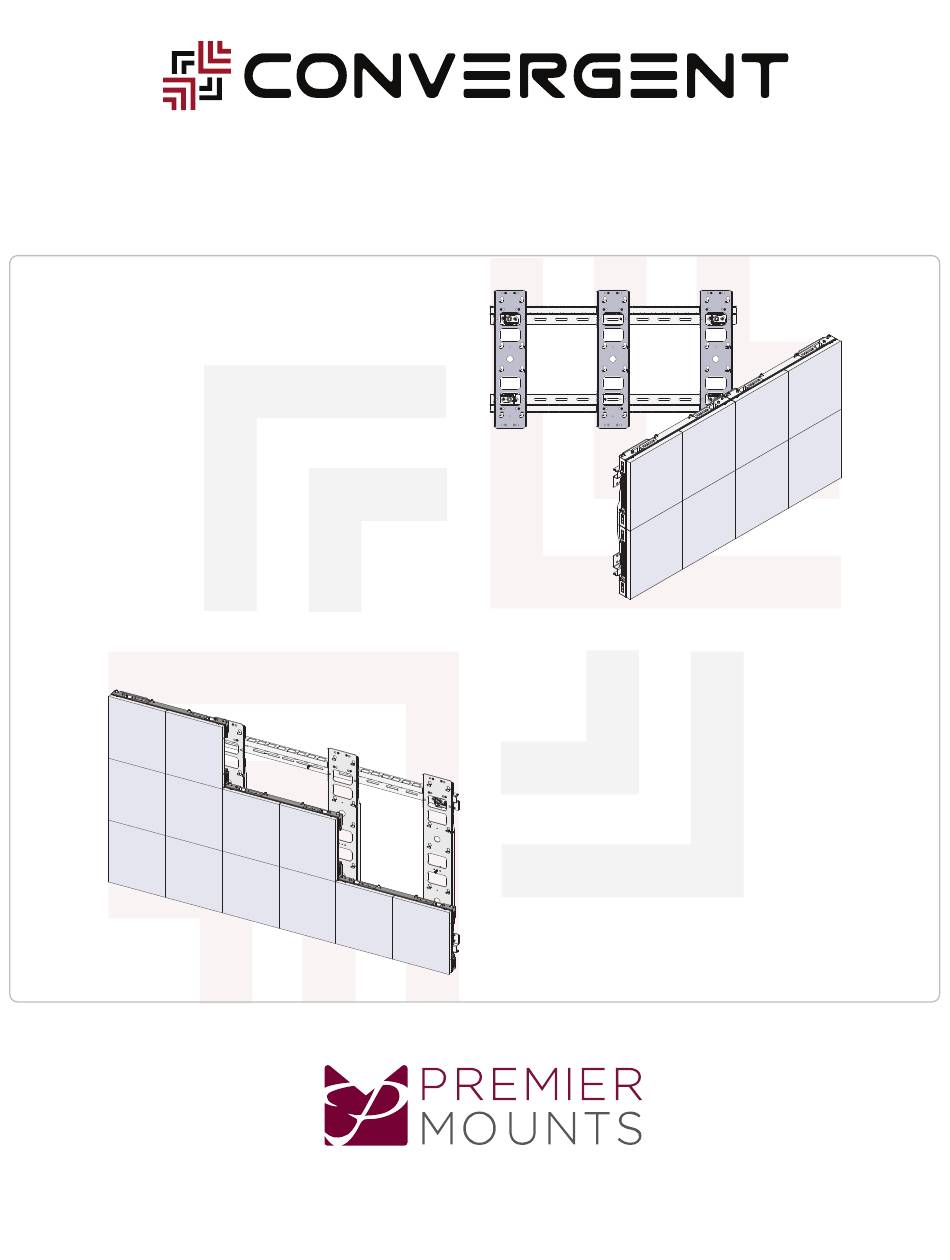

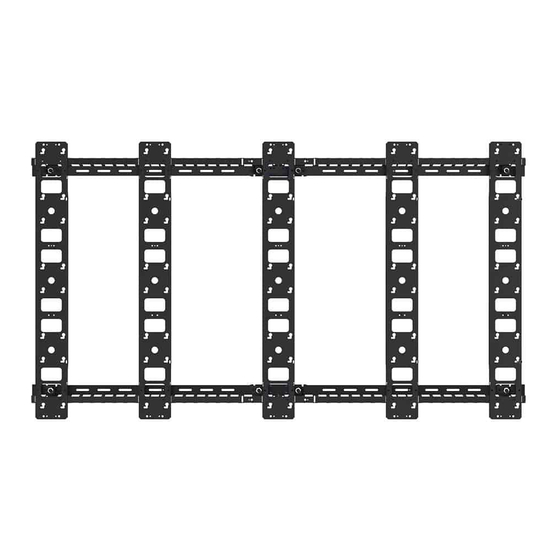

- Page 1 SERIES: A-A27 INSTALLATION GUIDE Convergent Series Video Wall Mount For Absen Acclaim A27 LED Cabinets www.premiermounts.com | North America 800.368.9700 | International +1-714-632-7100 9500314 v1.0 2620 Palisades Drive, Corona, CA 92882 USA publ. 06/22/20...
-
Page 2: Caution Statements
4. ALL LED CABINETS MUST BE POWER ON TESTED PRIOR TO ANY INSTALLATION. 5. PREMIER MOUNTS RECOMMENDS THE HANDLING LED CABINETS BY AN INDUSTRY QUALIFIED PROFESSIONAL. 6. PREMIER MOUNTS IS NOT RESPONSIBLE FOR DEFECTS, MISUSE, OR IMPROPER HANDLING OF THE LED CABINETS. Tools for Installation: 00.0... - Page 3 ABSEN A27 - Installation Guide VIDEO WALL DIMENSIONS AND MOUNTING LOCATIONS OVERALL WIDTH Available Rail Size X OVERALL HEIGHT LASER LEVEL The overall dimensions of any video wall array can be Available Imperial Metric calculated by using the table within this page. Sizes (Inches) (Milimeters)
- Page 4 - ABSEN A27 Installation Guide ITEM #. PART NO. DESCRIPTION 4000-306-121-LX Vertical Rail 1V 4000-306-112-LX Horizontal Rail 2H 4000-306-122-LX Vertical Rail 2V 4000-306-113-LX Horizontal Rail 3H 4000-306-123-LX Vertical Rail 3V 4000-306-124-LX Vertical Rail 4V 4000-306-125-LX Vertical Rail 5V 2 WIDE 3 WIDE 1 HIGH 2 HIGH...
-
Page 5: Pre-Installation
ABSEN A27 - Installation Guide PRE-INSTALLATION STANDARD MOUNTING PROCEDURE Horizontal Rail 1. Attach the Adjustment Bracket to every 5/8”-11 x 1.5” mounting location (Horizontal Rail) prior to the Bolt With Hole installation of the mount, as shown. 2. Loosely fasten the M6 x 35mm Socket Head M5 x 8mm to the bracket. -
Page 6: Assemble The Frame
- ABSEN A27 Installation Guide ASSEMBLE THE FRAME Horizontal Rail End position (as shown) (4) M5 x 6mm Flat head per Rail Vertical Rail Center positon (see page 8) This bracket is mounted in the center position if another pair of horizontals is used side by side. - Page 7 ABSEN A27 - Installation Guide 1. Install a few support screws to hold the mount roughly near the desired location. 2. Place a level on top of the mount and readjust the support screws if necessary. 3. Secure the first mounting location by sliding a Wall Anchor Plate behind the mount and fasten using 5/16”...
- Page 8 - ABSEN A27 Installation Guide Multiple Unit Configuration Extend Horizontally To extend the width of the unit, follow the steps below. 1. Hang and position the second Horizontal Rail side by side. 2. Place a support screw while maintaining a leveled horizontal rail to temporary hold in place. 3.
- Page 9 ABSEN A27 - Installation Guide Multiple Unit Configuration Extend Vertically To extend the height of the unit, follow the steps below. 1. Position multiple units adjust to each other. 2. Join the units together using multiple Connector Brackets (per rail) and fasten using (4) M5 x 6mm Flat Head Screw per.
- Page 10 - ABSEN A27 Installation Guide SQUARE AND LEVEL Inspect each bracket using a Square and Level tool. 00.0 LASER / LEVEL FINETUNE THE RAIL FOR FLATNESS 1. Install wherever possible. 2. Use drywall or wood screws to pull the brackets towards the wall. 3.
-
Page 11: Very Important
ABSEN A27 - Installation Guide VERY IMPORTANT! VERIFYING THE DIAGONAL MEASUREMENTS FOR SQUARENESS Distance 1 The two diagonal measured distances must match Distance 2 1. Measure the distance from corner to corner with a measuring tape. 2. Measure diagonally opposite and verify the diagonal measurements. 3. - Page 12 - ABSEN A27 Installation Guide VERIFYING THE MOUNT FOR FLATNESS 1. Tie a string from one end to the other end of the entire array. 2. Tie horizontally and crisscross, especially for large video wall array. 3. Inspect for any gaps between the brackets and the string. 4.
- Page 13 ABSEN A27 - Installation Guide POST-LEVEL ADJUSTMENT LASER / LEVEL Up / Down Adjust the level by loosen or tighten the screw located on either the top OR bottom corner location of the mount. NOTES: If using the additional slots for mounting points, make sure that the floating frame is fully level to the wall vertically and horizontally.
- Page 14 - ABSEN A27 Installation Guide ABSEN ACCLAIM A27 LED DISPLAY INSTALLATION MANUAL must be read in conjunction with the recommended steps below. LED Cabinets to be handled by industry qualified professional. Improper installation may cause damage to the LEDs. 1. Mount the LED Cabinets via keyhole mounting starting from bottom left row, then the upper rows, and the remaining right column of the video wall array.
- Page 15 1. Products must be packed securely to insure no further damage upon arrival at Premier Mounts\PDS. Improperly packaged items will be considered non-warranty. 2. Line rejects must be shipped to Premier Mounts\PDS in a separate box using a separate RMA number from any field rejects.
