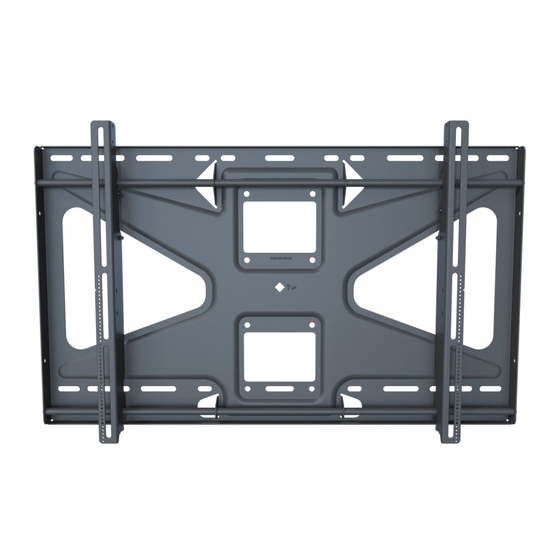

Tilting wall mount for 37˝ to 63˝ flat panels
Hide thumbs Also See for CTM-MS2:
Table of Contents

Advertisement

Quick Links

Download this manual

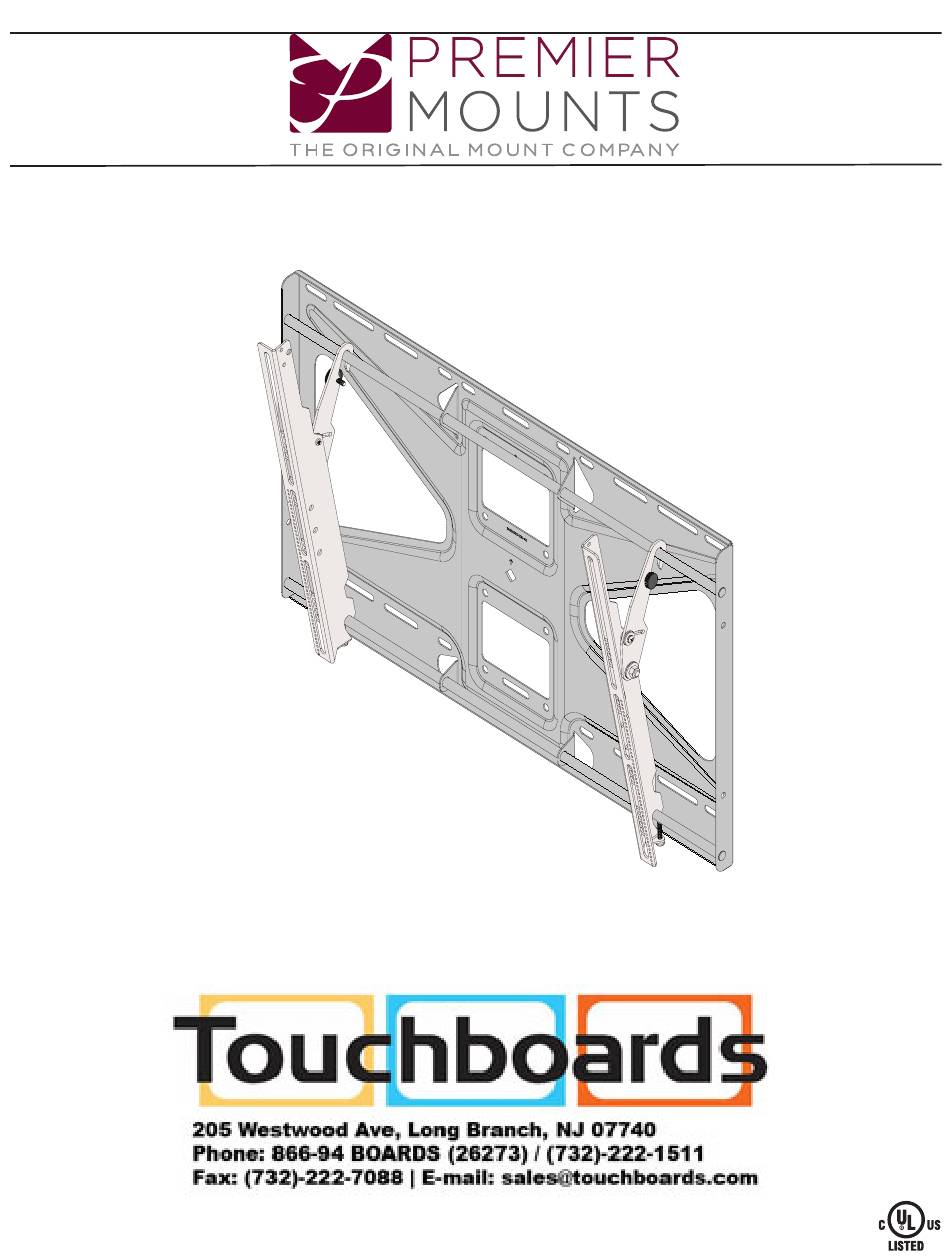

INSTALLATION INSTRUCTIONS
Tilting Wall Mount for 37˝ to 63˝ Flat Panels
Model: CTM-MS2
WORLD HEADQUARTERS
1321 S. State College Blvd.
Fullerton, CA 92831 USA
USA and Canada
Phone: 1-800-368-9700
Fax: 1-800-832-4888
Other Locations
Phone: (001) 714-632-7100
Fax: (001) 714-632-1044
9531-000-311-0X Rev. 9
