ISO DIN radio provision
1. Remove the metal DIN sleeve and trim
ring from the aftermarket radio.

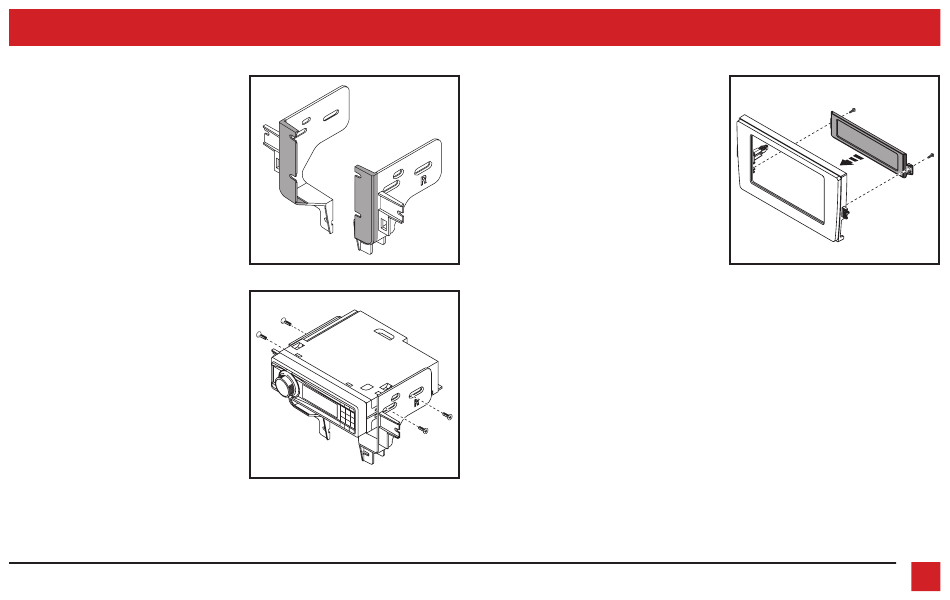

2. Cut the radio brackets at the scored line.
(Figure A)
3. Secure the radio brackets to the radio
using screws supplied with the radio.
(Figure B)
4. Locate the factory wiring harness and
antenna connector at the radio location
above the glove-box. Complete all
necessary connections to the radio.
Metra recommends using the proper
mating adapter from Metra and/
or Axxess. Test the radio for proper
operation.
KIT ASSEMBLY
Remove sheded area
(Figure A)
(Figure B)
5. Slide the radio assembly into the dash,
then secure using (2) #8 x 1/2" Phillips
truss-head screws up top, and (2) #8 x
3/8" Phillips truss-head down below.
6. Secure the blank panel to the radio
trim panel using (2) #4 x 3/8" Phillips
pan-head screws provided. (Figure C)
7. Clip the radio trim panel onto the radio
assembly.
8. Reassemble the dash in reverse
order of disassembly to complete the
installation.
(Figure C)
REV. 10/10/2019 INST99-9014HG
