Metra 95-7618G Manual

KIT FEATURES

Double DIN Head unit provisions
Painted Grey to match factory dash

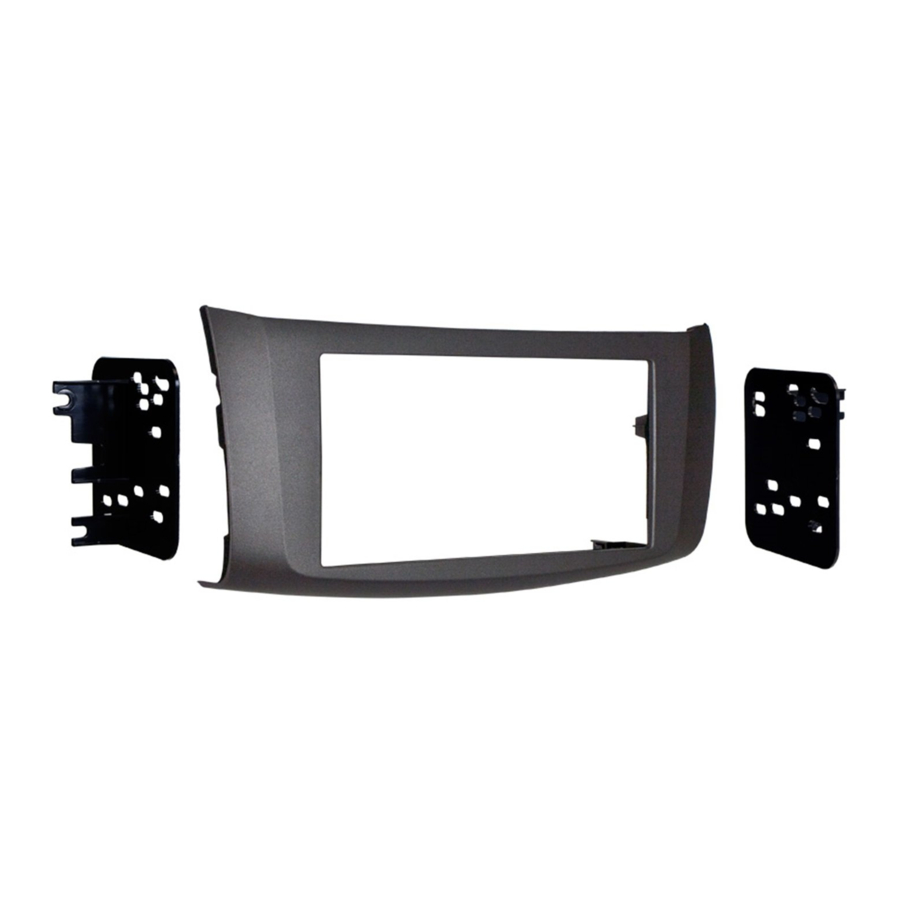

KIT COMPONENTS

Radio Trim Panel
Radio Brackets
(4) White Panel Clips

WIRING & ANTENNA CONNECTIONS

(sold separately)
Wiring Harness: • 70-7552 2010-Up Nissan Harness
Antenna Adapter: • 40-NI12 2010-Up Nissan Antenna Adapter

TOOLS REQUIRED

Panel removal tool
Phillips screwdriver
Socket Wrench

Metra recommends disconnecting the negative battery terminal before beginning any installation. All accessories, switches, and especially air bag indicator lights must be plugged in before reconnecting the battery or cycling the ignition.

NOTE: Refer to the instructions included with the aftermarket radio.

DASH DISASSEMBLY

Unclip and remove the trim panel surrounding the radio. (Figure A)
Remove (4) Phillips screws securing the radio. (Figure B)

Continue to kit assembly

KIT ASSEMBLY

Double DIN head unit provisions

Attach the (4) white panel clips to the radio housing
Attach the radio brackets to the aftermarket DDIN radio with the screws supplied with the radio. (Figure A)
Locate the factory wiring harness and antenna plug in the dash. Metra recommends using the proper mating adapters from Metra and/or AXXESS.
Reassemble dash in reverse order of disassembly using the 95-7618G radio trim panel instead of the factory panel.
