Metra 95-7321 Manual

APPLICATIONS

Hyundai Accent 2006-2011
Kia Rio/RIO 5 2006-up
Kia Sportage 2005-2010
95-7321

KIT FEATURES

• DDIN head unit provision
• ISO stacked head unit provision

KIT COMPONENTS

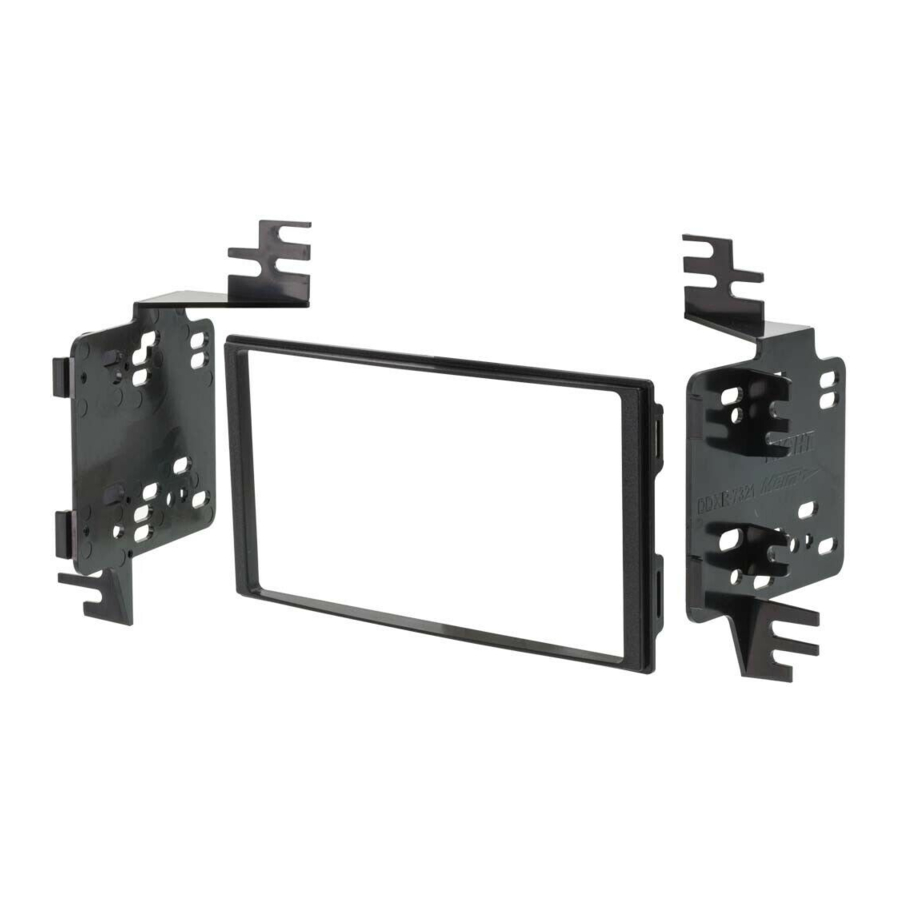

1. DDIN radio housing
2. DDIN radio housing brackets

WIRING & ANTENNA CONNECTIONS

(Sold Separately)

Wiring Harness:

• 70-7303 Hyundai/Kia Harness 2009
• 70-1004 Hyundai 2006-up/KIA harness 2004-up

Antenna Adapter:

• 40-KI11 KIA antenna adapter 2007-up
• 40-KI10 KIA antenna adapter 2007-up

TOOLS REQUIRED

• Panel Removal Tool
• Phillips Screwdriver
• Small Flat Blade Screwdriver
• Cutting Tool

Metra recommends disconnecting the negative battery terminal before beginning any installation. All accessories, switches, and especially air bag indicator lights must be plugged in before reconnecting the battery or cycling the ignition.

NOTE: Refer also to the instructions included with the aftermarket radio.

Dash Disassembly 95-7321

Hyundai Accent 2006-2011, Kia Rio/RIO 5 2006-up

1. Unclip and remove the trim panel surrounding the radio and including the a/c vents. (Figure A)

   (Figure A)
2. Remove (4) Phillips screws securing the radio. (Figure B)

   (Figure B)

Continue to kit preparation

Kia Sportage 2005-2010

1. Unclip and remove the entire panel surrounding the radio and including the A/C controls.
   Note: Start at bottom of panel. (Figure A)

   (Figure A)
2. Remove (4) Phillips screws to extract radio from dash. (Figure B)

   (Figure B)

Continue to kit preparation

Kit Preparation

95-7321

1. Hyundai Accent: Cut and remove shaded areas. (Figure A)

   (Figure A)
2. Kia Rio: Cut and remove shaded areas. (Figure B)

   (Figure B)
3. Kia Sportage: Cut and remove shaded areas. (Figure C)

   (Figure C)

Continue to kit assembly

Kit Assembly 95-7321

Double DIN/stacked ISO DIN head unit provision

1. Locate the factory wiring harness in the dash. Metra recommends using the proper mating adapter from Metra or AXXESS. Re-connect the negative battery terminal and test the unit for proper operation.
2. Attach the Double DIN brackets to the inside edge of the Double DIN trim plate. (Figure A)

   (Figure A)
3. Slide the Double DIN head unit or stacked ISO head units into the bracket/ radio housing assembly and secure the Double DIN head unit or stacked ISO head units to the assembly using the screws supplied with the radio. (Figure B)

   (Figure B)
4. Reassemble dash in reverse order of disassembly.
