AUDI A4/A6/A8 1996-1999
KIT FEATURES
• DIN radio provision
KIT COMPONENTS
• A) Trim plate (a) • B) Trim plate (b) • C) (2) Screw caps
A
B
WIRING & ANTENNA CONNECTIONS (sold separately)
Wiring Harness: • Please visit metraonline.com for more information
Antenna Adapter: • Please visit metraonline.com for more information
TOOLS REQUIRED
• 86-9001 radio removal keys • Pry tool
METRA. The World's best kits.

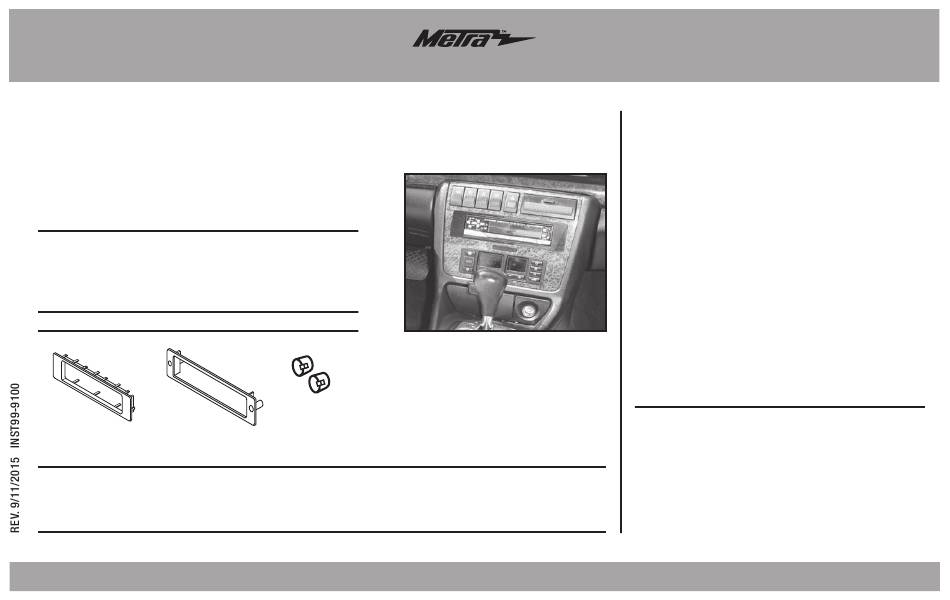

Installation instructions for part 99-9100
TT 2000-2006
99-9100
C
™
metraonline.com
Table of Contents
Dash Disassembly ................................................. 2
Kit Assembly
– A4/A6/A8 1996-1999 ........................................... 3
– TT 2000-2006...................................................... 3
CAUTION!
Metra recommends disconnecting the negative bat -
tery terminal before beginning any installation, unless the vehicle
manufacturer recommends against so. Please check with your local
Dealership for more information. All accessories, switches, climate
controls panels, and especially air bag indicator lights must be con -
nected before reconnecting the battery or cycling the ignition. Also,
do not remove the factory radio with the key in the on position, or the
vehicle running. It would be best to remove the key from the ignition
and then wait a few seconds before removing the factory radio.
