INSTALLATION INSTRUCTIONS FOR PART 99-9500
APPLICATIONS
JAGUAR S-TYPE
2003-2006
JAGUAR X-TYPE
2002-2007
99-9500
KIT FEATURES
• DIN Radio Provision
with Removable Pocket
KIT COMPONENTS
A) Radio Housing B) Pocket
A
B
TOOLS REQUIRED:
Small Flat Blade Screwdriver/ Panel Removal Tool
• Torx Screwdriver • Socket Set
1-800-221-0932
www.metraonline.com
© COPYRIGHT 2007 METRA ELECTRONICS CORPORATION
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Metra Electronics 99-9500
Summary of Contents for Metra Electronics 99-9500

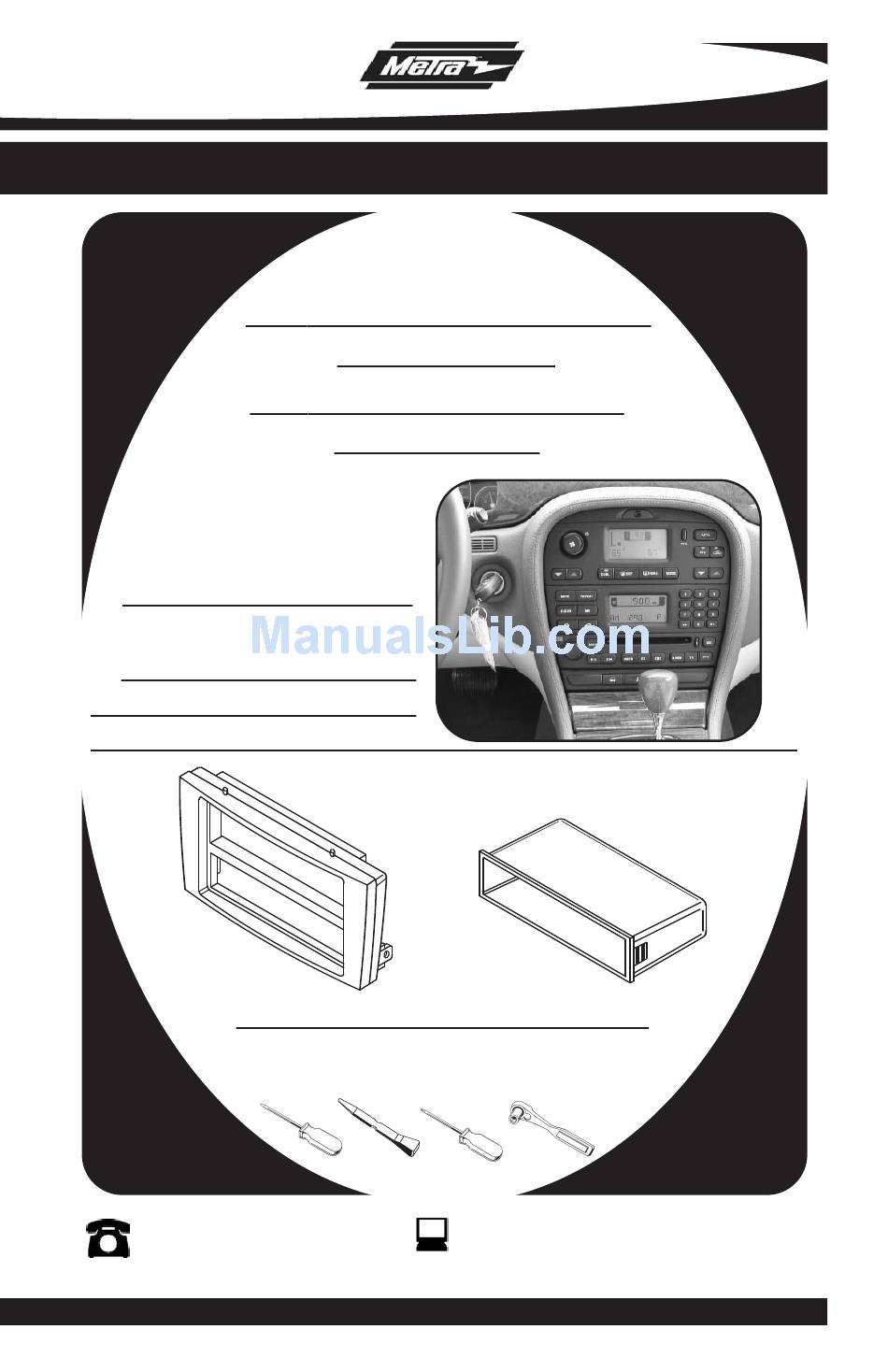

- Page 1 INSTALLATION INSTRUCTIONS FOR PART 99-9500 APPLICATIONS JAGUAR S-TYPE 2003-2006 JAGUAR X-TYPE 2002-2007 99-9500 KIT FEATURES • DIN Radio Provision with Removable Pocket KIT COMPONENTS A) Radio Housing B) Pocket TOOLS REQUIRED: Small Flat Blade Screwdriver/ Panel Removal Tool • Torx Screwdriver • Socket Set 1-800-221-0932 www.metraonline.com...
- Page 2 99-9500 T ABLE OF CONTENTS Dash Disassembly - Jaguar S-Type 2003-2006 ......1,2 - Jaguar X-Type 2002-2007 ......3,4 Kit Assembly - DIN Radio Provision with Removable Pocket .
-
Page 3: Jaguar S-Type 2003-2006
99-9500 DASH DISASSEMBL Y JAGUAR S-TYPE 2003-2006 isconnect the negative battery ter- minal to prevent an accidental short circuit. Remove cup holder and (2) screws securing center console storage com- partment and remove compartment. (Figure A) Unclip and remove the trim panel around the shifter. - Page 4 99-9500 DASH DISASSEMBL Y JAGUAR S-TYPE 2003-2006 Unclip and remove the trim panel sur- rounding the radio/climate controls/ashtray and front half of the center console. (Figure C) Remove (4) screws securing the radio/climate control assembly to the dash. Unplug and remove assembly.
-
Page 5: Jaguar X-Type 2002-2007
99-9500 DASH DISASSEMBL Y JAGUAR X-TYPE 2002-2007 isconnect the negative battery ter- minal to prevent an accidental short circuit. Unclip and remove the trim panel around the shifter. (Figure A) Remove (2) screws from bottom edge of ashtray assembly then unclip and remove ashtray assembly. - Page 6 99-9500 DASH DISASSEMBL Y JAGUAR X-TYPE 2002-2007 Unclip, unplug and remove hazard switch/seat heater switch trim panel above climate control/radio assembly. (Figure D) Remove (2) screws from inside switch panel cavity at top edge of cli- mate controls. (Figure E) Unplug and remove the climate con- trol/radio assembly.
-
Page 7: Din Radio Provision With Removable Pocket
99-9500 KIT ASSEMBL Y DIN RADIO PROVISION-REMOVABLE POCKET JAGUAR S-TYPE 2003-06/X-TYPE 2002-07 Note: Refer also to the instructions included with the aftermarket radio. Mount the factory climate controls assembly to the radio housing. (Figure A) Slide the DIN cage into the bottom of... -
Page 8: Final Assembly
99-9500 FINAL ASSEMBL Y FINAL ASSEMBL Y (A) Strip wire ends back 1/2" B) Twist ends together C) Solder D) Tape Locate the factory wiring harness in the dash. Metra recommends using the proper mating adapter and making connections as shown. (Isolate and individ- ually tape off the ends of any unused wires to prevent electrical short circuit.) - Page 9 99-9500 NOTES...
- Page 10 99-9500 NOTES...
- Page 11 99-9500 NOTES...
- Page 12 99-9500 INSTRUCTIONS www.metraonline.com 1-800-221-0932 REV. 11/26/07 © COPYRIGHT 2007 METRA ELECTRONICS CORPORATION INST99-9500...
