Pioneer Modular DDIN radio provision
Note: For steps 1 and 2, reference the
installation manual provided with the radio
for which hardware to use. The display
screen and radio chassis use two different
types of screws.

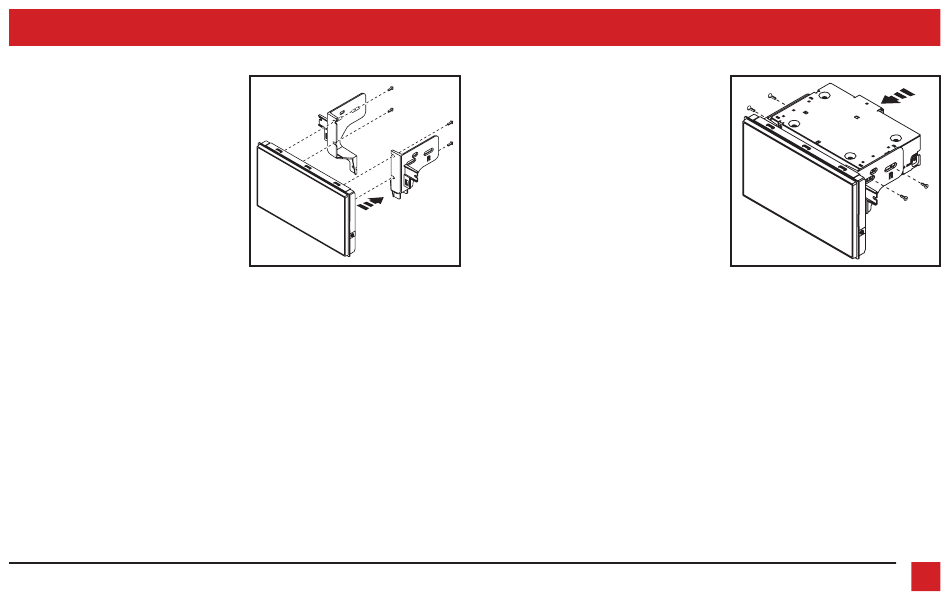

1. Secure the Pioneer radio display to the
radio brackets using (4) screws supplied
with the radio. (Figure A)
2. Slide the Pioneer radio chassis between
the radio brackets, then secure using (4)
screws supplied with the radio.
(Figure B)
3. Locate the factory wiring harness and
antenna connector at the radio location
above the glove-box. Complete all
necessary connections to the radio.
Metra recommends using the proper
mating adapter from Metra and/
or Axxess. Test the radio for proper
operation.
KIT ASSEMBLY
(Figure A)
4. Slide the Pioneer radio assembly into
the dash, then secure using (2) #8 x 1/2"
Phillips truss-head screws up top, and
(2) #8 x 3/8" Phillips truss-head down
below.
5. Clip the radio trim panel to the Pioneer
radio assembly.
6. Reassemble the dash in reverse
order of disassembly to complete the
installation.
(Figure B)
REV. 10/10/2019 INST99-9014HG
7
