Metra 95-7895 Manual

KIT FEATURES

  • DDIN Head Unit Provision
  • ISO Stacked Head Unit Provision

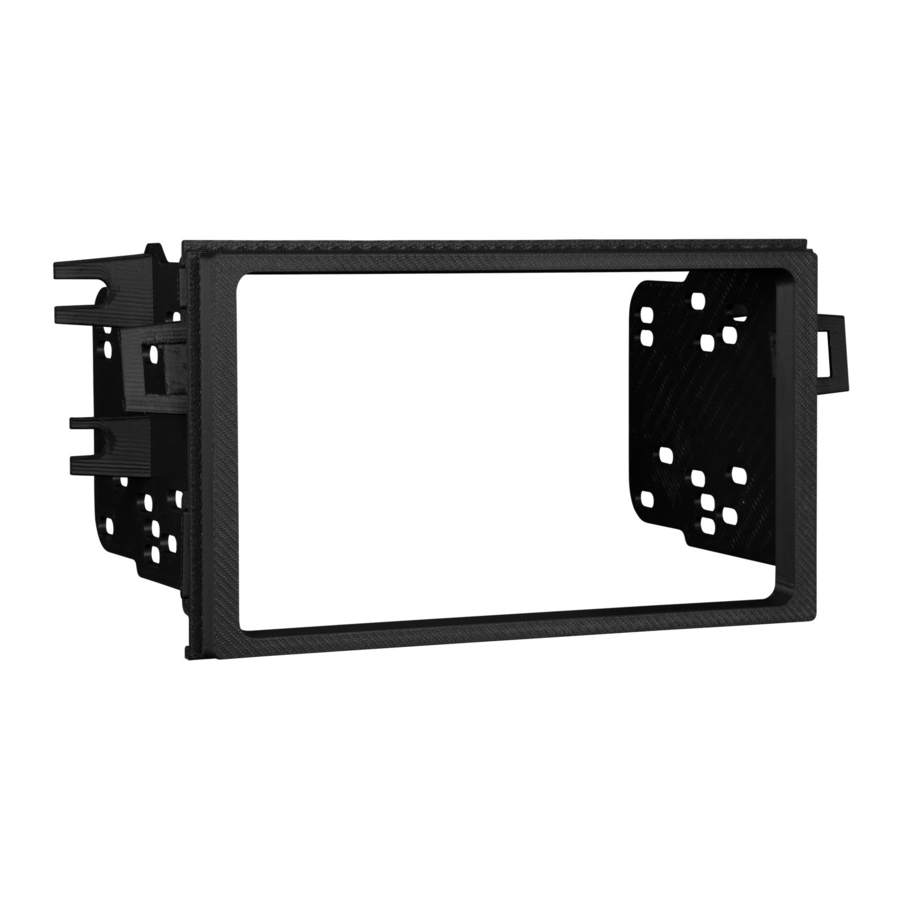

KIT COMPONENTS

KIT COMPONENTS

  1. Double DIN Brackets
  2. Double DIN Trim Plate

WIRING AND ANTENNA CONNECTIONS

(Sold Separately)

Harness:

  • 70-1721 - Honda Harness 1998-up

TOOLS REQUIRED

  • Small Flat Blade Screwdriver
  • Panel Removal Tool
  • Phillips Screwdriver

warning Note:
Refer also to the instructions included with the aftermarket radio.

DASH DISASSEMBLY

HONDA ACCORD 1998 - 2002

  1. Disconnect the negative battery terminal to prevent an accidental short circuit.
  2. Unsnap the clock panel, disconnect the wiring and remove. (Figure A)
    DASH DISASSEMBLY - HONDA ACCORD 1998 - 2002
  3. Remove (1) Phillips screw exposed in the clock cavity. (Figure A)
  4. Remove (2) Phillips screws below the factory head unit. (Figure A)
  5. Unclip the radio trim bezel and disconnect the wiring.
  6. Remove (4) Phillips screws securing the factory head unit assembly and disconnect the wiring.

Continue to kit assembly.

KIT ASSEMBLY

DOUBLE DIN / STACKED ISO DIN HEAD UNIT PROVISIONS

warning Note:
Refer also to the instructions included with the aftermarket radio.

  1. Locate the factory wiring harness in the dash. Metra recommends using the proper mating adapter from Metra or AXXESS. Re-connect the negative battery terminal and test the unit for proper operation.
  2. Attach the Double DIN brackets to the edge of the Double DIN trim plate. (Figure A)

    Fig. A
  3. Slide the Double DIN head unit or stacked ISO head units into the bracket/trim plate assembly and secure the Double DIN head unit or stacked ISO head units to the assembly using the screws supplied with the radio. (Figure B)
    KIT ASSEMBLY
    Fig. B
  4. Reassemble dash in reverse order of disassembly.

1-800-221-0932

www.metraonline.com
