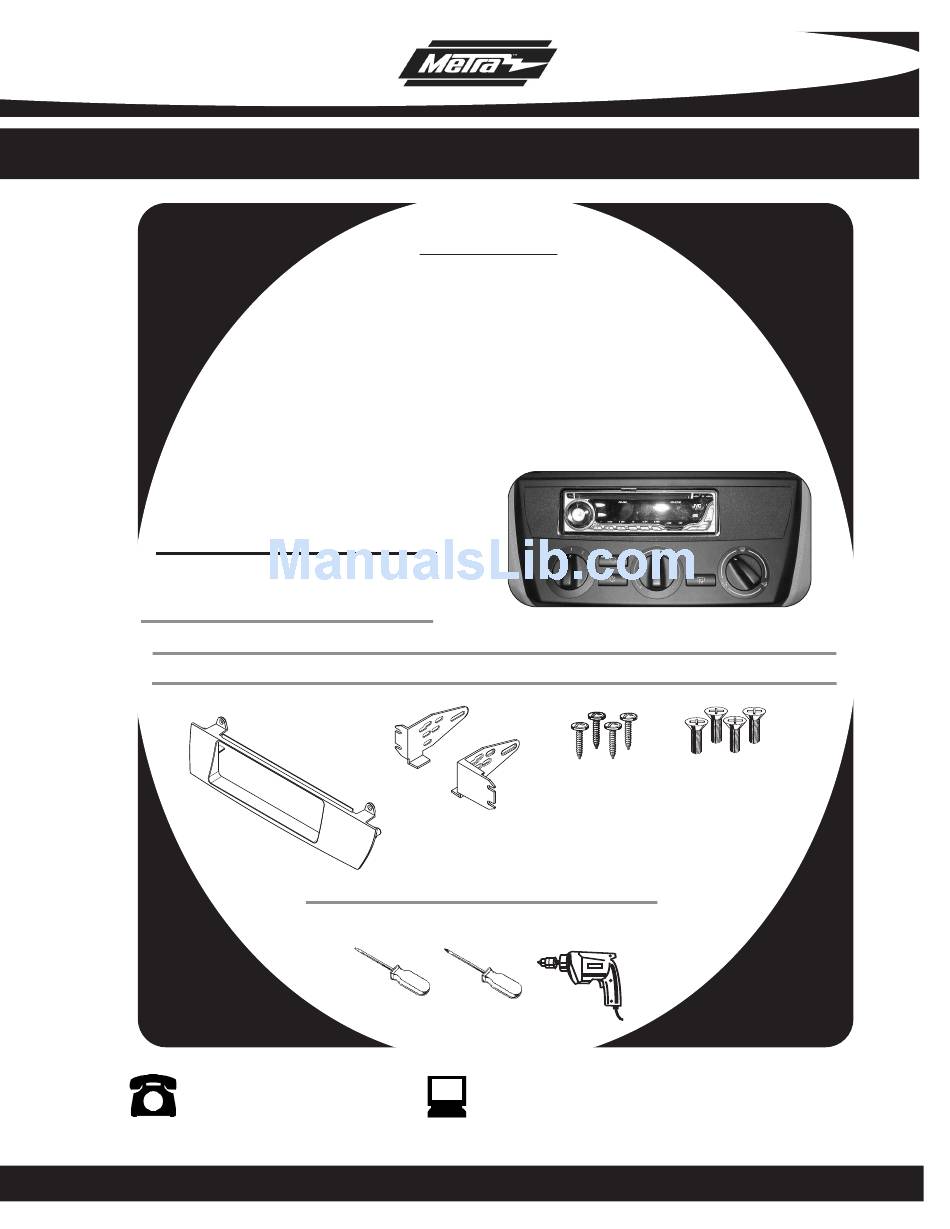

INSTALLATION INSTRUCTIONS FOR PART 99-9305

99-9305

KIT FEATURES

• ISO DIN Head Unit Provision

KIT COMPONENTS

A) Radio Housing • B) ISO Brackets • C) (4) Phillips Screws • D) (4) Phillips ISO Screws

1-800-221-0932

APPLICATIONS

BMW X3

2004-2010

(NON-NAV MODELS)

TOOLS REQUIRED:

Flat Blade Screwdriver • Phillips Screwdriver • Drill

www.metraonline.com

WIRING AND ANTENNA CONNECTIONS

(Sold Separately)

• 40-EU10 - European antenna adapter

• 70-9003 - European wire harness

Page 1 INSTALLATION INSTRUCTIONS FOR PART 99-9305 99-9305 KIT FEATURES • ISO DIN Head Unit Provision KIT COMPONENTS A) Radio Housing • B) ISO Brackets • C) (4) Phillips Screws • D) (4) Phillips ISO Screws Flat Blade Screwdriver • Phillips Screwdriver • Drill 1-800-221-0932 ©...
Page 2 99-9305 TABLE OF CONTENTS Dash Disassembly 2004-2010 BMW X3... 1 Kit Assembly ... 2 Final Assembly ... 3...
Page 3 99-9305 BMW X3 2004-2010 Disconnect the negative battery terminal to prevent an accidental short circuit. Unclip and remove the hazard/door lock switch. (Figure A) Unclip and remove the a/c vents above the radio. ( Figure B) Remove (2) Phillips screws on top of the radio/climate control panel fac- ing down.
Page 4: Kit Assembly
99-9305 ISO DIN HEAD UNIT PROVISION Secure the corresponding bracket to the aftermarket radio using the hardware supplied with the radio. (Figure A) NOTE: If the ISO screws supplied with the aftermarket radio are too big, use the supplied (4) Phillips ISO screws.
Page 5: Final Assembly
99-9305 FINAL ASSEMBLY 1 Locate the factory wiring harness in the dash and make the connection as shown. Metra recomends using the proper mating adapter and making the connections as shown. (Isolate and individually tape off the ends of any unused wires to prevent electrical short circuit.)
