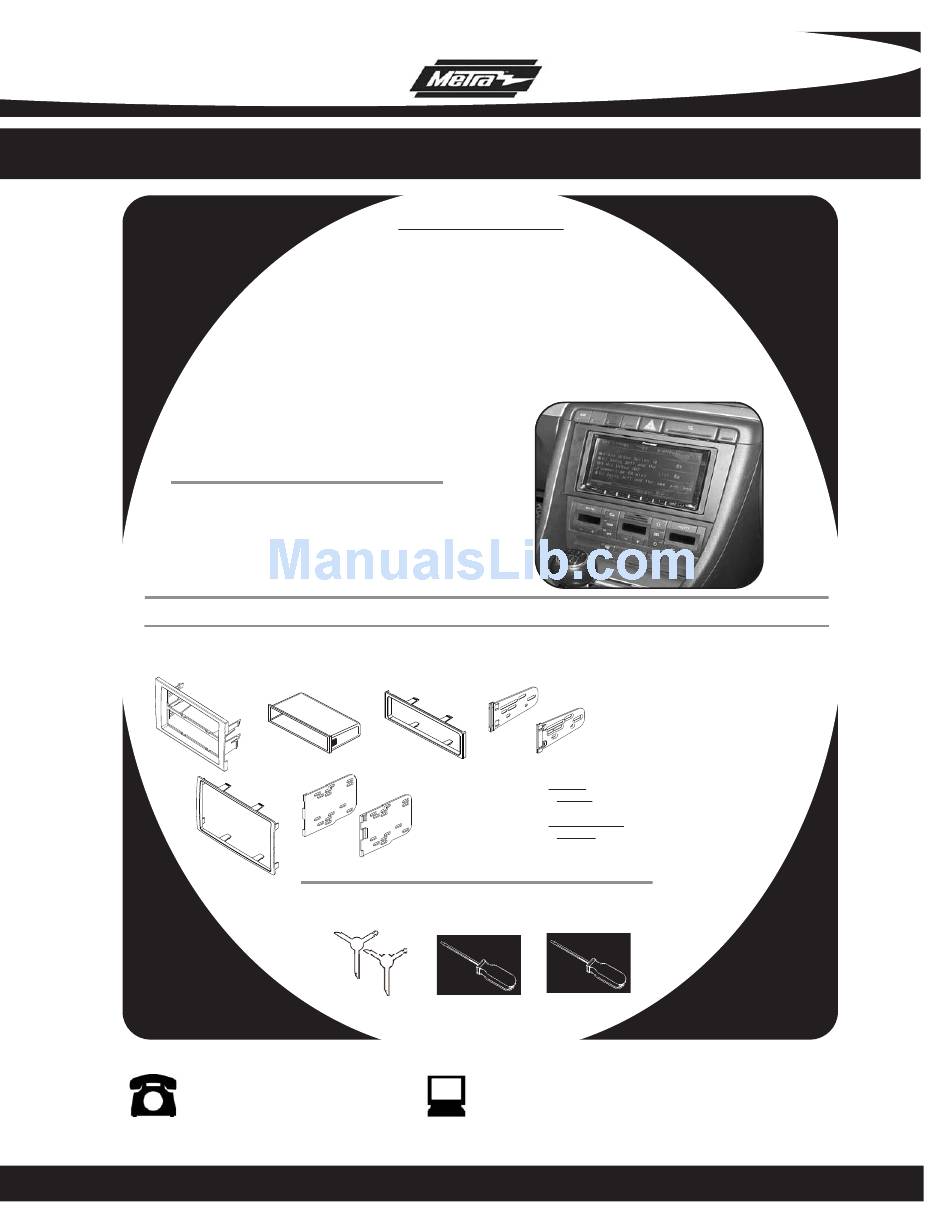

INSTALLATION INSTRUCTIONS FOR PART 99-9107B
99-9107B
KIT FEATURES
• DIN Head Unit Provision with Pocket
• ISO DIN Head Unit Provision with Pocket
• Double DIN Head Unit Provision
• Painted Matte Black to Match Factory
KIT COMPONENTS
• A) Radio Housing • B) Pocket • C) Trim Plate • D) ISO Brackets • E) Double DIN Trim Plate
• F) Double DIN Brackets
A
B
E
• (2) 86-9001 Head Unit Removal Tools • Small Flat Blade Screwdriver • Phillips Screwdriver
1-800-221-0932
© COPYRIGHT 2004-09 METRA ELECTRONICS CORPORATION
APPLICATIONS
Audi A4 / S4
2002-2008
(With Symphony Radio)
C
F
TOOLS REQUIRED:
www.metraonline.com
D
WIRING AND ANTENNA CONNECTIONS (Sold Separately)
Harness:
• 70-1787 - VW / Audi Harness 1993-up
Antenna Adapter:
• 40-VW10 - Euro Antenna Adapter 1986-up
