INSTALLATION INSTRUCTIONS FOR PART 99-9104
99-9104
KIT FEATURES
• DIN Head Unit Provision With Removable Pocket
KIT COMPONENTS
A) Radio Housing
B) Pocket
A
(2) 86-9001 Head unit removal tools I Small Flat Blade Screwdriver
1-800-221-0932
© COPYRIGHT 2004-2010 METRA ELECTRONICS CORPORATION
APPLICATIONS
AUDI A3
2006-2010
Harness & Antenna Connections (sold seperately)
• 40-VW10 - VW Antenna Adapter
B
TOOLS REQUIRED:
www.metraonline.com
Advertisement
Related Manuals for Metra Electronics 99-9104
Summary of Contents for Metra Electronics 99-9104

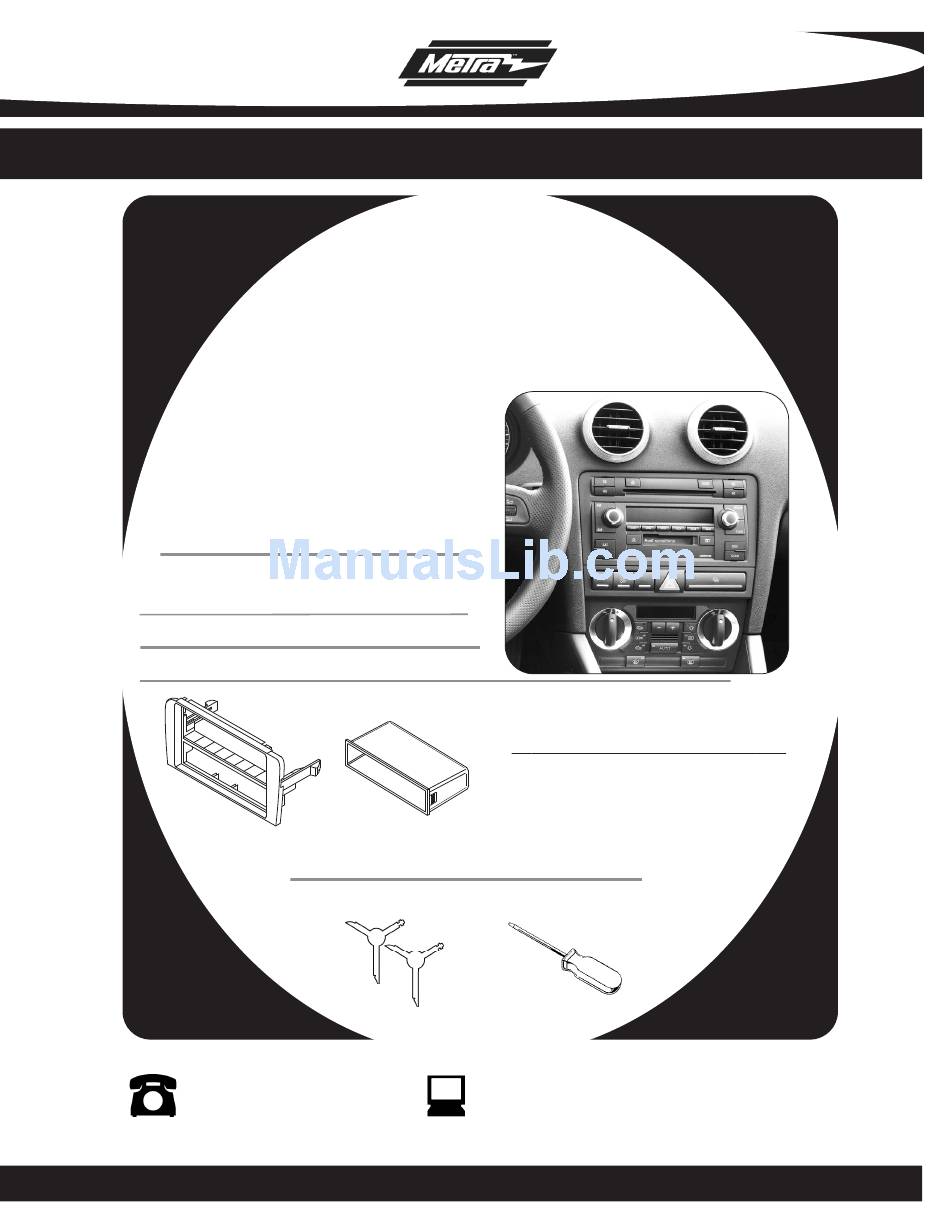

- Page 1 INSTALLATION INSTRUCTIONS FOR PART 99-9104 99-9104 KIT FEATURES • DIN Head Unit Provision With Removable Pocket KIT COMPONENTS A) Radio Housing B) Pocket (2) 86-9001 Head unit removal tools I Small Flat Blade Screwdriver 1-800-221-0932 © COPYRIGHT 2004-2010 METRA ELECTRONICS CORPORATION...
