Metra 95-8902 Manual

Table of Contents

Contents

1 KIT FEATURES
2 KIT COMPONENTS
3 WIRING & ANTENNA CONNECTIONS
4 TOOLS REQUIRED
5 Dash Disassembly
6 Kit Assembly
7 Documents / Resources
- 7.1 References
- 7.2 Download manual

KIT FEATURES

Double DIN radio provision

KIT COMPONENTS

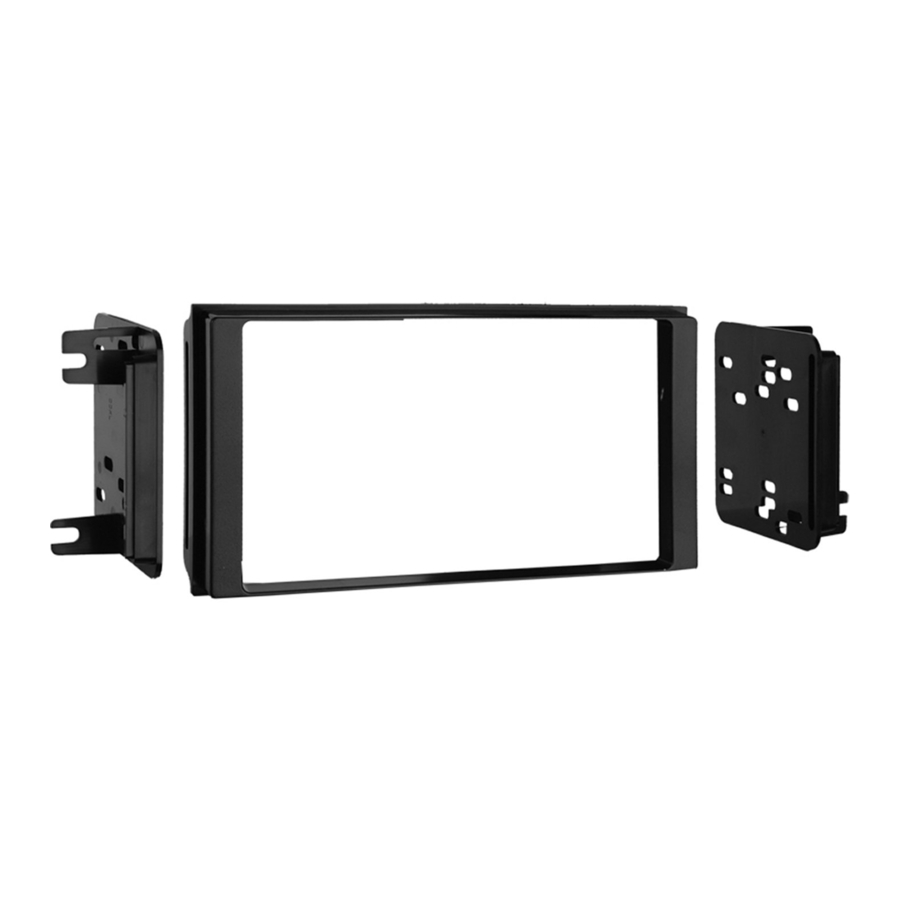

Radio housing
Double DIN brackets

WIRING & ANTENNA CONNECTIONS

(sold separately)

Wiring Harness:

70-7552 - Nissan/Subaru 2007-up
70-8902 - Subaru 2012-up amp interface
70-8901 - Subaru 1990-up

Antenna Adapter:

40-SB10 - Subaru antenna adapter 2005-up

TOOLS REQUIRED

Small flat blade screwdriver
Panel removal tool
Phillips screwdriver

Metra recommends disconnecting the negative battery terminal before beginning any installation. All accessories, switches, and especially air bag indicator lights must be plugged in before reconnecting the battery or cycling the ignition.

NOTE: Refer to the instructions included with the aftermarket radio.

Dash Disassembly

Subaru Forester (with DVD based NAV) 2009-2013/Forester 2009-2013/Impreza WRX 2013-up/Impreza WRX STI 2008-2012/Subaru Impreza 2008-2011

Unclip and remove the trim panel surrounding the factory radio including the A/C vents. (Figure A)
Remove (4) Phillips screws securing the radio. Unplug and remove the radio. (Figure B)

Continue to kit preparation

Kit Assembly

Double DIN radio provision

Snap the double DIN brackets to the inside edge of the radio housing. (Figure A)
Slide the double DIN radio into the bracket/radio housing assembly and secure the radio to the assembly using the screws supplied with the radio. (Figure B)
Locate the factory wiring harness in the dash. Metra recommends using the proper mating adapter from Metra or AXXESS. Re-connect the negative battery terminal and test the radio for proper operation.
Reassemble dash in reverse order of disassembly.

KNOWLEDGE IS POWER
Enhance your installation and fabrication skills by enrolling in the most recognized and respected mobile electronics school in our industry. Log onto www.installerinstitute.com or call 800-354-6782 for more information and take steps toward a better tomorrow.

1-800-221-0932
metraonline.com
