Metra Electronics METRA 99-7603 Installation Instructions Manual

Dash kit for nissan versa 2007-2011
Hide thumbs

Advertisement

Quick Links

Download this manual

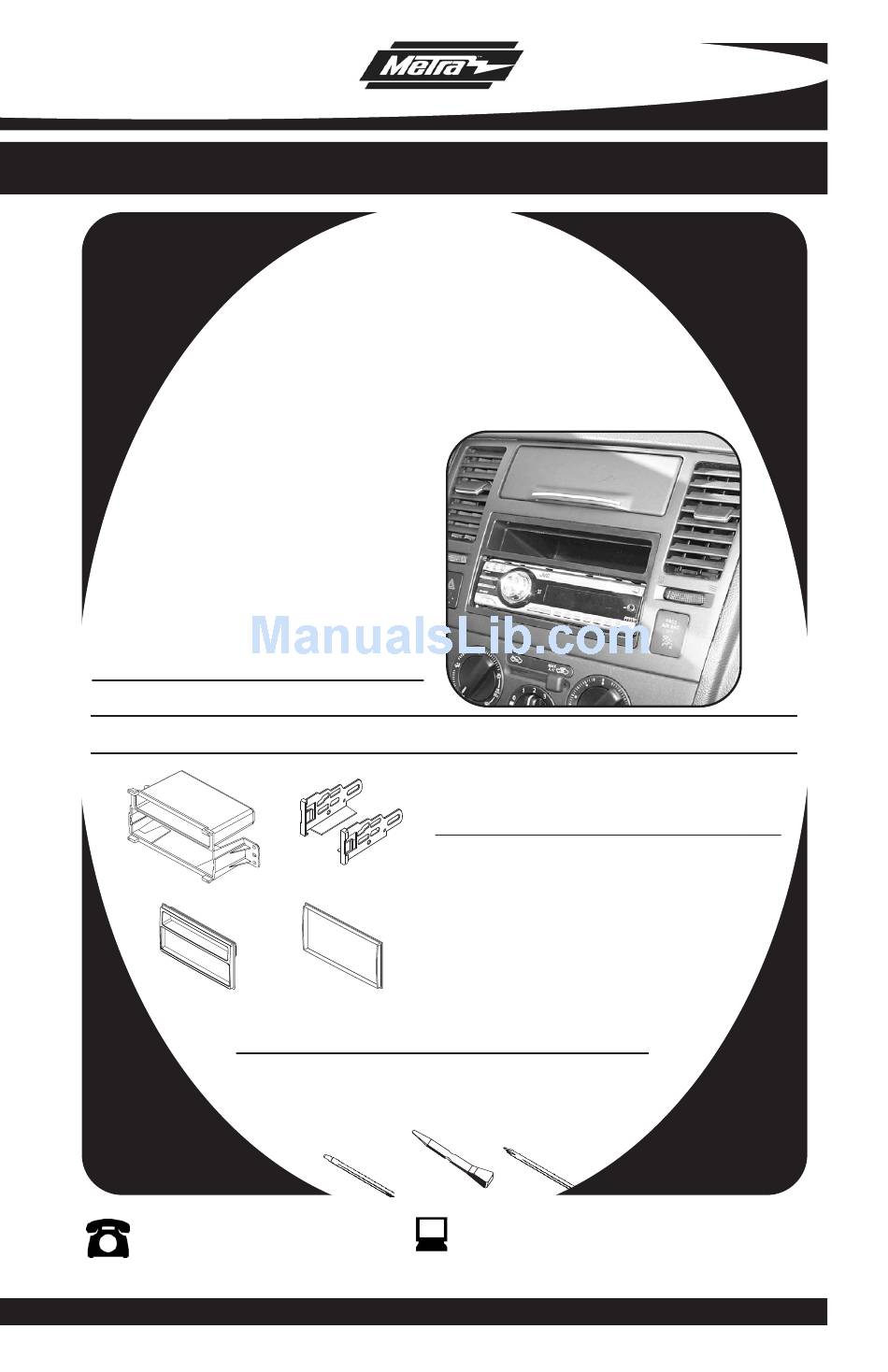

INSTALLATION INSTRUCTIONS FOR PART 99-7603
99-7603
KIT FEATURES
• DIN Mount Radio Provision with Pocket
• ISO Mount Radio Provision with Pocket
• Double DIN Mount Radio Provision
• Stacked ISO Mount Units Provision
KIT COMPONENTS
A) Radio Housing • B) ISO Brackets • C) Trim Plate • D) Double DIN Trim Plate
A
D
C
Small Flat Blade Screwdriver/ Panel Removal Tool
1-800-221-0932
© COPYRIGHT 2010 METRA ELECTRONICS CORPORATION
APPLICATIONS
Nissan Versa
2007-2011
Harness & Antenna Connections (sold separately)
• 70--7552 - Nissan Harness 07-up
B
• 40-NI12 - Nissan Adapter 07-up
TOOLS REQUIRED:
• Phillips Screwdriver
www.metraonline.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the METRA 99-7603 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Metra Electronics METRA 99-7603

Summary of Contents for Metra Electronics METRA 99-7603

  • Page 1 • Double DIN Mount Radio Provision • Stacked ISO Mount Units Provision KIT COMPONENTS A) Radio Housing • B) ISO Brackets • C) Trim Plate • D) Double DIN Trim Plate Small Flat Blade Screwdriver/ Panel Removal Tool 1-800-221-0932 © COPYRIGHT 2010 METRA ELECTRONICS CORPORATION...

  • Page 2: Table Of Contents

    - ISO Mount Radio Provision with Pocket......4 - Double DIN Mount Radio Provision ......5 - Stacked ISO Units Provision .

  • Page 3: Nissan Versa 2007-2011

    Unclip and remove the panel above the radio. (Figure A,B) Remove (2) Phillips screws securing the radio trim panel then unclip and remove the entire panel surrounding the radio and a/c controls. (Figure C) 99-7603 DASH DISASSEMBLY...
  • Page 4 Remove (4) Phillips screws securing radio, unplug and remove radio. (Figure D) Remove (4) Phillips screws securing each bracket to factory radio. (Retain these brackets to be re-used during double DIN or stacked ISO kit assem- bly.) (Figure E) Continue to kit assembly.

  • Page 5: Din Mount Radio Provision With Pocket

    DIN MOUNT RADIO PROVISION Note: Refer also to the instructions included with the aftermarket radio. Note: You will need to remove the aftermarket radio’s trim ring if equipped. Slide the DIN cage into the Radio Housing and secure by bending the metal locking tabs outward.

  • Page 6: Iso Mount Radio Provision With Pocket

    ISO MOUNT RADIO PROVISION Note: Refer also to the instructions included with the aftermarket radio. Note: The following modification will need to be made to both ISO brackets when using the ISO mount radio provision. Cut or trim the area shown from the ISO (Figure A) bracket.

  • Page 7: Double Din Mount Radio Provision

    DOUBLE DIN MOUNT RADIO PROVISION Note: Refer also to the instructions included with the aftermarket radio. Mount the factory brackets (removed from factory radio during disassembly) to the sides of the double DIN radio using screws supplied with the double DIN radio.

  • Page 8: Stacked Iso Units Provision

    STACKED ISO UNITS PROVISION Note: Refer also to the instructions included with the aftermarket radio. Mount the factory brackets (removed from factory radio during disassembly) to the sides of the stacked ISO units using screws supplied with the ISO units. (Figure A) Place the double DIN trim plate on the front of the stacked ISO units.

  • Page 9: Final Assembly

    Dimmer ....Orange / White *NOTE: When a Black wire is not present, ground radio to vehicle chassis. All colors may not be present on all leads due to manufacturer’s specifications.
  • Page 10 99-7603 NOTES...
  • Page 11 99-7603 NOTES...
  • Page 12 ------------------ ... ---------------- 99-7603 INSTRUCTIONS 1-800-221-0932 www.metraonline.com REV. 10/06/10 © COPYRIGHT 2004-2010 METRA ELECTRONICS CORPORATION INST99-7603...
