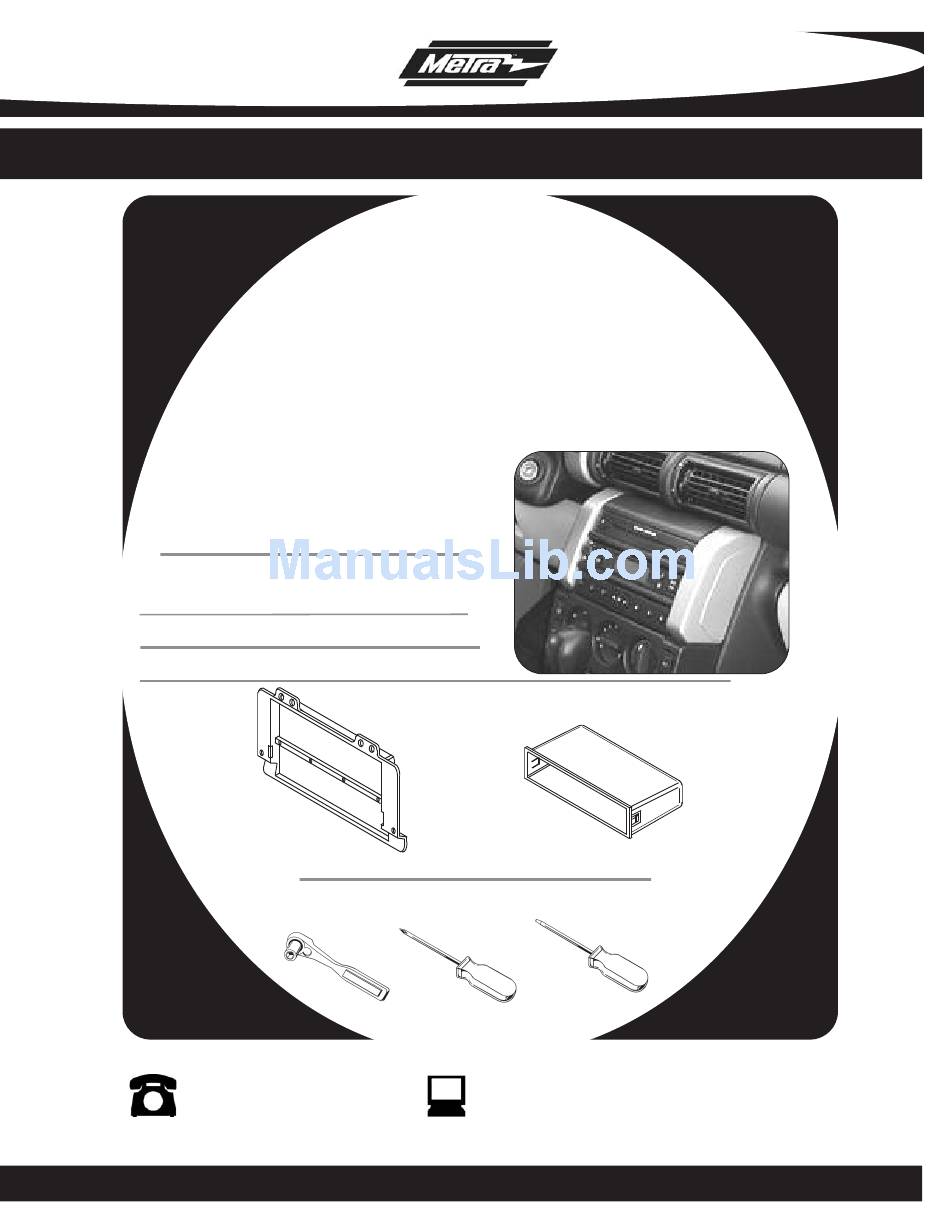

INSTALLATION INSTRUCTIONS FOR PART 99-9401
APPLICATIONS
2004-2006 Land Rover Freelander
99-9401
KIT FEATURES
• DIN Head Unit Provision With Removable Pocket
KIT COMPONENTS
A) Radio Housing
B) Pocket
A
B
TOOLS REQUIRED:
Socket Wrench • Phillips Screwdriver • Small Flat Blade Screwdriver
1-800-221-0932
www.metraonline.com
© COPYRIGHT 2004-2007 METRA ELECTRONICS CORPORATION
Advertisement
Table of Contents
Related Manuals for Metra Electronics 99-9401
Summary of Contents for Metra Electronics 99-9401
- Page 1 INSTALLATION INSTRUCTIONS FOR PART 99-9401 APPLICATIONS 2004-2006 Land Rover Freelander 99-9401 KIT FEATURES • DIN Head Unit Provision With Removable Pocket KIT COMPONENTS A) Radio Housing B) Pocket TOOLS REQUIRED: Socket Wrench • Phillips Screwdriver • Small Flat Blade Screwdriver 1-800-221-0932 www.metraonline.com...
- Page 2 99-9401 T ABLE OF CONTENTS Dash Disassembly ........1,2 Kit Assembly .
- Page 3 99-9401 2004-2006 LAND ROVER FREELANDER Disconnect the negative battery terminal to prevent an accidental short circuit. Put gear shifter into neutral position then remove shift knob. (Figure A) Unclip and remove gear shifter trim panel. (Figure B) Unclip and remove rear ashtray panel from back of center console.
- Page 4 99-9401 2004-2006 LAND ROVER FREELANDER Remove the (2) screws securing the rear of the center console. (Figure E) Remove the screw cover in front of the window switches then remove the (2) screws exposed underneath. (Figure F) Unclip and remove the upper console finisher panel between the a/c vents and radio..
- Page 5 99-9401 2004-2006 LAND ROVER FREELANDER DIN HEAD UNIT PROVISION Slide the DIN cage into the Radio Housing and secure by bending the metal locking tabs down. (Figure A) Slide the aftermarket head unit into the DIN cage until secure. (Figure B) Slide the included pocket into the Radio Housing until secure.
- Page 6 99-9401 FINAL ASSEMBL Y Locate the factory wiring harness in the dash. Metra recommends using the proper mating adapter and making connections as shown. (Isolate and individually tape off the ends of any unused wires to prevent electrical short circuit.) Re-connect the negative battery terminal and test the unit for proper operation.
- Page 7 99-9401 NOTES...
- Page 8 99-9401 INSTRUCTIONS 1-800-221-0932 www.metraonline.com REV. 06/19/07 © COPYRIGHT 2004 METRA ELECTRONICS CORPORATION INST99-9401...
