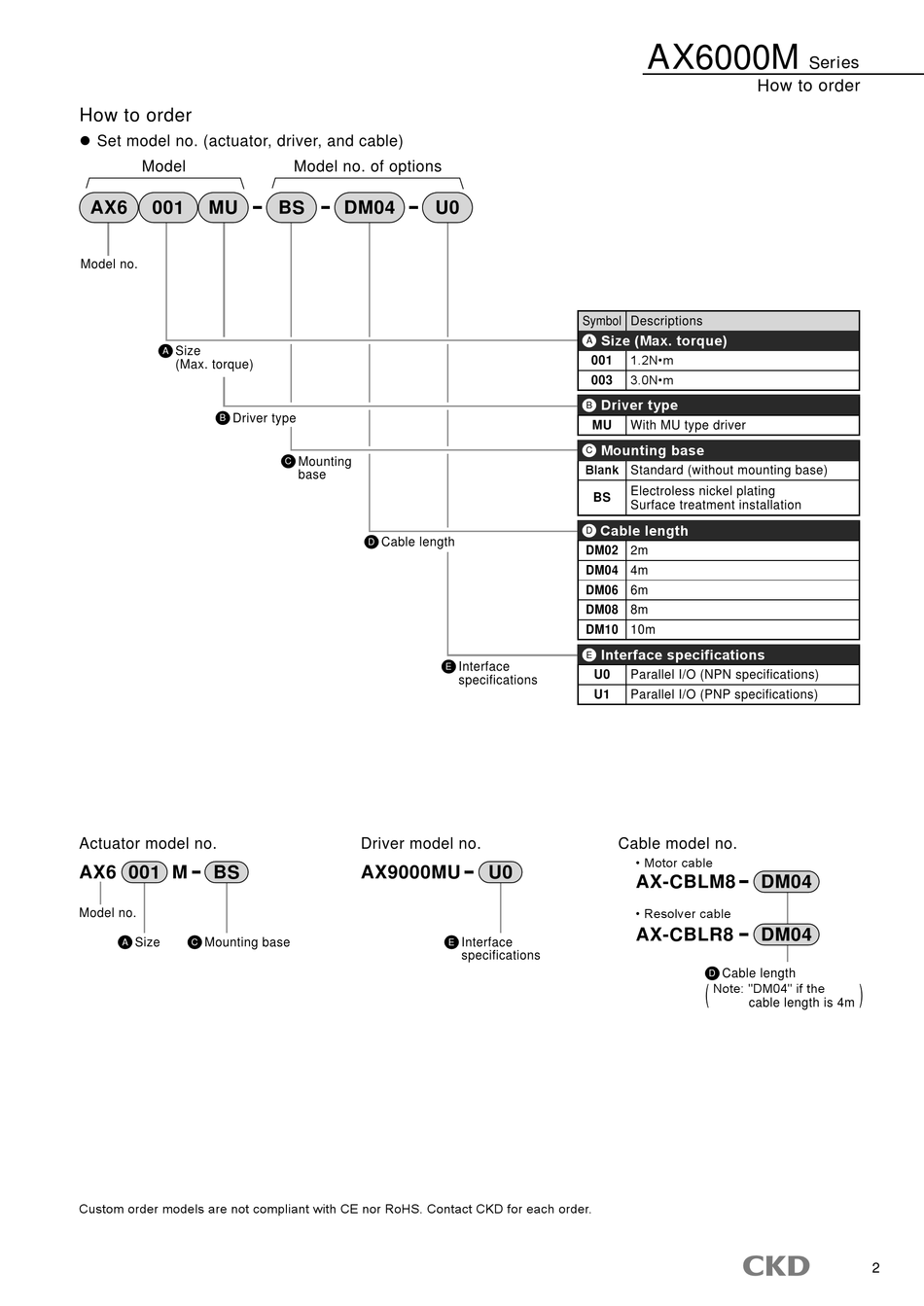

How To Order - CKD ABSODEX MINI AX6000M Series Manual

How to order

 Set model no. (actuator, driver, and cable)
Model
AX6 001 MU
Model no.
Size
A
(Max. torque)
Driver type
B
Actuator model no.
AX6 001 M BS
Model no.
Size Mounting base
A C
Custom order models are not compliant with CE nor RoHS. Contact CKD for each order.
Model no. of options
BS DM04 U0
Mounting
C
base
Cable length
D
E
Driver model no.
AX9000MU
E
Symbol Descriptions
Size (Max. torque)
A
1.2N•m
001
3.0N•m
003
Driver type
B
With MU type driver
MU
Mounting base
C
Blank Standard (without mounting base)
Electroless nickel plating
BS
Surface treatment installation
Cable length
D
DM02 2m
DM04 4m
DM06 6m
DM08 8m
DM10 10m
Interface specifications
E
Interface
Parallel I/O (NPN specifications)
U0
specifications
Parallel I/O (PNP specifications)
U1
Cable model no.
U0
Interface
specifications
AX6000M
Series
How to order
• Motor cable
AX-CBLM8 DM04
• Resolver cable
AX-CBLR8 DM04
Cable length
D
(
Note: "DM04" if the
cable length is 4m
)
