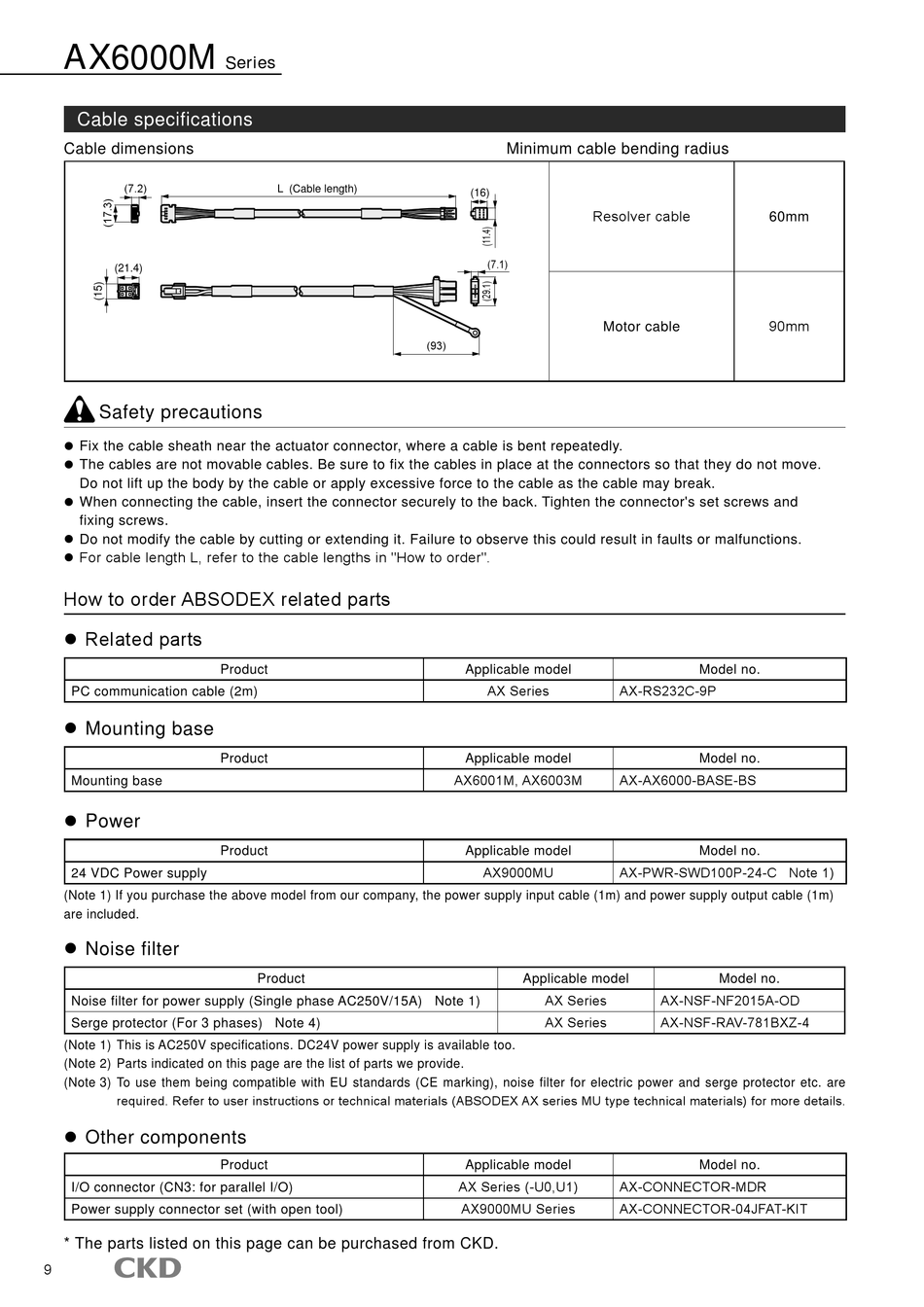

AX6000M
Cable specifications
Cable dimensions
(7.2)
(21.4)
Safety precautions
 Fix the cable sheath near the actuator connector, where a cable is bent repeatedly.
 The cables are not movable cables. Be sure to fix the cables in place at the connectors so that they do not move.
Do not lift up the body by the cable or apply excessive force to the cable as the cable may break.
 When connecting the cable, insert the connector securely to the back. Tighten the connector's set screws and
fixing screws.
 Do not modify the cable by cutting or extending it. Failure to observe this could result in faults or malfunctions.
 For cable length L, refer to the cable lengths in "How to order".
How to order ABSODEX related parts
 Related parts
PC communication cable (2m)
 Mounting base
Mounting base
 Power
24 VDC Power supply
(Note 1) If you purchase the above model from our company, the power supply input cable (1m) and power supply output cable (1m)
are included.
 Noise filter
Noise filter for power supply (Single phase AC250V/15A) Note 1)
Serge protector (For 3 phases) Note 4)
(Note 1) This is AC250V specifications. DC24V power supply is available too.
(Note 2) Parts indicated on this page are the list of parts we provide.
(Note 3) To use them being compatible with EU standards (CE marking), noise filter for electric power and serge protector etc. are
required. Refer to user instructions or technical materials (ABSODEX AX series MU type technical materials) for more details.
 Other components
I/O connector (CN3: for parallel I/O)
Power supply connector set (with open tool)
* The parts listed on this page can be purchased from CKD.
9
Series
L (Cable length)
Product
Product
Product
Product
Product
Minimum cable bending radius
(16)
Resolver cable
(7.1)
(93)
Applicable model
AX Series
Applicable model
AX6001M, AX6003M
Applicable model
AX9000MU
Applicable model
AX Series
AX Series
Applicable model
AX Series (-U0,U1)
AX9000MU Series
60mm
Motor cable 90mm
Model no.
AX-RS232C-9P
Model no.
AX-AX6000-BASE-BS
Model no.
AX-PWR-SWD100P-24-C Note 1)
Model no.
AX-NSF-NF2015A-OD
AX-NSF-RAV-781BXZ-4
Model no.
AX-CONNECTOR-MDR
AX-CONNECTOR-04JFAT-KIT
