CKD ABSODEX MINI AX6000M Series Manual page 11

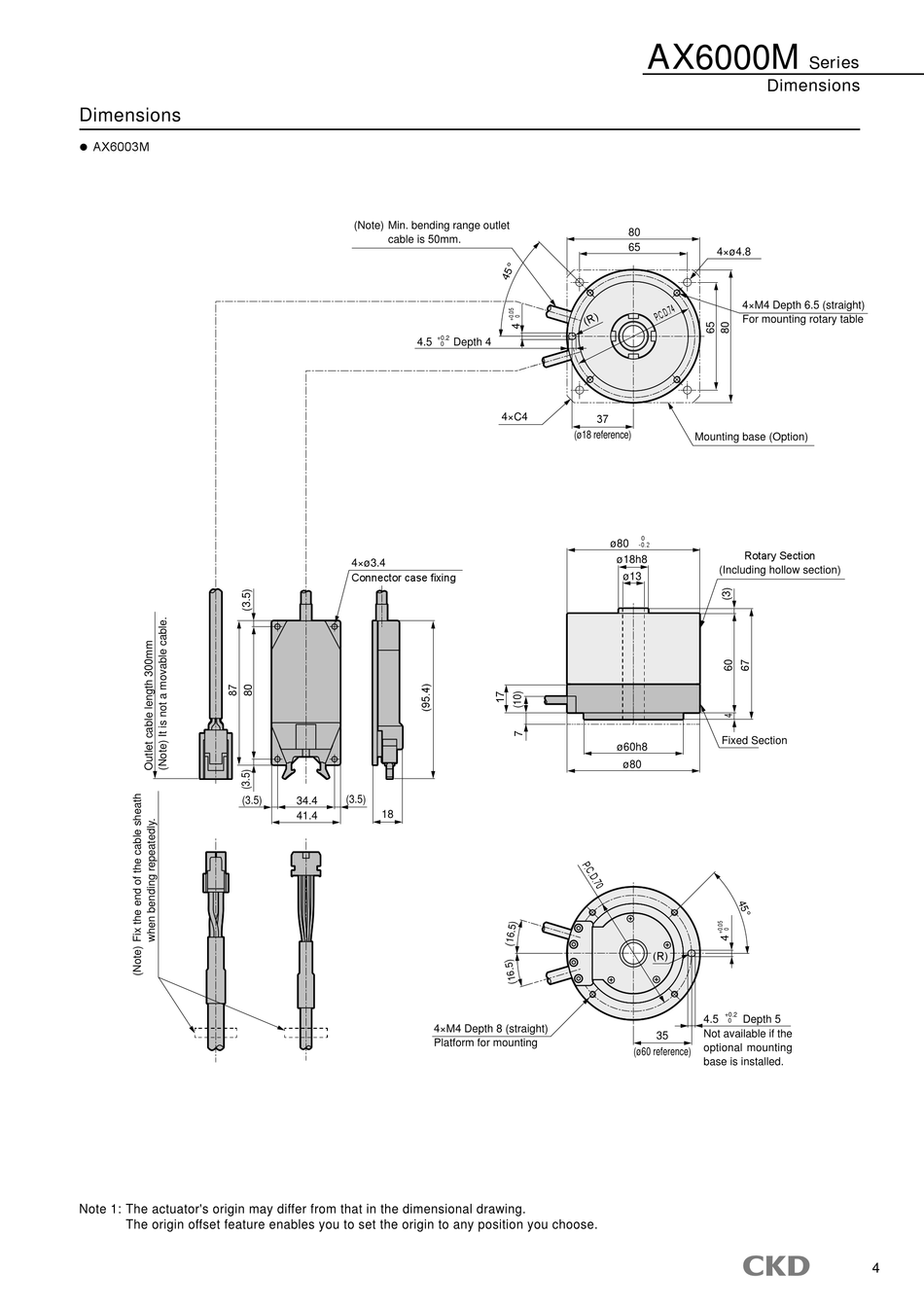

Dimensions
 AX6003M
(3.5)
Note 1: The actuator's origin may differ from that in the dimensional drawing.
The origin offset feature enables you to set the origin to any position you choose.
(Note) Min. bending range outlet
cable is 50mm.
+0.2
4.5 Depth 4
0
4×ø3.4
Connector case fixing
(3.5)
34.4
18
41.4
4×M4 Depth 8 (straight)
Platform for mounting
AX6000M
80
65
4×C4
37
(ø18 reference)
0
ø80
-0.2
ø18h8
ø13
ø60h8
ø80
(R)
35
(ø60 reference)
Series
Dimensions
4×ø4.8
4×M4 Depth 6.5 (straight)
For mounting rotary table
Mounting base (Option)
Rotary Section
(Including hollow section)
Fixed Section
+0.2
4.5 Depth 5
0
Not available if the
optional mounting
base is installed.
4
