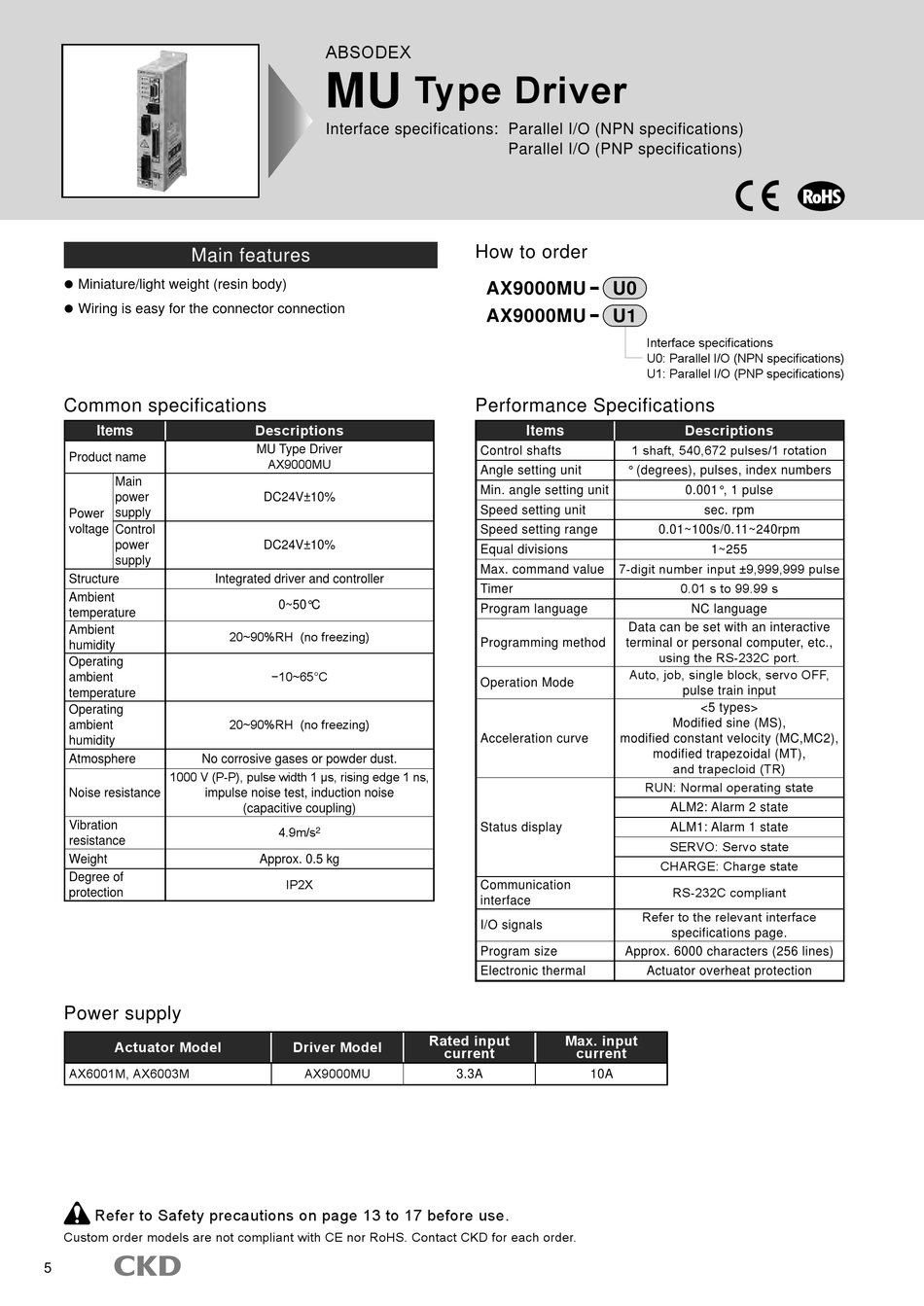

CKD ABSODEX MINI AX6000M Series Manual page 12

Main features
 Miniature/light weight (resin body)
 Wiring is easy for the connector connection
Common specifications
Items
Product name
Main
power
Power supply
voltage
Control
power
supply
Structure Integrated driver and controller
Ambient
temperature
Ambient
humidity
Operating
ambient
temperature
Operating
ambient
humidity
Atmosphere No corrosive gases or powder dust.
1000 V (P-P), pulse width 1 μs, rising edge 1 ns,
Noise resistance impulse noise test, induction noise
Vibration
resistance
Weight
Degree of
protection
Power supply
Actuator Model
AX6001M, AX6003M
Refer to Safety precautions on page 13 to 17 before use.
Custom order models are not compliant with CE nor RoHS. Contact CKD for each order.
5
ABSODEX
MU
Interface specifications: Parallel I/O (NPN specifications)
Descriptions
MU Type Driver
AX9000MU
DC24V±10%
DC24V±10%
0~50°C
20~90%RH (no freezing)
−10~65°C
20~90%RH (no freezing)
(capacitive coupling)
4.9m/s 2
Approx. 0.5 kg
IP2X
Driver Model
AX9000MU
Type Driver
Parallel I/O (PNP specifications)
How to order
AX9000MU
AX9000MU
Performance Specifications
Items
Control shafts
Angle setting unit
Min. angle setting unit
Speed setting unit
Speed setting range
Equal divisions
Max. command value
Timer
Program language
Programming method
Operation Mode
Acceleration curve
Status display
Communication
interface
I/O signals
Program size
Electronic thermal
Rated input Max. input
current current
3.3A
U0
U1
Interface specifications
U0: Parallel I/O (NPN specifications)
U1: Parallel I/O (PNP specifications)
Descriptions
1 shaft, 540,672 pulses/1 rotation
° (degrees), pulses, index numbers
0.001°, 1 pulse
sec. rpm
0.01~100s/0.11~240rpm
1~255
7-digit number input ±9,999,999 pulse
0.01 s to 99.99 s
NC language
Data can be set with an interactive
terminal or personal computer, etc.,
using the RS-232C port.
Auto, job, single block, servo OFF,
pulse train input
<5 types>
Modified sine (MS),
modified constant velocity (MC,MC2),
modified trapezoidal (MT),
and trapecloid (TR)
RUN: Normal operating state
ALM2: Alarm 2 state
ALM1: Alarm 1 state
SERVO: Servo state
CHARGE: Charge state
RS-232C compliant
Refer to the relevant interface
specifications page.
Approx. 6000 characters (256 lines)
Actuator overheat protection
10A
