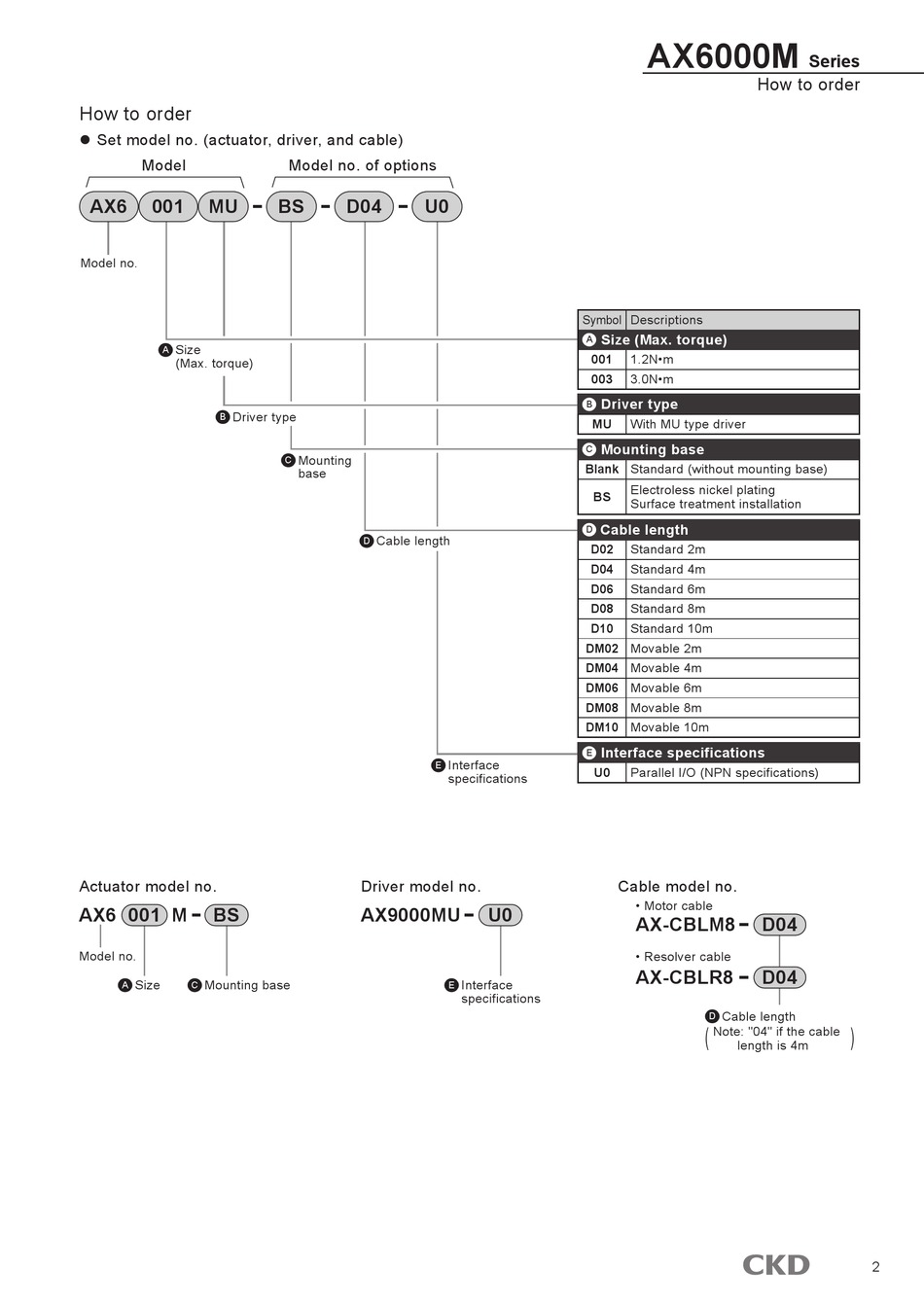

How to order

 Set model no. (actuator, driver, and cable)
Model
AX6 001 MU
Model no.
Size
A
(Max. torque)
Driver type
B
Actuator model no.
AX6 001 M BS
Model no.
Size Mounting base
A C
Model no. of options
BS D04 U0
Mounting
C
base
Cable length
D
Interface
E
specifications
Driver model no.
AX9000MU
E
Symbol Descriptions
Size (Max. torque)
A
001 1.2N•m
003 3.0N•m
Driver type
B
MU With MU type driver
Mounting base
C
Blank Standard (without mounting base)
Electroless nickel plating
BS
Surface treatment installation
Cable length
D
D02
Standard 2m
D04 Standard 4m
D06 Standard 6m
D08 Standard 8m
D10 Standard 10m
DM02 Movable 2m
DM04 Movable 4m
DM06 Movable 6m
DM08 Movable 8m
DM10 Movable 10m
Interface specifications
E
U0 Parallel I/O (NPN specifications)
Cable model no.
• Motor cable
U0
AX-CBLM8
• Resolver cable
AX-CBLR8
Interface
specifications
AX6000M
Series
How to order
D04
D04
Cable length
D
(
Note: "04" if the cable
length is 4m
)
