INSTALLING THE SOFTWARE
Before starting the software installation, make sure that the
ADP8860 adapter board is not connected to the USB port
of the PC.
Note: If the PC has LabVIEW™ already installed, this following
step is not needed.
The application software is a compiled LabVIEW program requir-
ing that the LabVIEW 8.5, or later version, run-time engine be
installed on the PC. You can download the LabVIEW run-time
engine on National Instrument's website. A LabVIEW 8.5 run-
time installation is available in the ADP8860 installation CD.
After installation, it may be necessary to reboot the PC to
complete the operation.

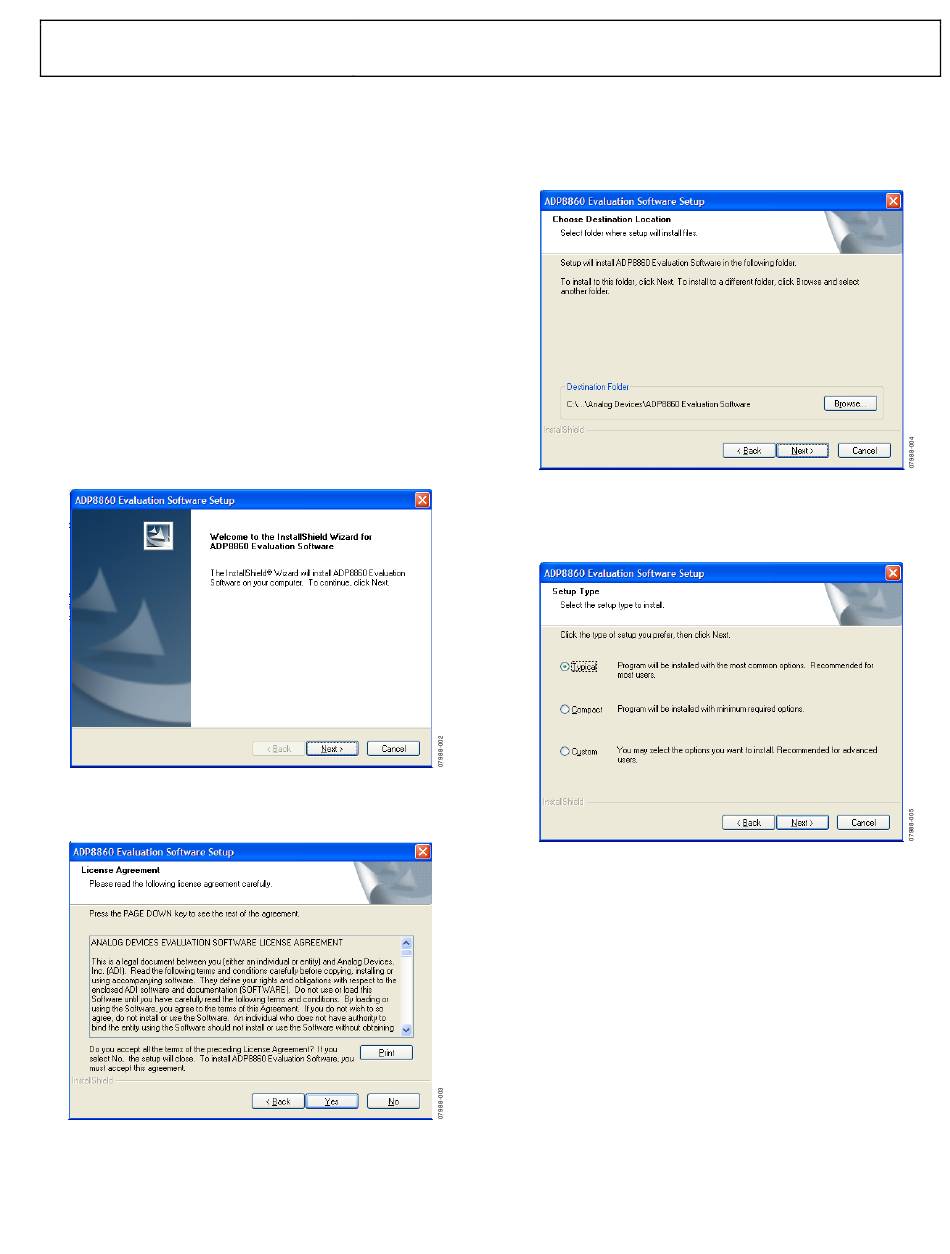

1.
Launch the Setup.exe file. When the dialog box shown
in Figure 2 appears, click Next> to continue.
Figure 2. ADP8860 Evaluation Software Setup
2.
Click Yes to accept the license agreement (see Figure 3).
Figure 3. License Agreement
3.
Click Next> to install the files to the default destination folder
or click Browse... to choose a different file (see Figure 4).
4.
Select the Typical set up type and click Next> to continue
with the installation (see Figure 5).
Rev. 0 | Page 3 of 24
EVAL-ADP8860
Figure 4. Choose Destination Location
Figure 5. Setup Type
