INSTALLING THE USB DRIVER
To install the USB driver, use the following steps:
1.
Plug the ADP8860 board into the computer using the
USB cable provided with the evaluation kit. When the
system recognizes the board, the dialog box shown in
Figure 8 appears.
2.
Click Next> to install the driver.

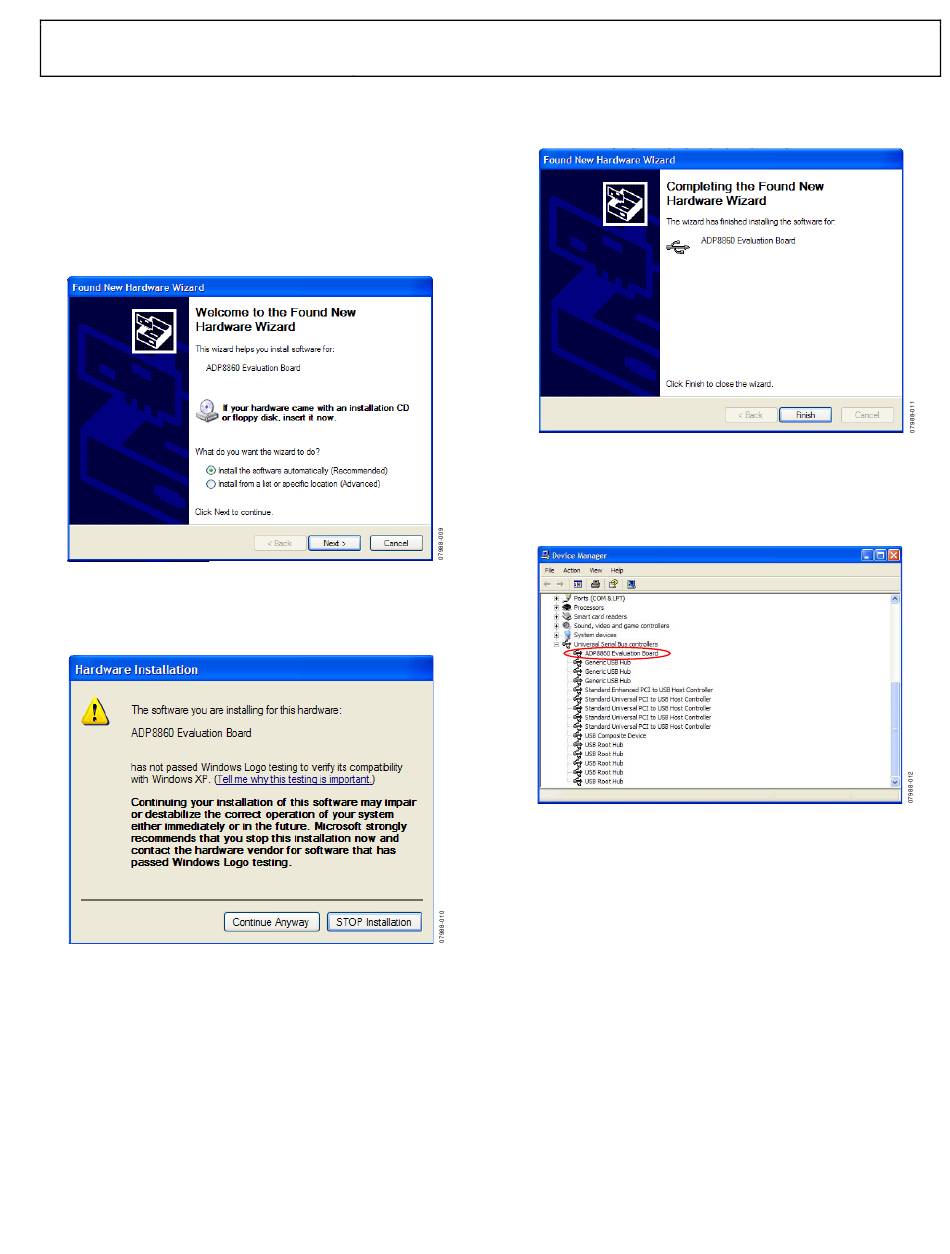

Figure 8. Found New Hardware Wizard
3.
When the dialog box in Figure 9 appears, click Continue
Anyway.
Figure 9. Hardware Installation
4.
Click Finish to complete the driver installation (see
Figure 10).
5.
To check that the USB driver is installed properly, press
Start. Then select Control Panel > System and open the
Device Manager (see Figure 11).
When the USB cable is connected to a PC port different from
the one used to install the driver, the PC device driver may
ask you to install the driver again for that specific port. If this
happens, repeat the first four steps listed in this section.
Rev. 0 | Page 5 of 24
EVAL-ADP8860
Figure 10. Driver Installation Complete
Figure 11. Check Driver Installation
