The VDDIO supply line determines the logic levels for nRST,
nINT, SDA, and SCL.
When shunted, Jumper J31 and Jumper J32 connect the Cypress
2
I C interface to the daughterboard, which is the default setting
for PC-to-adapter board communication. J31 and J32 must be
2
removed if the I C interface (master) is provided from the
target (J30) to avoid bus contention.
JP1 selects the Sink 7 usage mode. If JP1 is in the LED position,
Sink 7 is connected to the D15 LED and can be used as individ-
ual sink or as part of the backlight. If JP1 is in the KEYPD BL
position, Sink 7 is connected to the keyboard light LED block.
For demonstration purposes the adapter board contains two
LED lighting sections: the display backlight and the keypad
backlight. The former can be configured, through jumper
selection, to drive up to seven LEDs with up to 30 mA per LED.
The second LED section contains up to 10 LEDs with a jumper-
programmable current range. For example, D2 has two jumpers
associated with it: J6 and J7. D2 is disabled by removing both
jumpers. If only J6 is installed, D2 has a 100 Ω limiting (ballast)
resistor. If only J7 is installed, D2 has a 50 Ω limiting resistor. If
both jumpers are installed, the limiting resistor is the parallel of
two resistors or 33.3 Ω. The lower is the limiting resistor; the
higher is the driving capability per LED. The same applies for
all the other LEDs used for the keypad backlight.
It is possible to measure the total LEDs current by removing the
J1 and J2 jumpers and inserting a current meter across one of
the jumpers. Each LED current can be measured by removing
the individual LED selection (that is, J5 for D5, Sink 1 LED)
and inserting an ammeter. The ADP8860 input current can be
measured by removing Jumper LK6 in the daughterboard
and inserting a current meter across the jumper.
An external target hardware can be connected to the adapter
and daughterboard using a J30 connector. The signals available
are indicated in Figure 30.
CHARGE-PUMP OUTPUT VOLTAGE (VOUT)
BATTERY VOLTAGE SUPPLY (VBATT)
2
I C SERIAL DATA LINE (SDA)
2
I C SERIAL CLOCK LINE (SCL)
INTERRUPT OUTPUT (nINT)
LOGIC VOLTAGE LEVEL (VDDIO)
EXTERNAL PHOTOTRANSISTOR 1 (I_PHS1)
EXTERNAL PHOTOTRANSISTOR 2 (I_PHS2)
PHOTOTRANSISTOR SUPPLY VOLTAGE (+VS)
The target can either control the circuit in the adapter board or
be driven by the daughterboard, such as when the LEDs reside
on the target board. Also, I
direction. When the target provides the I
the J31 and J32 jumpers must be removed.
Rev. 0 | Page 15 of 24
EVAL-ADP8860
J30
1 2 SINK 1 – LED1 CATHODE
3 4 SINK 1 – LED1 ANODE
5 6 SINK 2 – LED2 CATHODE
7 8 SINK 2 – LED2 ANODE
9 10 SINK 3 – LED3 CATHODE
RESET INPUT (nRST) 11 12 SINK 3 – LED3 ANODE
13 14 SINK 4 – LED4 CATHODE
GROUND (GND) 15 16 SINK 4 – LED4 ANODE
17 18 SINK 5 – LED5 CATHODE
GROUND (GND) 19 20 SINK 5 – LED5 ANODE
21 22 SINK 6 – LED6 CATHODE
GROUND (GND) 23 24 SINK 6 – LED6 ANODE
25 26 SINK 7 – LED7 CATHODE
GROUND (GND) 27 28 SINK 7 – LED7 ANODE

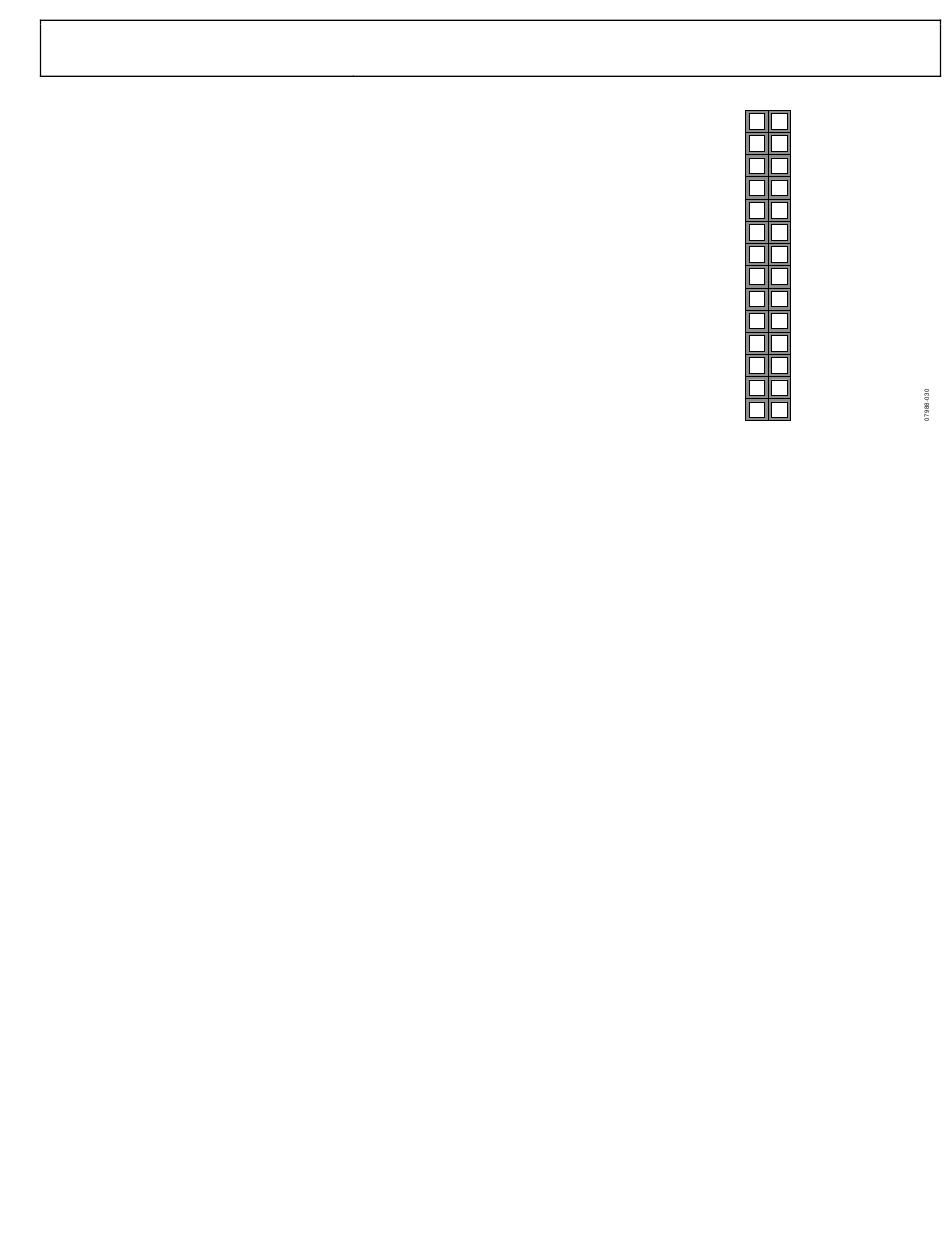

Figure 30. Target Connector J30
2
C commands can be sent in either
2
C interface, however,
