Compact Devices
8.2.1
Dimensions
8

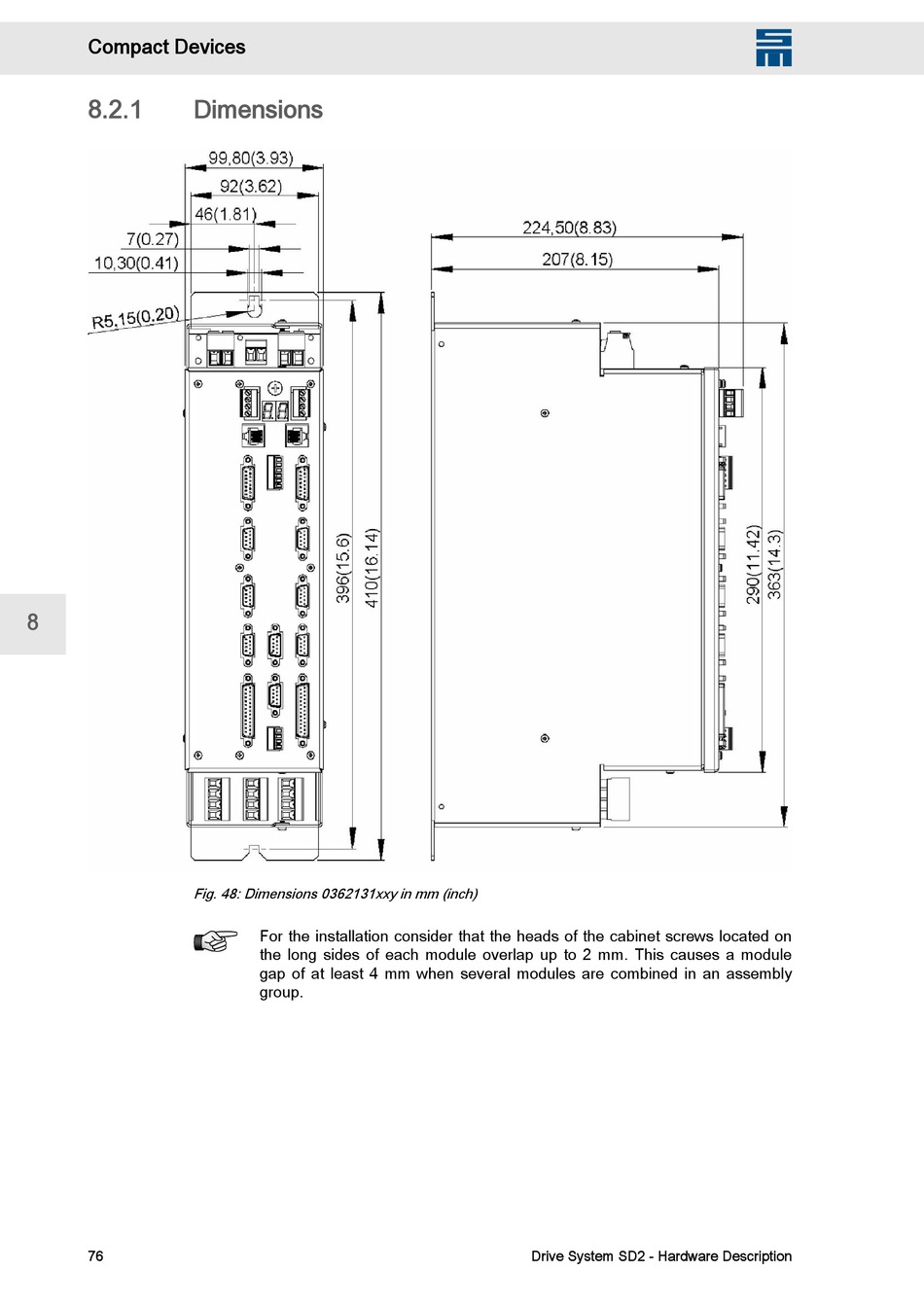

Fig. 48: Dimensions 0362131xxy in mm (inch)
76
For the installation consider that the heads of the cabinet screws located on
the long sides of each module overlap up to 2 mm. This causes a module
gap of at least 4 mm when several modules are combined in an assembly
group.
