Status Display and Error Messages of PS2
16.2

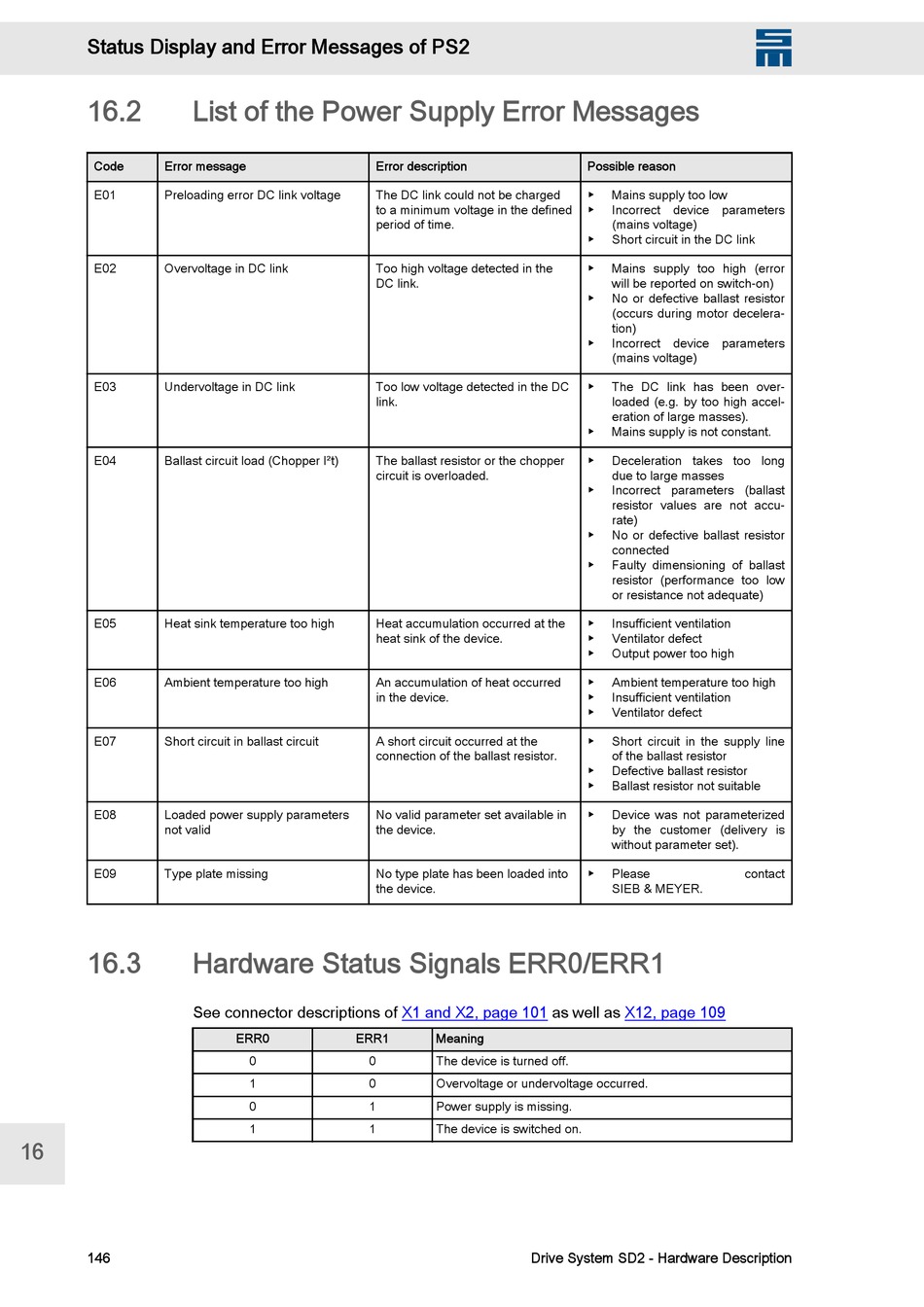

List of the Power Supply Error Messages

Code Error message
E01 Preloading error DC link voltage
E02 Overvoltage in DC link
E03 Undervoltage in DC link
E04 Ballast circuit load (Chopper I²t)
E05 Heat sink temperature too high
E06 Ambient temperature too high
E07 Short circuit in ballast circuit
E08 Loaded power supply parameters
not valid
E09 Type plate missing
16.3

Hardware Status Signals ERR0/ERR1

See connector descriptions of
16
146
Error description
The DC link could not be charged
to a minimum voltage in the defined
period of time.
Too high voltage detected in the
DC link.
Too low voltage detected in the DC
link.
The ballast resistor or the chopper
circuit is overloaded.
Heat accumulation occurred at the
heat sink of the device.
An accumulation of heat occurred
in the device.
A short circuit occurred at the
connection of the ballast resistor.
No valid parameter set available in
the device.
No type plate has been loaded into
the device.
X1 and X2, page 101
ERR0 ERR1
0 0
1 0
0 1
1 1
Possible reason
▶
▶
▶
▶
▶
▶
▶
▶
▶
▶
▶
▶
▶
▶
▶
▶
▶
▶
▶
▶
▶
▶
▶
as well as
Meaning
The device is turned off.
Overvoltage or undervoltage occurred.
Power supply is missing.
The device is switched on.
Drive System SD2 - Hardware Description
W
Mains supply too low
Incorrect device parameters
(mains voltage)
Short circuit in the DC link
Mains supply too high (error
will be reported on switch-on)
No or defective ballast resistor
(occurs during motor decelera‐
tion)
Incorrect device parameters
(mains voltage)
The DC link has been over‐
loaded (e.g. by too high accel‐
eration of large masses).
Mains supply is not constant.
Deceleration takes too long
due to large masses
Incorrect parameters (ballast
resistor values are not accu‐
rate)
No or defective ballast resistor
connected
Faulty dimensioning of ballast
resistor (performance too low
or resistance not adequate)
Insufficient ventilation
Ventilator defect
Output power too high
Ambient temperature too high
Insufficient ventilation
Ventilator defect
Short circuit in the supply line
of the ballast resistor
Defective ballast resistor
Ballast resistor not suitable
Device was not parameterized
by the customer (delivery is
without parameter set).
Please contact
SIEB & MEYER.
X12, page 109
